Coil hooks

Coil hooks are relatively inexpensive load-lifting devices for transporting coils. In many companies, this is still done using ropes and belts. When transporting material with coil hooks, the material does not become damaged as quickly and occupational safety for employees is also increased. Coil hooks from WIMO Hebetechnik are custom-designed for use in companies.

WIMO® coil hooks are high-quality products that are also designed for use in heavy-duty applications. Thanks to the rounded support strips, the coils are mounted and transported with extreme care. This saves money by preventing material damage. As the load centre is labelled, it is easier for the operator to mount the coil precisely at this point. In contrast to coil hooks from many other providers, the counterweight for WIMO® coil hooks is attached and welded to the hook block in a saddle shape – a very safe solution. The notch effect provides additional safety: The internal radii of WIMO® coil hooks are ground without notches. Handles make it easier for the operator to mount the coils. As they are screwed in place, they are quick to replace. WIMO® also supplies coil hooks with a patented adjustable prong pad for efficient separating of slit strips without accidents.



Features of WIMO® coil hook with bob weight
open

Features of WIMO® coil hook with bob weight

Specification with bob weight, tube segment supporting plate, 4/4 tine and interchangeable handles on both sides.

Your advantages:

  • Increased safety due to notch-free radii in the strong loaded zones and by saddled counterweight
  • Gentle transport of coils with sensitive surface through tube segment supporting plate
  • Individual solutions through customized design
  • Durable by design up to 600,000 load cycles
  • High-quality, proven technology through many years of experience
  • Testing and repair service directly from the manufacturer
  • Quality MADE IN GERMANY

Coil hook with bob weight
open

Coil hook with bob weight

Inner stop plate with plastic protective coating (changeable), to protect the end face of the coil when picking up and setting down the load.

Outside back protection with plastic protective coating (changeable), to protect coils lying next to it.

Bolt suspension with safety bolts to prevent unintentional unhooking of the crane hook during unloading.

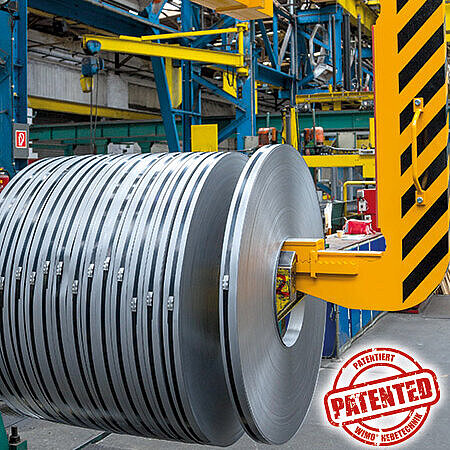

Coil hook with adjustable prong pad
open

Coil hook with adjustable prong pad

Coil hook with adjustable prong pad for an accident-free and efficient separation of slit strips.

Length of the spacer varies according to slit strip width.

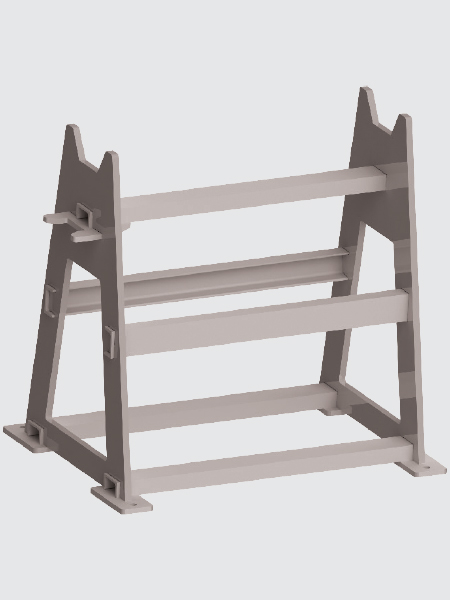

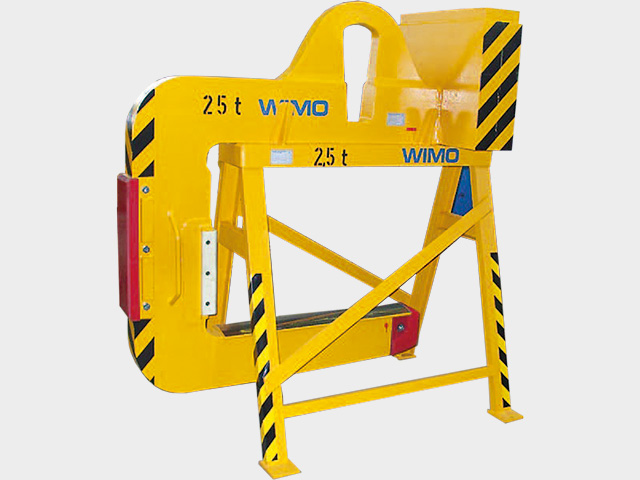

Stand
open

Stand

Coil hook with particulary small prong cross-section
open

Coil hook with particulary small prong cross-section

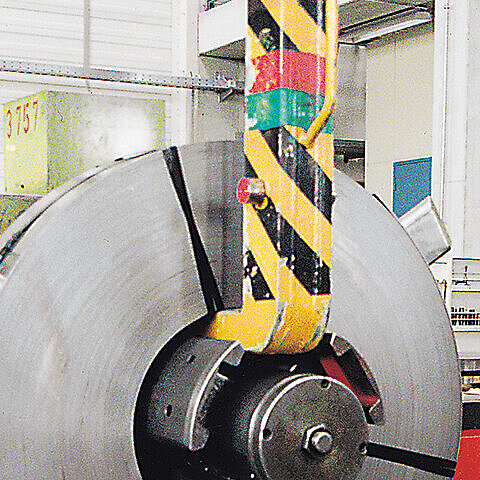

Coil hook for handling at the turnstile: The tight space conditions when entering a turnstile or reel make a special coil hook necessary. The coil hook is specially made for the dimensions of your turnstile/reel. To compensate for the small tine cross-section, the hook plate may be made of a special material.

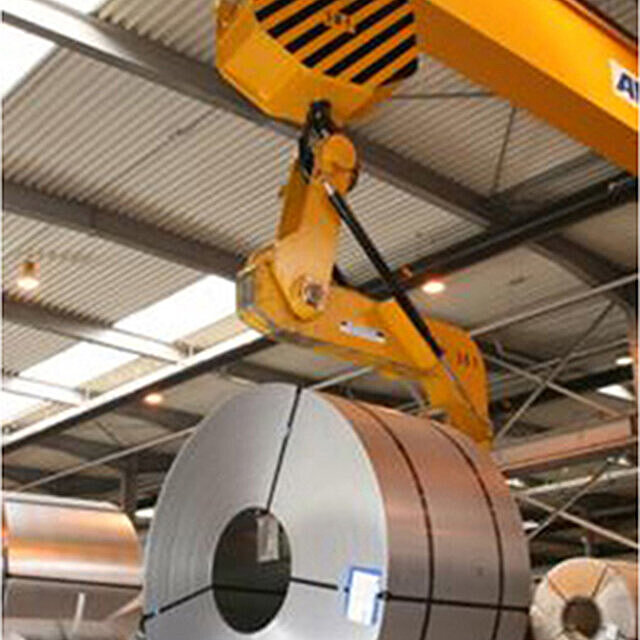

Spring-compensated coil hook
open

Spring-compensated coil hook

The suspension is spring-loaded.

  • Return of the suspension to the centre of gravity of the unloaded hook by means of gas springs.
  • Lower dead weight as no counterbalancing is required.
  • Space-saving coil storage as no interfering contours due to counterweight balancing

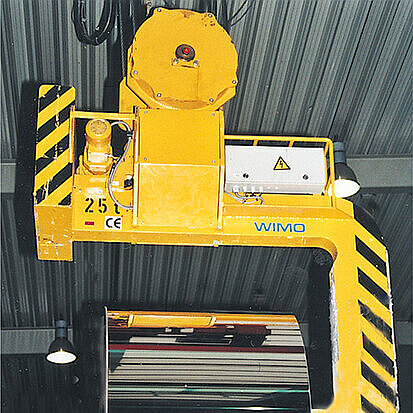

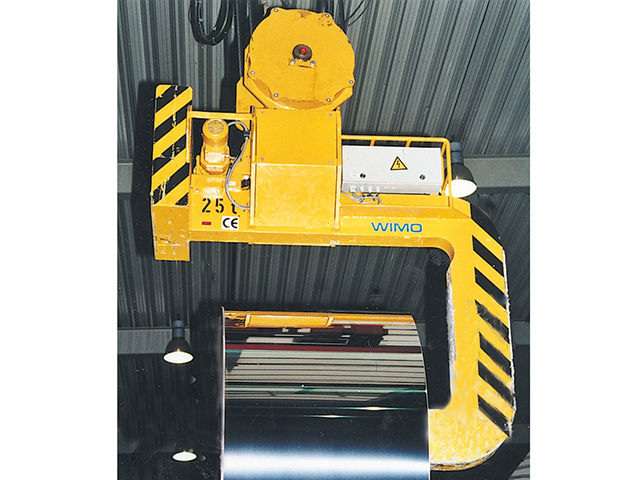

Coil hook with powered horizontal drive unit
open

Coil hook with powered horizontal drive unit

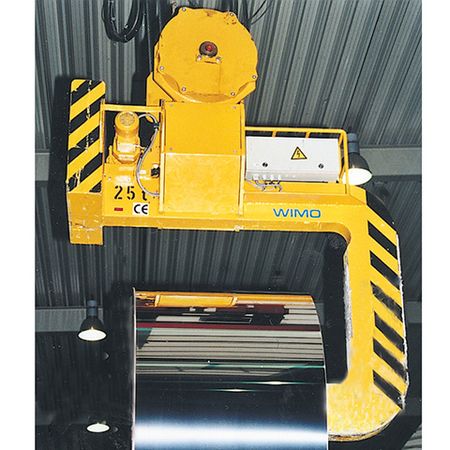

Coil hook with counterweigth, with 3/4 prong and electromotive slewing gear for easy rotation of the coil hook around the vertical axis.

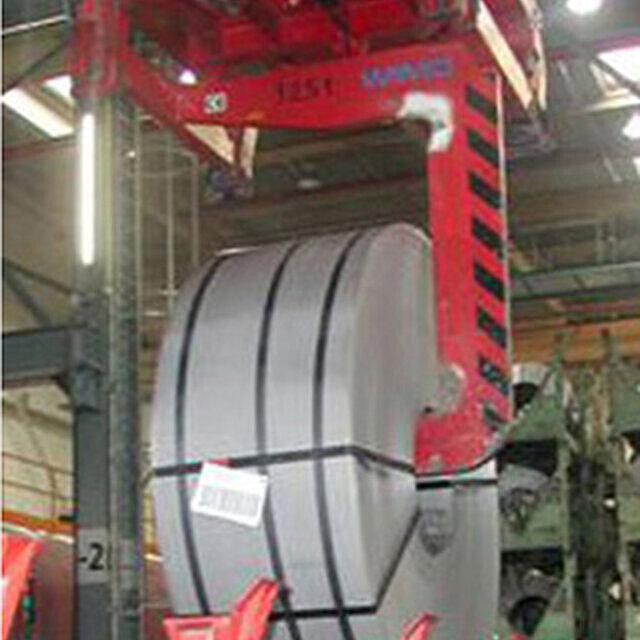

Coil hook (with suspension adapter) on a coil container tong
open

Coil hook (with suspension adapter) on a coil container tong

This coil hook is designed to be picked up by the coil container tongs by means of a suspension adapter. With this coil hook, the coil containers are loaded safely. Without the coil hook, the coil container tongs transport the coil containers to the next process step. The adapter solution eliminates the need for time-consuming changing of the load handling attachment. Ideal for frequent changes of the goods to be transported. Designed for fast and safe lifting.

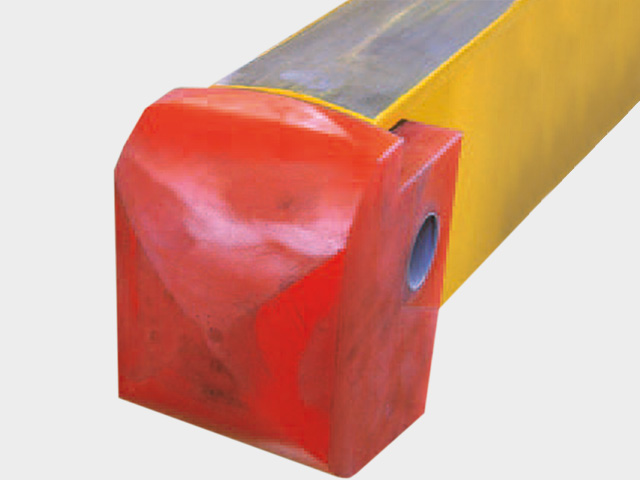

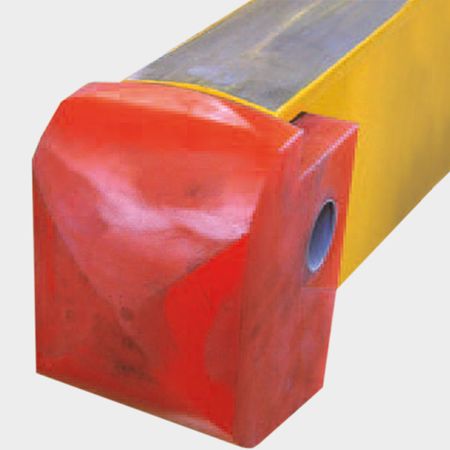

Protector at prong tip
open

Protector at prong tip

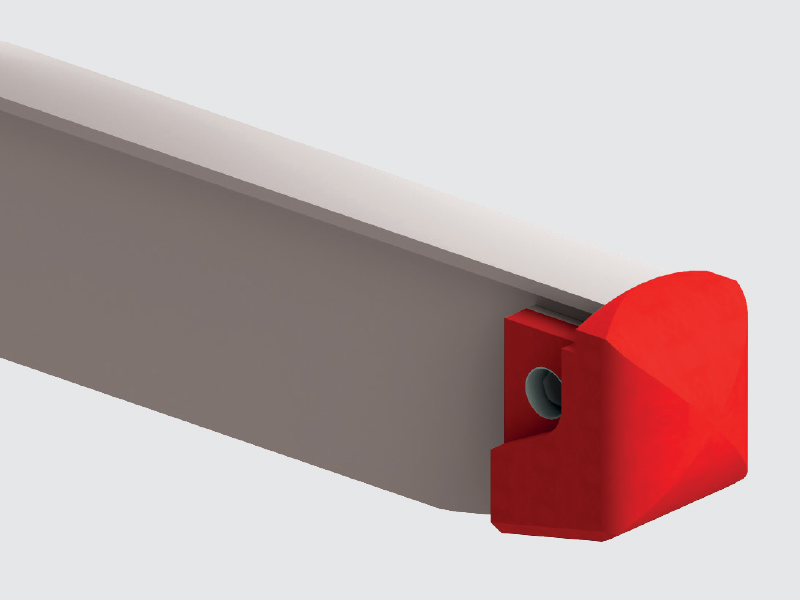

Replaceable protective cap (protector) made of plastic at the prong tip, to protect the coil to be picked up when entering the coil eye.

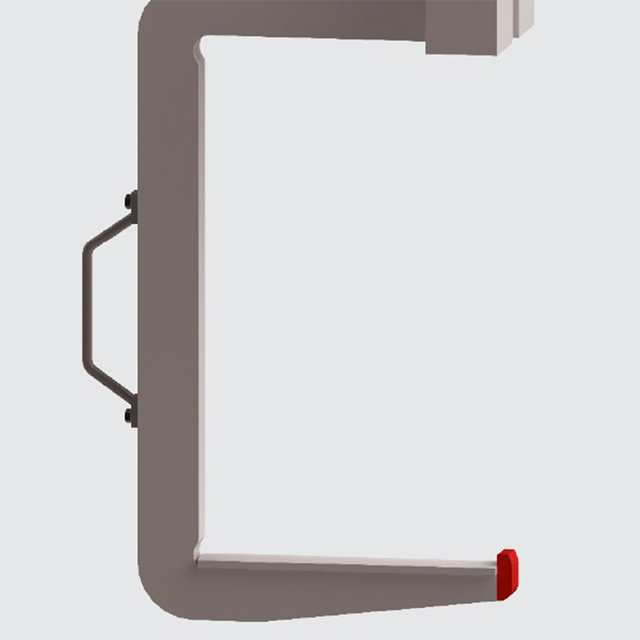

Safety lugs
open

Safety lugs

The safety lug prevents the load from slipping off. Maximum safety during transport.

Only possible on a 4/4 prong due to the construction.

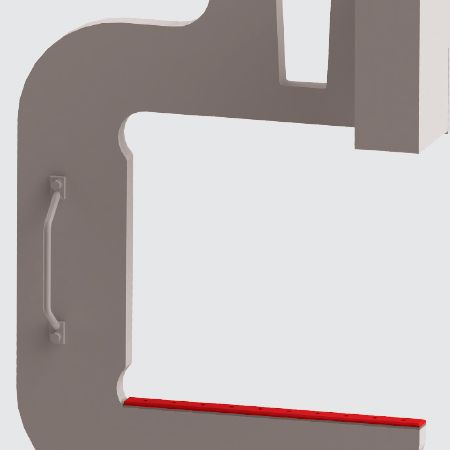

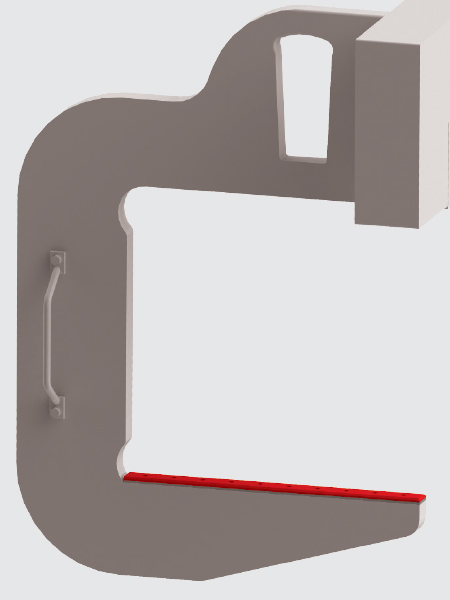

Prong layer made of synthetic material
open

Prong layer made of synthetic material

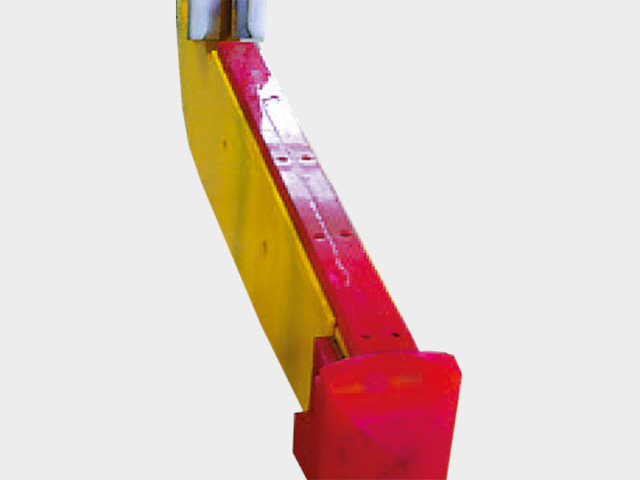

Anti-slip prong support made of synthetic material (changeable), to protect the inner coil windings when taking up the load.

Safety lugs
open

Safety lugs

The safety lug prevents the load from slipping off. Only possible on a 4/4 prong due to the construction.

Safety lug firmly welded or screwed on (changeable).

Coil hook with adapter
open

Coil hook with adapter

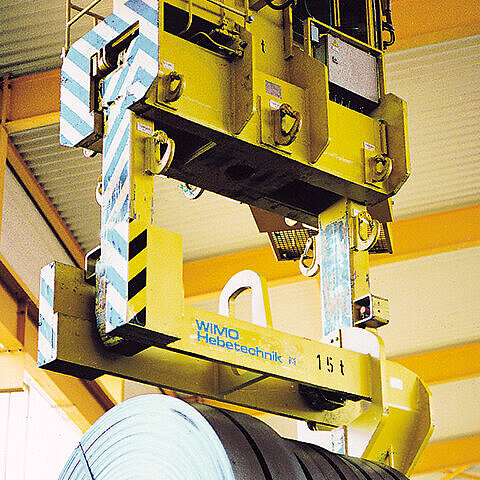

This coil hook can be picked up by coil tongs without manual help or attached directly to the crane hook using the central eyelet. Ideal vor frequent changes of the transported goods. Designed for quick and safe attachment without time-consuming changing of the load suspension device.

Example of an application:
Removal of the split strip coil from the truck, transport to the separating block. Separation of the coils using coil hooks with spacers and storage in storage racks. Picking up of the individual coils with the coil tongs (coil hook was efficiently placed in the parking stand) and transport to the next process step.

Stop plate made of synthetic material
open

Stop plate made of synthetic material

Stop plate made of synthetic material (changeable), to protect the end face of the coil when picking up and setting down the load.

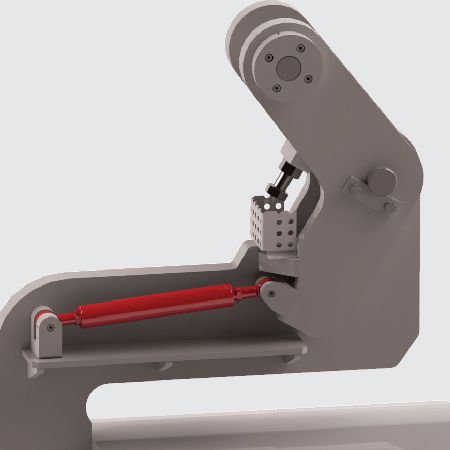

Spring loaded coil hook suspension
open

Spring loaded coil hook suspension

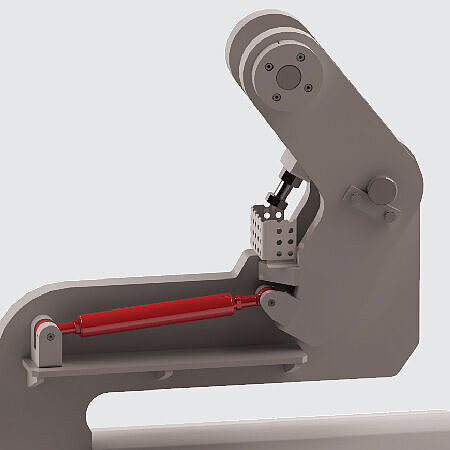

The suspension is spring-loaded.

  • The suspension is returned to the centre of gravity of the unloaded hook by gas pressure springs.
  • Suspension always via bolts due to construction.

Coil hooks with spring balancing are characterised by a lower dead weight than the variant with counterweight. Another advantage is that the coil hook with spring balancing is a space-saving variant, e.g. when space is limited due to the on-site system technology.

Synthetic prong support
open

Synthetic prong support

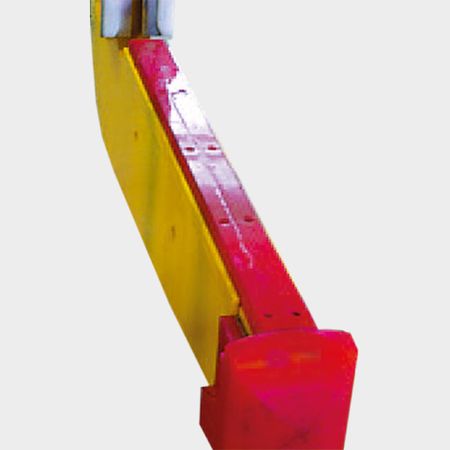

Anti-slip prong support made of synthetic material (changeable) and plastic protective cap (protector) at the tip of the prong, to protect the inner coil windings when taking up the load.

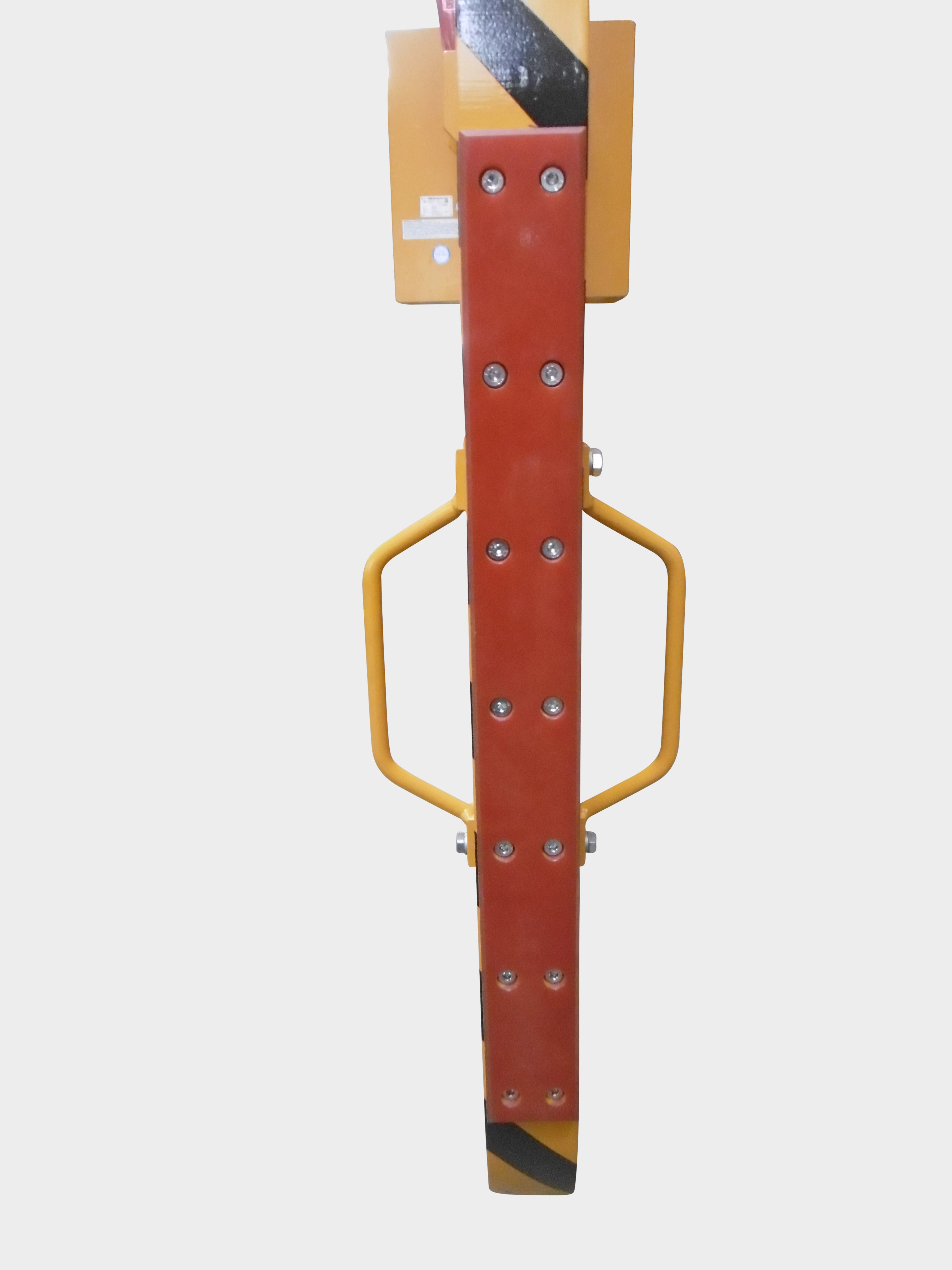

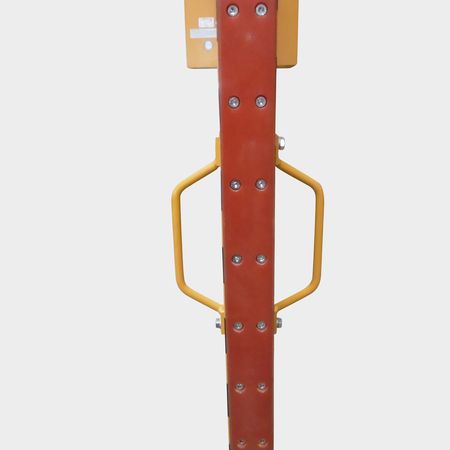

Protector on the back of the hook made of synthetic material
open

Protector on the back of the hook made of synthetic material

Plastic back protection on the outside (changeable), to protect the coils next to it.

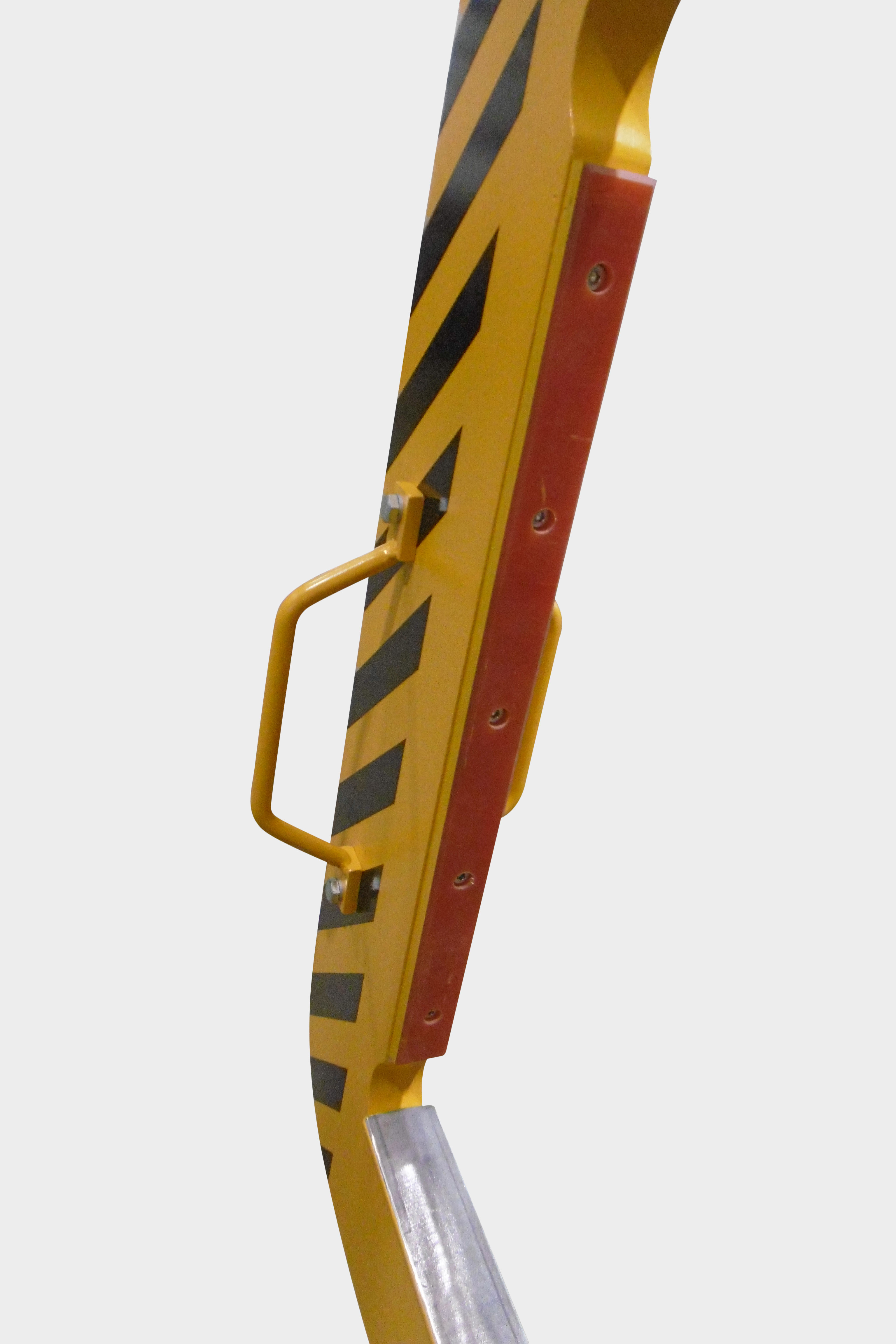

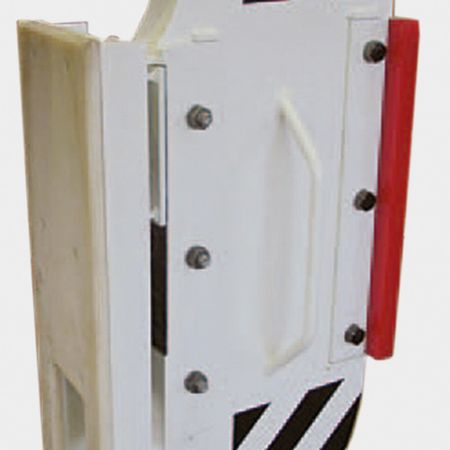

Hinged approching plate made of steel or synthetic
open

Hinged approching plate made of steel or synthetic

Approaching plate made of steel or synthetic on the vertical inside of the hook, hinged to the side and suspended vertically.

Optimum protection of coil sides during lifting and deposting operations.

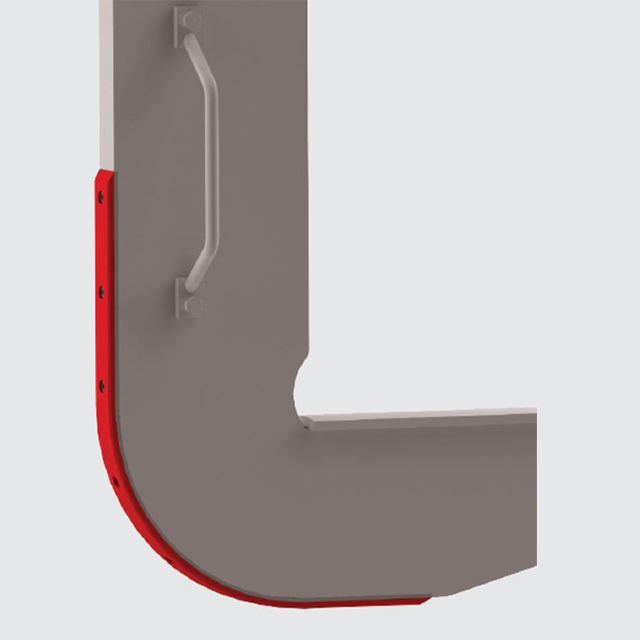

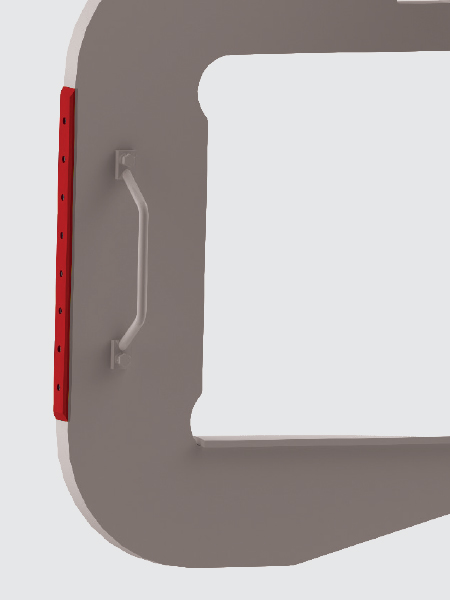

Protector on the back of the hook and the underside of the coil hook made of plastic
open

Protector on the back of the hook and the underside of the coil hook made of plastic

Outside back and underside protection made of plastic - protective coating (changeable), to protect coils lying next to it.

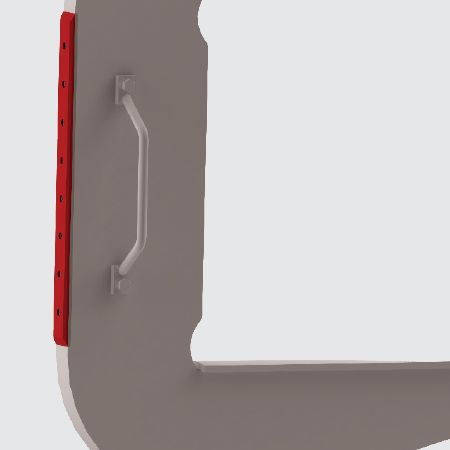

Protector on back of the hook
open

Protector on back of the hook

Plastic back protection on the outside (changeable) to protect the coils next to it.

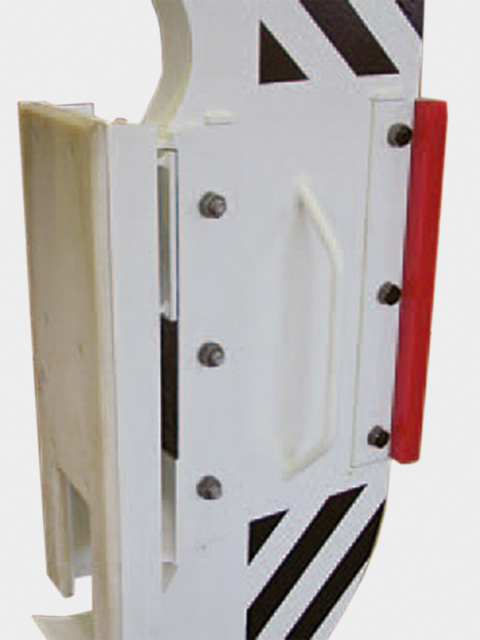

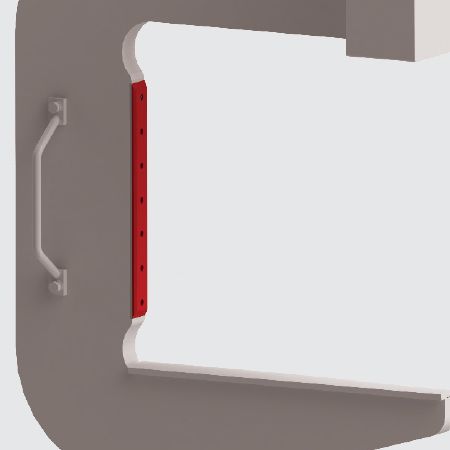

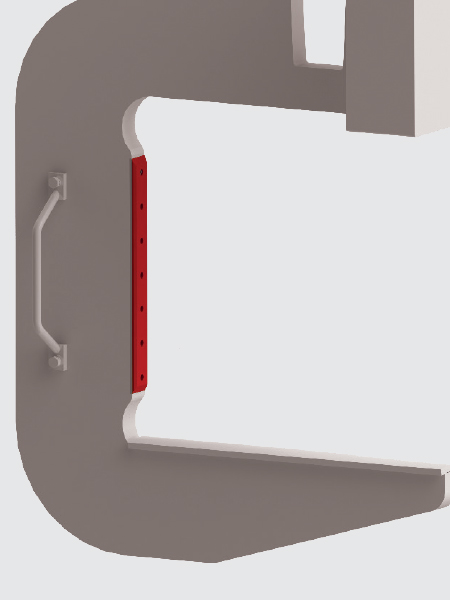

Synthetic approach plate on steel support plate
open

Synthetic approach plate on steel support plate

Plastic approach plate - protective coating (changeable), to protect the end face of the coil when picking up and setting down the load.

Patented: WIMO®-Coil hook with adjustable prong support
open

Patented: WIMO®-Coil hook with adjustable prong support

WIMO coil hook with adjustable prong suppport for accident-proof and efficient separation of slit strips.
