PRESSING TOOL TONGS
Transportation of tools plays a particularly important role in the automotive industry. Tools need to be replaced as quickly as possible while being safe for employees. Pressing tool tongs from WIMO® are the ideal tool transportation solution for these challenges.
WIMO Hebetechnik supplies custom-designed and highly innovative solutions that are calibrated for the individual application scenario in the company. A WIMO® tool gripper features tong arms that are adjustable on the longitudinal and lateral side. These enable tools to be gripped on both their longitudinal side and front side – so that tools with very different widths and lengths can be transported. Using additional weld-on hooks, further goods can also be transported. Pressing tool tongs from WIMO® can also transport multiple tools at the same time, which saves money particularly in large process organisations. Pressing tool tongs from WIMO® handle the tools carefully so that no damage occurs: For example, load securing devices prevent tool tongs from opening unintentionally while under load. In addition, an integrated slewing gear makes it easier to position the tools in the warehouse. With this lifting technology solution from WIMO®, fully automated tool transportation is also possible.

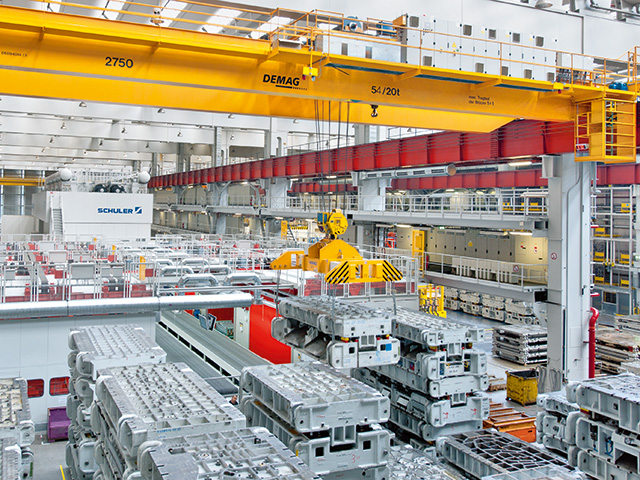

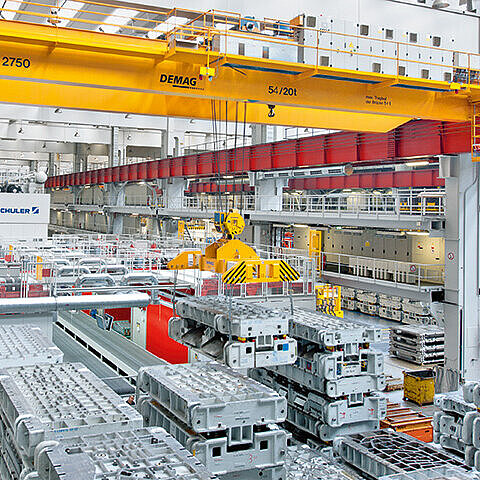

Hydraulic telescopic spreader for press tool transport
Thanks to the infinitely adjustable telescopic arms, the load suspension points can be adapted to the load attachment points. This makes slinging with heavy slings much easier.
- Infinitely adjustable telescopic arms for adaptation to load attachment points
- Easier attachment of heavy tools
- Flexible use for a wide variety of loads
- Safe transport through individual adaptation to the tool geometry
- Robust, hydraulic design for high load capacities

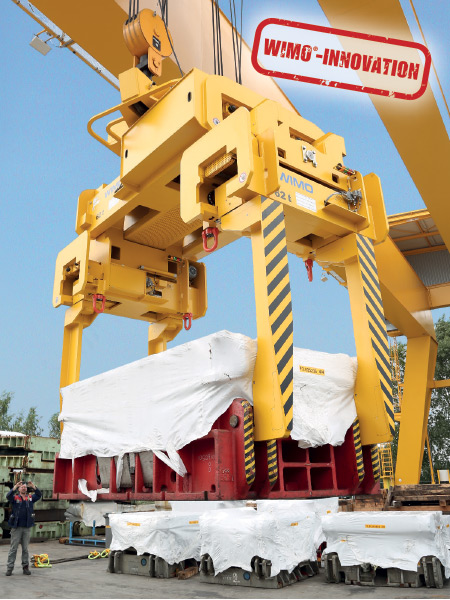

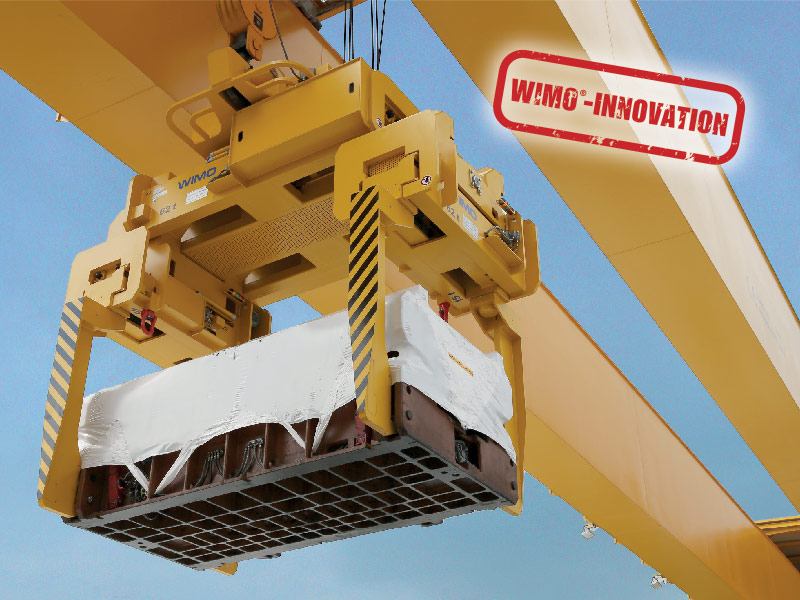

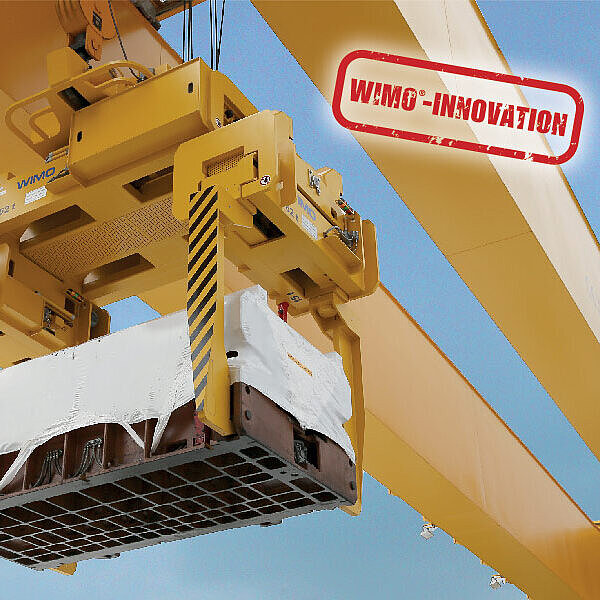

Motor-driven pressing tool tong
- Particularly flexible as the support prongs can be rotated through 90°
- Press tools can be gripped on both the long side and the front side
- Horizontal rotary device for precise positioning
![[Translate to English:] Presswerkzeugzange motorisch angetrieben mit Horizontal-Dreheinrichtung](/fileadmin/_processed_/3/b/csm_10_Presswerkzeugzange-motorisch-angetrieben_708e0fe377.jpg)

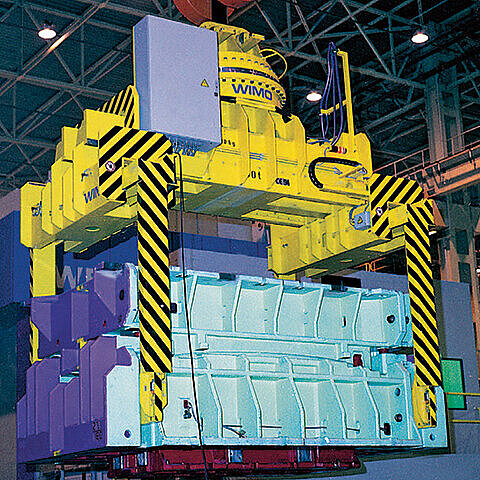

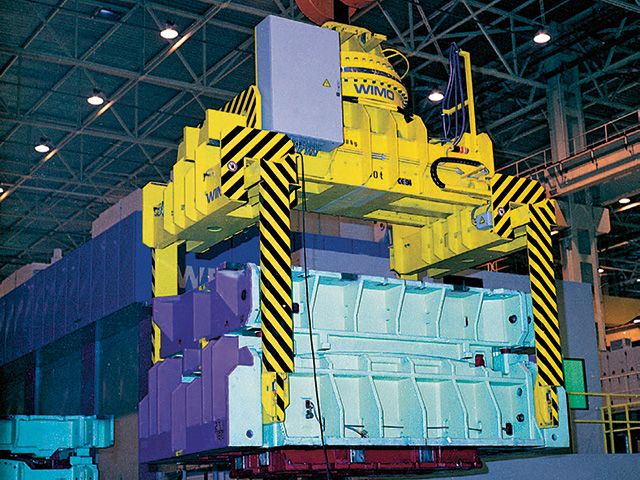

Press tool tong with signal lights and load securing device
- Integrated shut-down strip with signal lights for correct load acceptance
- Safe handling even with restricted visibility
- Load securing devices to prevent unintentional opening under load
- Motorised adjustable tong arms in longitudinal and transverse directions
- Horizontal rotation device for precise positioning

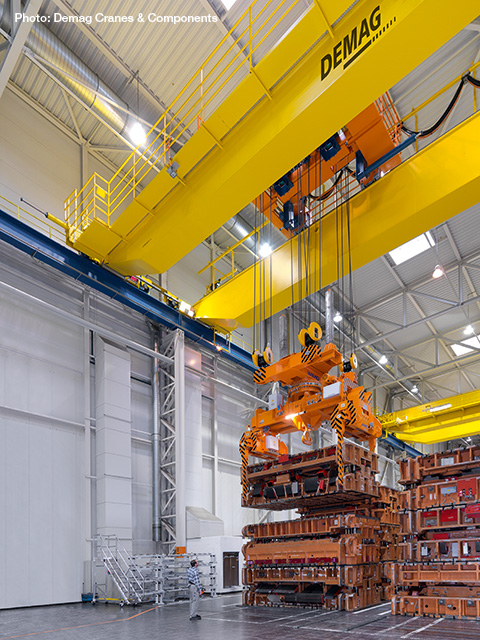

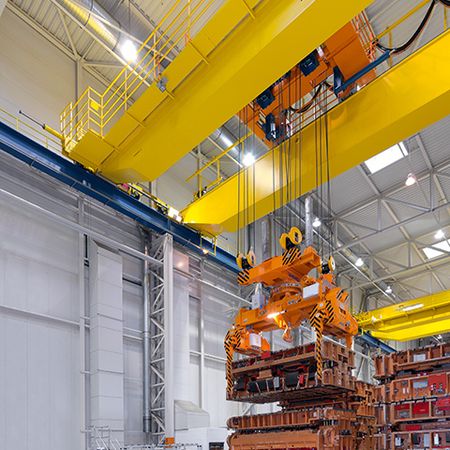

Pressing tool tong with motor-adjustable pliers arms and horizontal rotary device
- Motor-adjustable tong arms in longitudinal and transverse direction
- Horizontal rotation device for precise tool alignment
- Fixation in uppermost stroke position via centring pins
- Automated loading and unloading thanks to integrated position measuring system
- Load support on four drop ring bolts of the pressing tools
WIMO pressing tool tongs are specially designed for the safe, fast, and efficient transport of press tools – ideal for applications in the automotive and supplier industry. Thanks to individually adjustable tong arms and intelligent safety features, they enable precise handling and storage of a wide variety of tool sizes.
Technical features
- Load capacity: designed for specific applications
- Adjustable tongs arms: adaptable lengthwise and crosswise
- Gripping on the long and short sides of the tool
- Optional: integrated rotary mechanism for precise tool positioning
- Additional weld-on hooks for multi-purpose transport
- Safety features: load securing against unintentional opening under load
- Optional: fully automated transport process possible
Technical innovations
- Longitudinally and transversely adjustable gripper arms for maximum flexibility
- Integrated rotary mechanism for precise bearing positioning
Your advantages in use
- Time savings by picking up several tools at once
- Safe tool transport without damage
- Flexible handling of tools of different sizes
- Efficient integration into automated processes
- Increased work safety for operating personnel
Compatibility & extensions
- Optionally available with weld-on hooks for additional load attachments
- Can be connected to automated transport systems
Typical areas of application
- Tool handling in press shops
- Automotive industry and supplier companies
- Internal logistics in large production lines
Contact us for personalized advice.
