Crane hook blocks

Loads are transported with cranes in many industrial enterprises. Crane hook blocks with turning gear and hook or an integrated weighing system are often advantageous in this scenario. WIMO Hebetechnik offers robust and durable crane hook blocks that are ideally suited to the relevant application as well as automated operation (“Industry 4.0”).

Most lifting technology providers only offer crane hook blocks in a standardised shape. This is what makes WIMO® different. As a specialist in special-purpose mechanical engineering, WIMO Hebetechnik produces highly innovative, custom solutions for lifting and transporting heavy goods and placing them into storage. Every crane hook block from WIMO® is specially designed for the individual application scenario for targeted optimisation of the material flow. A WIMO® hook block protects the motor against damage, protects the material during transportation and protects employees against occupational accidents. WIMO® crane hook blocks are also designed for heavy-duty applications, such as high-temperature work. In this case, the hook blocks are reinforced with a special heat plate. With the help of an automatic jaw opening, this lifting technology from WIMO® also enables goods to be deposited at great heights without having to lay a hand on them. In this process, the position of the jaw opening can be displayed visually. A patent for this innovation has already been submitted.

Inquire now

Video

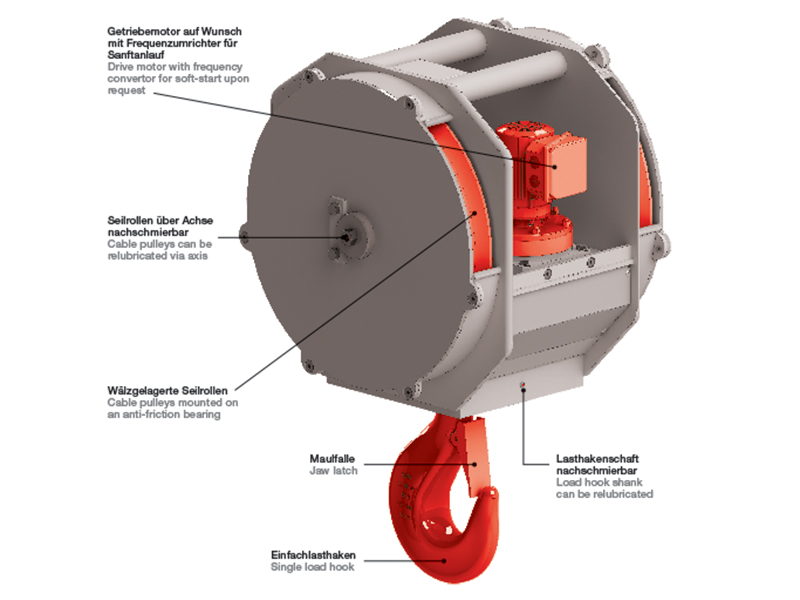

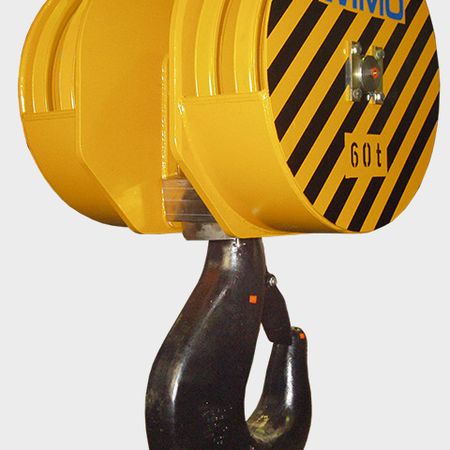

WIMO® crane hook blocks with hook turning drive (2 rope pulleys)
open

WIMO® crane hook blocks with hook turning drive (2 rope pulleys)
  • Electromechanical hook rotator for safe rotation of loads on cranes
  • Two rope pulleys for compact handling
  • Robust design with shock-protected gear motor
  • Convenient alignment of the load possible from the hall floor
  • Ideal when the operator has no access

WIMO® crane hook blocks with hook turning drive (3 rope pulleys)
open

WIMO® crane hook blocks with hook turning drive (3 rope pulleys)
  • Three rope pulleys for higher load distribution
  • Electromechanical rotating hook for precise load alignment
  • Gear motor protected against impact loads by a protection system
  • Ideal for automated or hard-to-reach applications
  • Efficient truck loading thanks to remote control capability

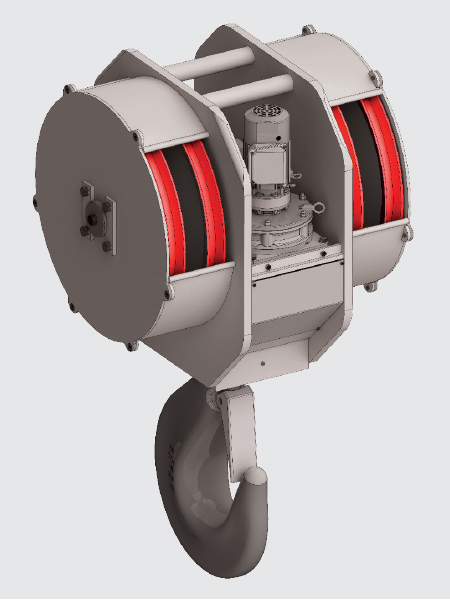

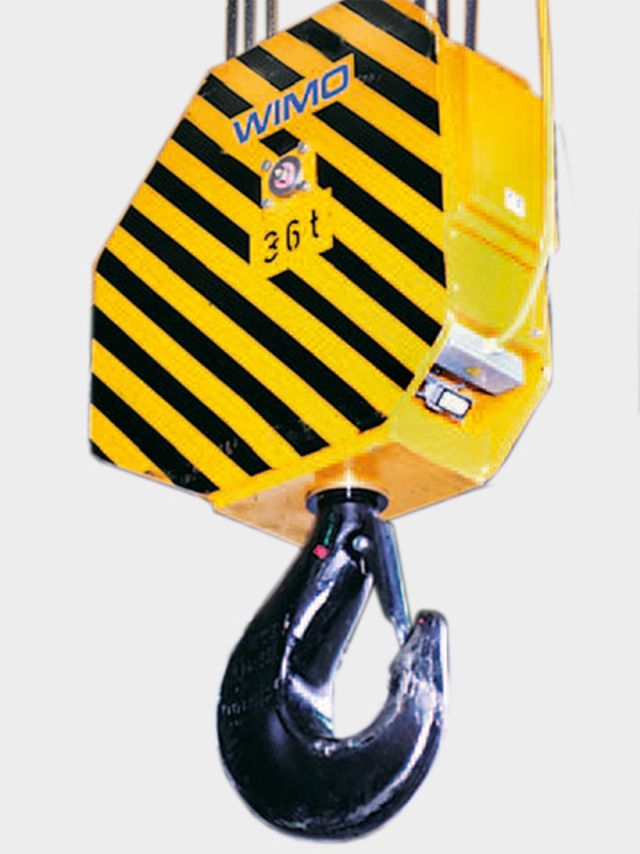

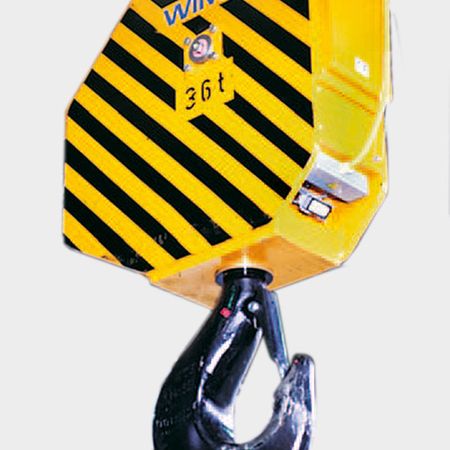

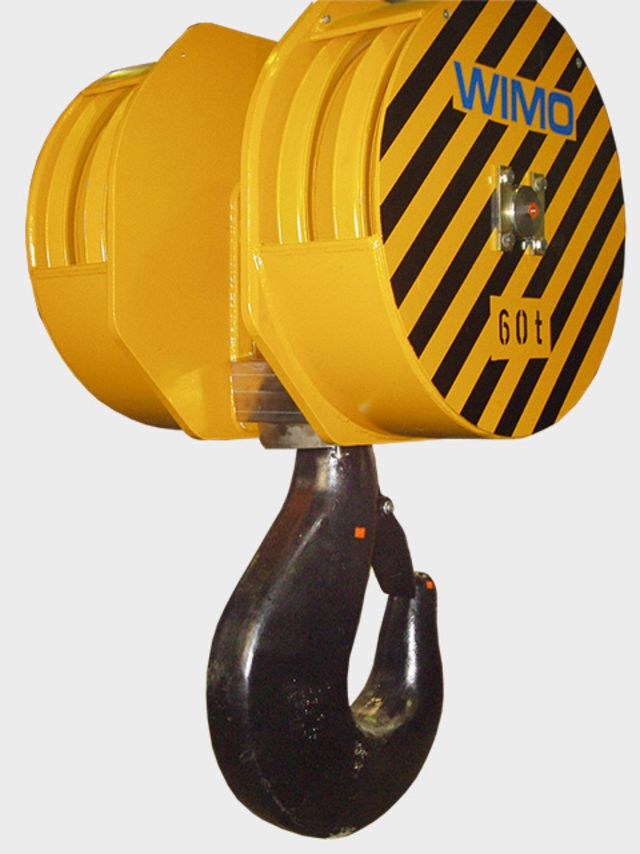

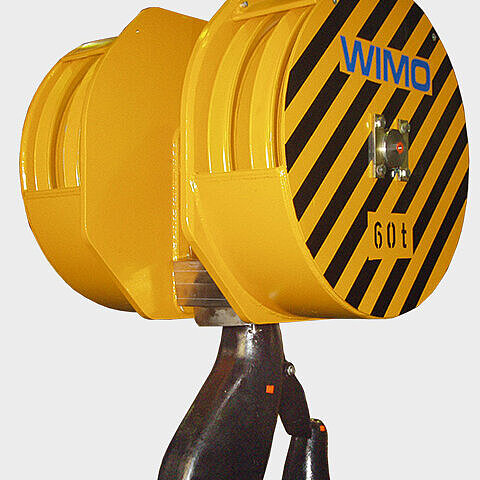

WIMO® crane hook blocks with hook turning drive (4 rope pulleys)
open

WIMO® crane hook blocks with hook turning drive (4 rope pulleys)
  • Four rope pulleys for high load capacity and even load distribution
  • Load hook with motorized rotation drive
  • Protective system protects drive in case of impact loads
  • Particularly suitable for restricted operating access
  • Safe load alignment without manual intervention

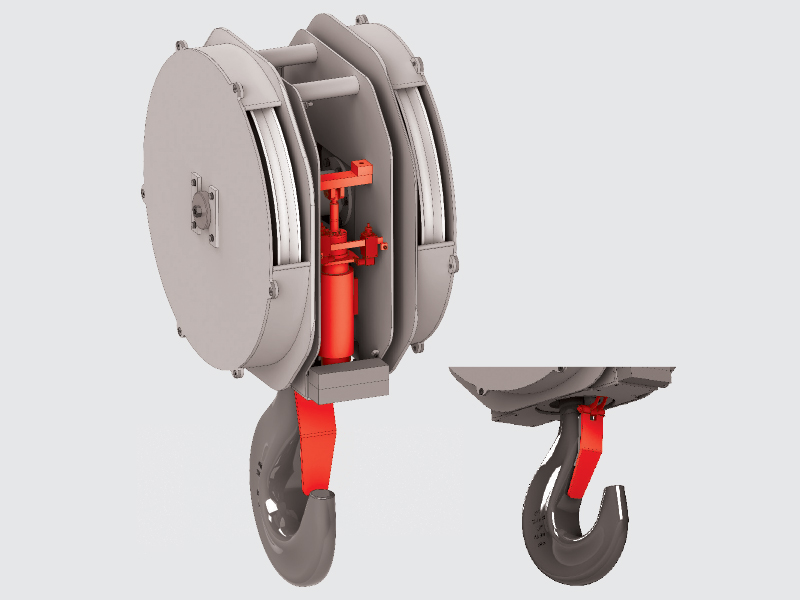

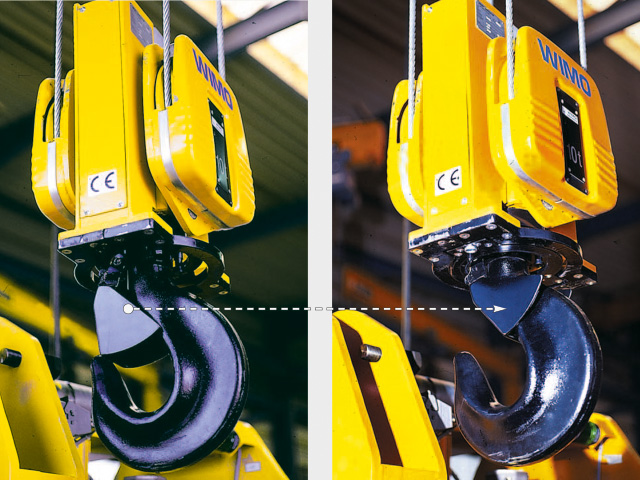

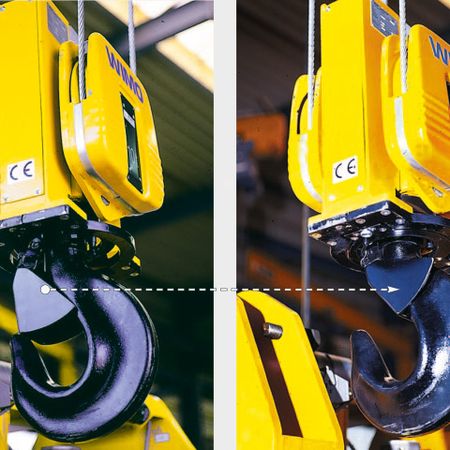

Motorized safety latch unlocking device
open

Motorized safety latch unlocking device
  • Electric motor-driven safety latch for contactless attachment and detachment
  • Perfect for attachment points that are difficult to access
  • Increased work safety and process automation

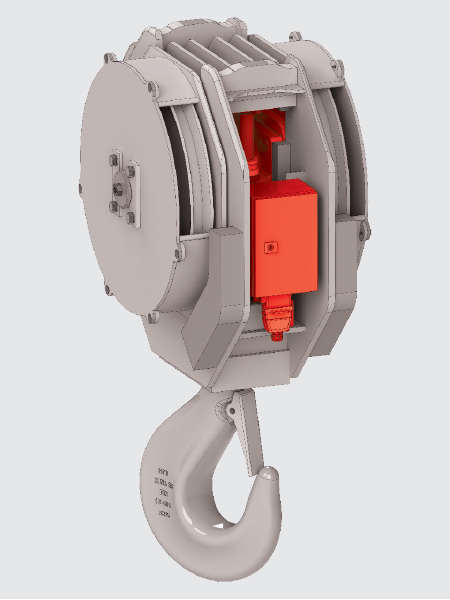

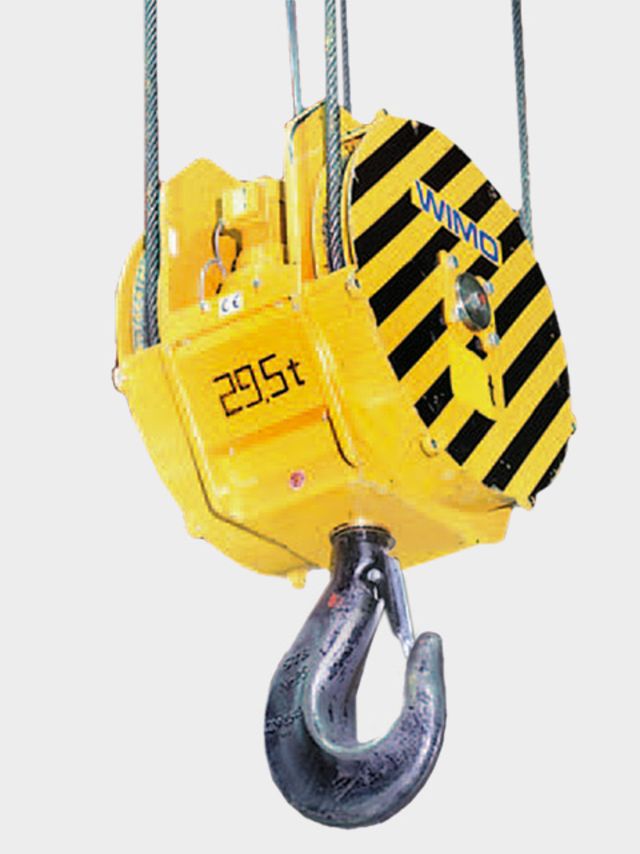

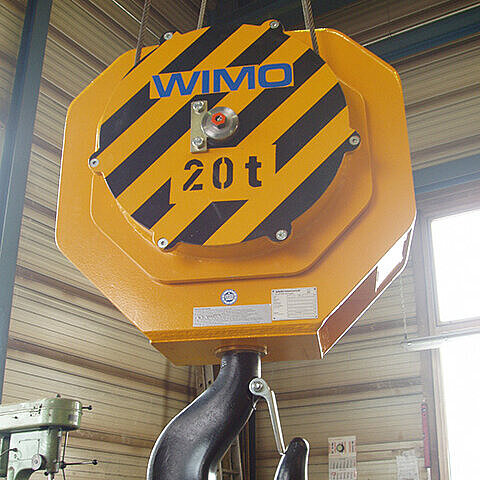

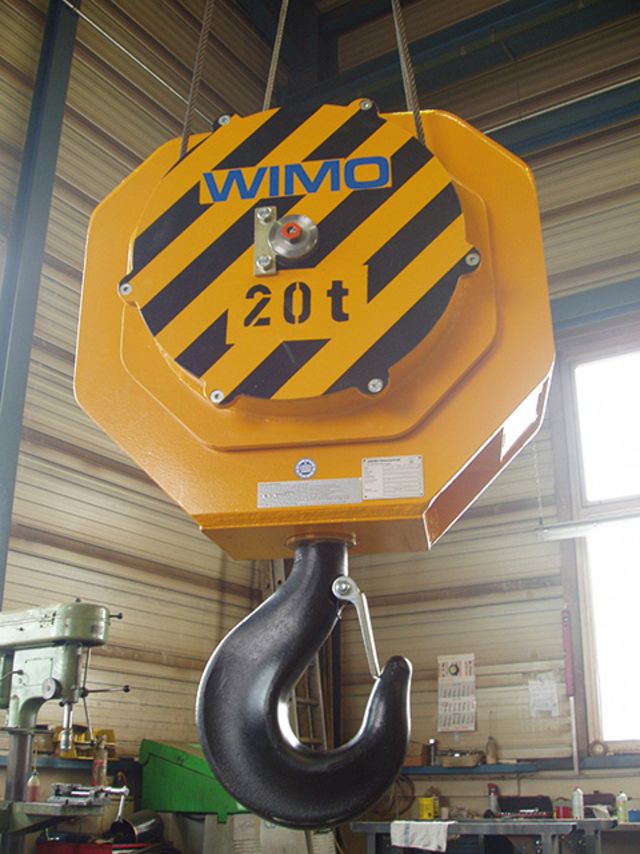

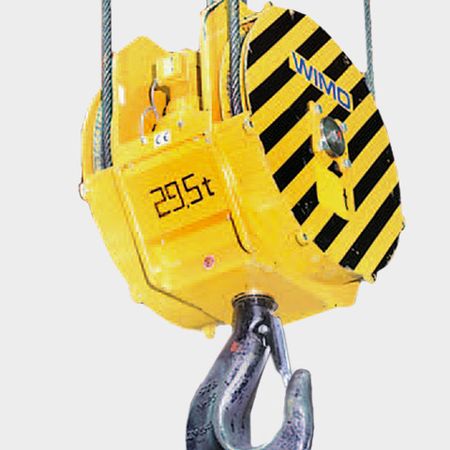

WIMO®-Crane hook block with turning drive and weighing device
open

WIMO®-Crane hook block with turning drive and weighing device
  • Combination of turning hook and integrated weighing technology
  • Very compact design with low overall height
  • Weight display directly on the hook block
  • Optional: weighing data transmission via radio
  • Ideal for incoming goods inspection during the lifting process

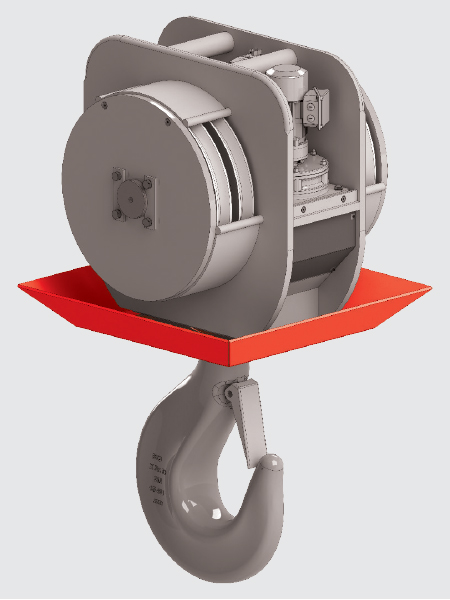

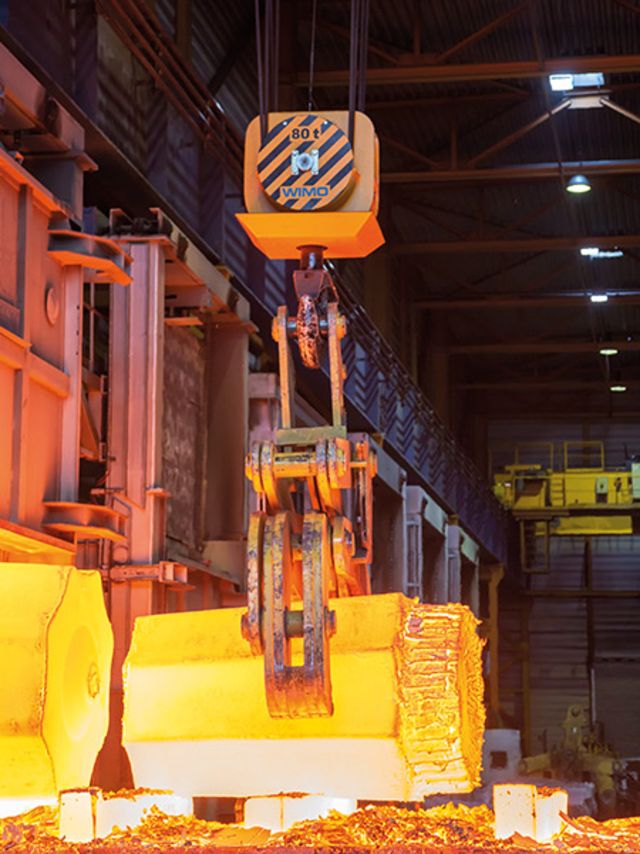

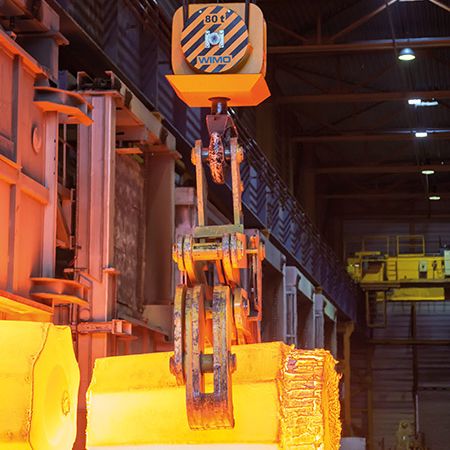

Metallurgical plant design with heat protector
open

Metallurgical plant design with heat protector
  • Protection against heat radiation thanks to special heat protection device
  • Prevents overheating and extends the service life of the hook block
  • Robust design for extreme environments in the steel mill sector

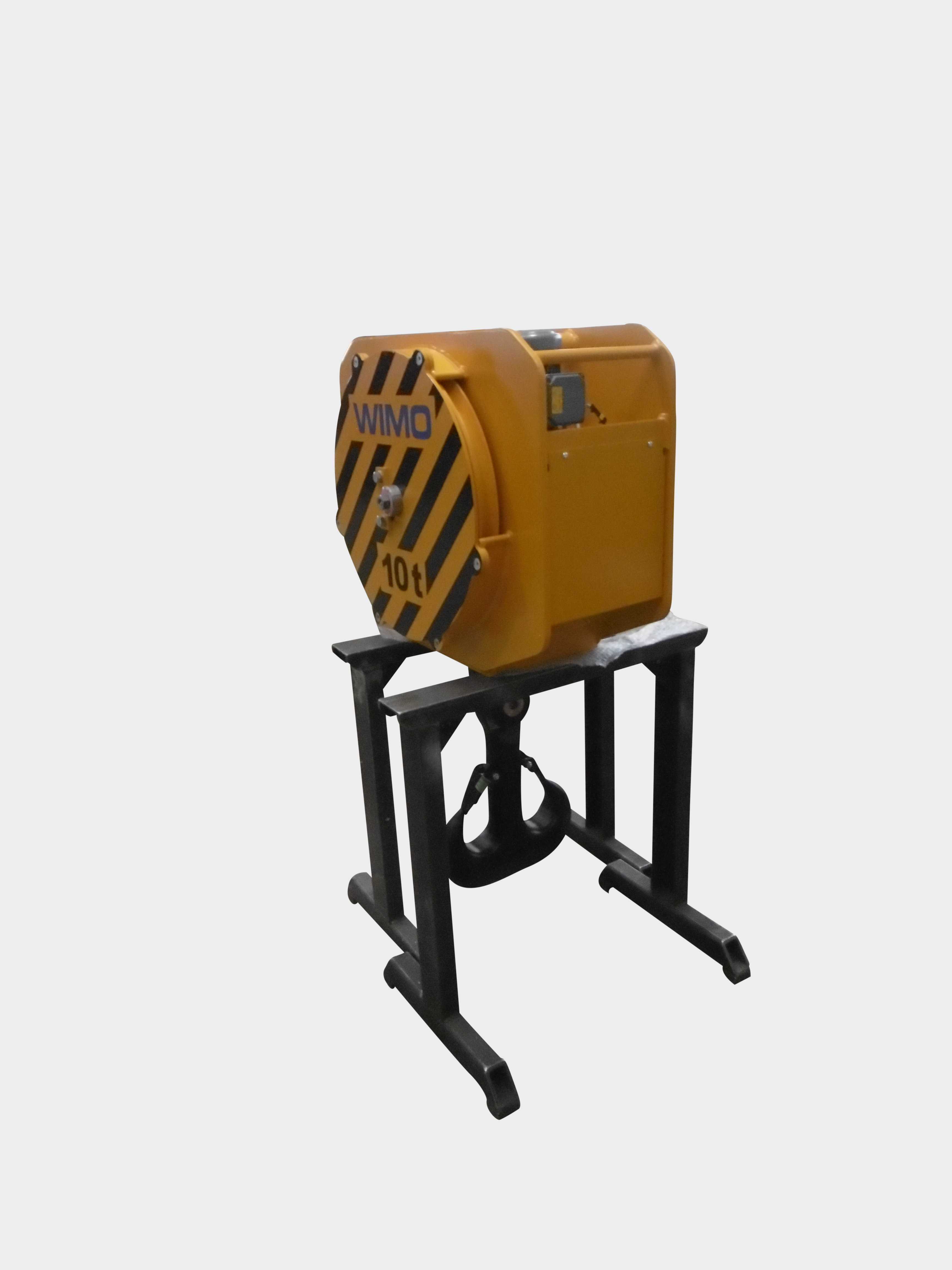

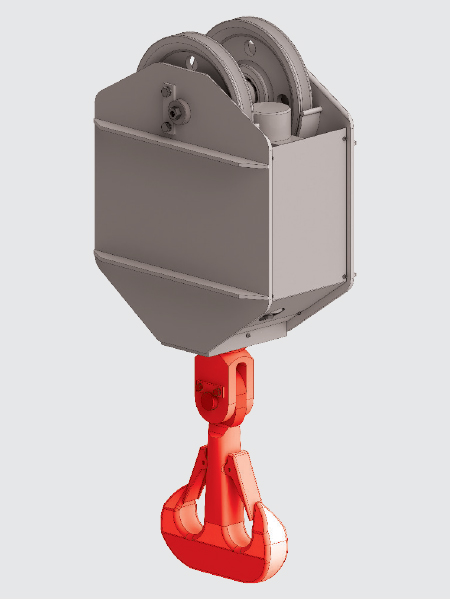

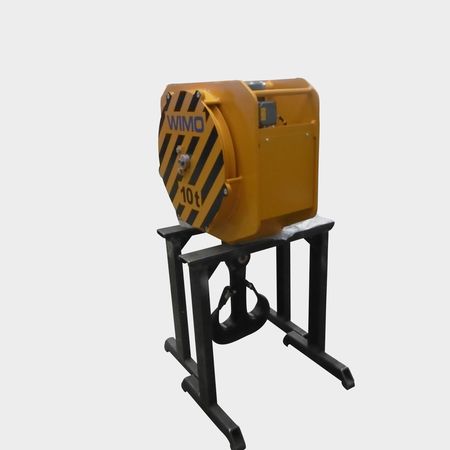

Double load hook with joint
open

Double load hook with joint
  • Articulated suspension to prevent bending forces
  • Safe lifting even with unevenly distributed loads
  • Reduces mechanical stress on the hook shaft

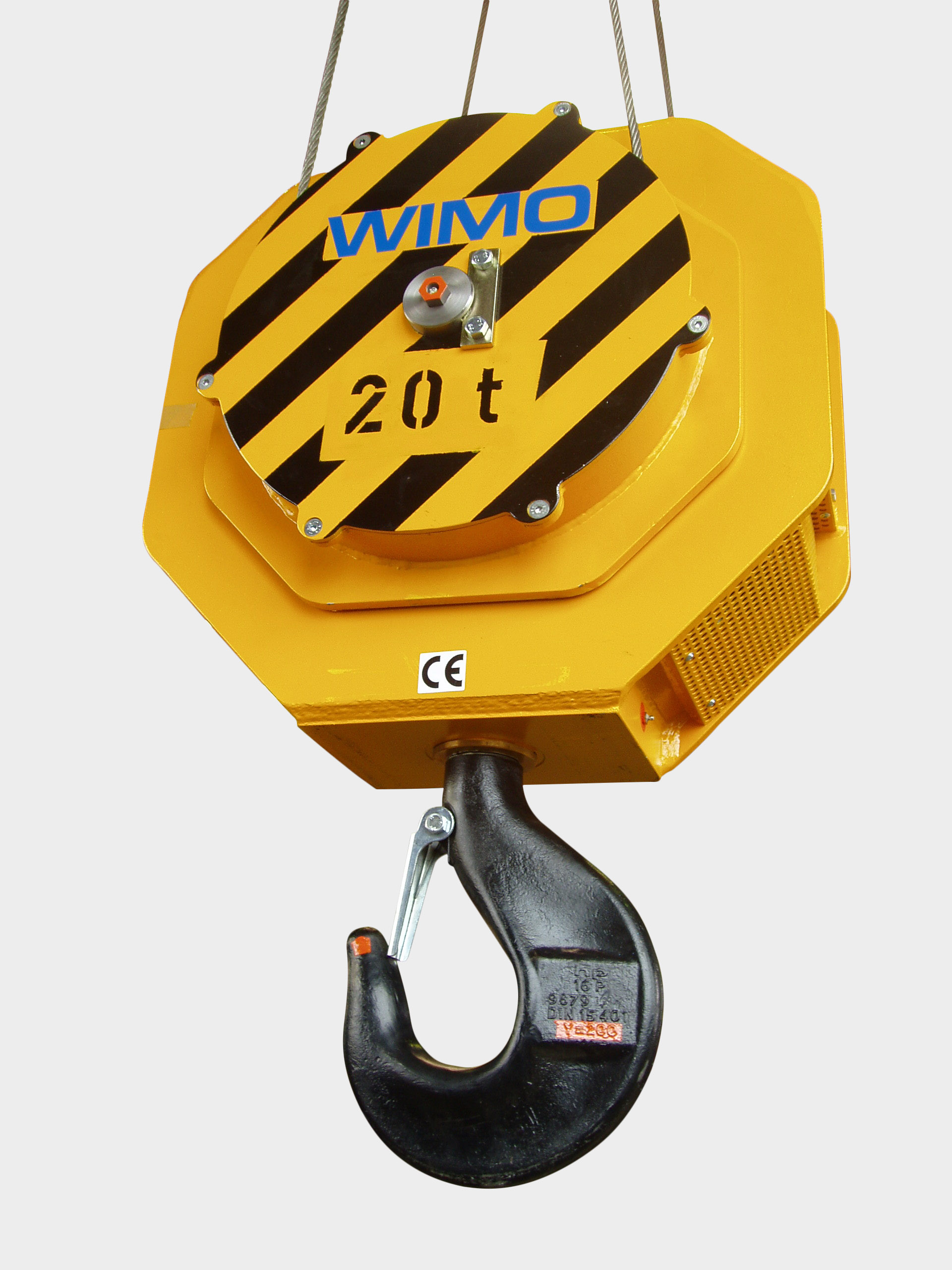

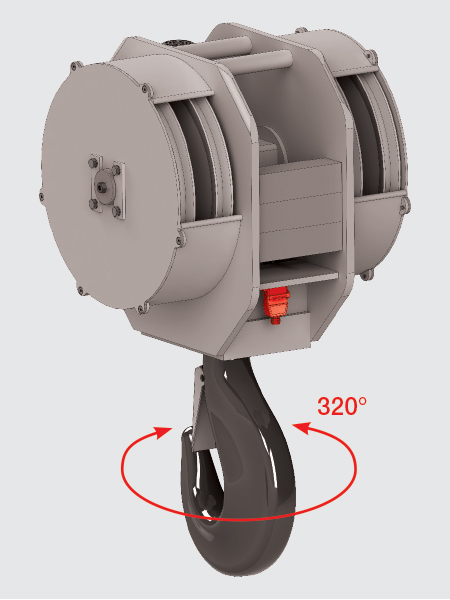

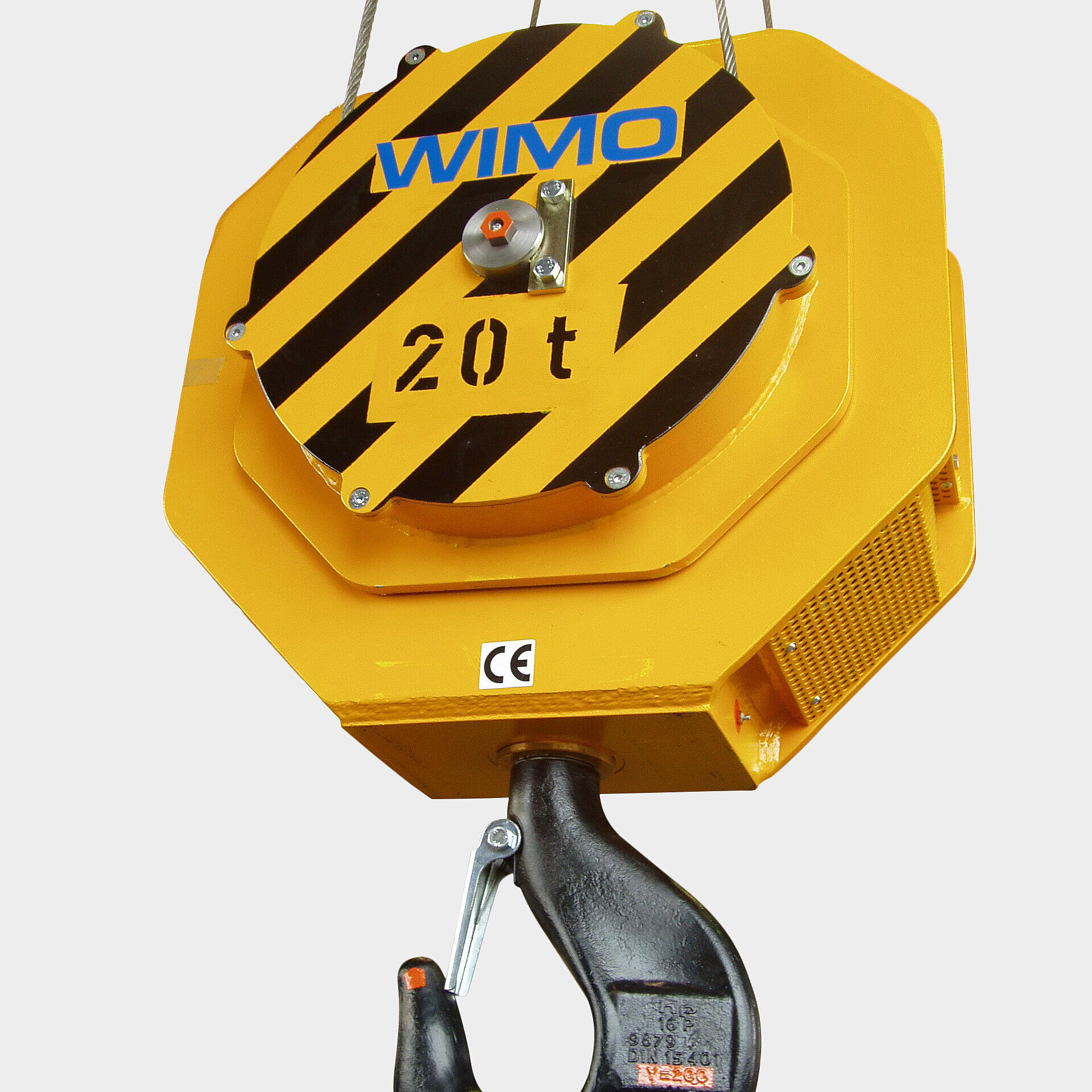

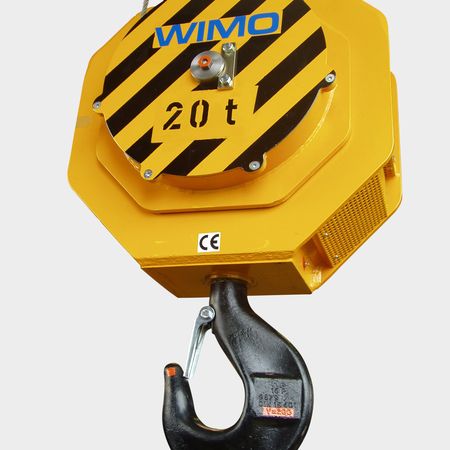

Rotational range limitation & additional socket
open

Rotational range limitation & additional socket
  • Integrated limitation of the hook rotation range
  • Additional socket for electric load handling attachments

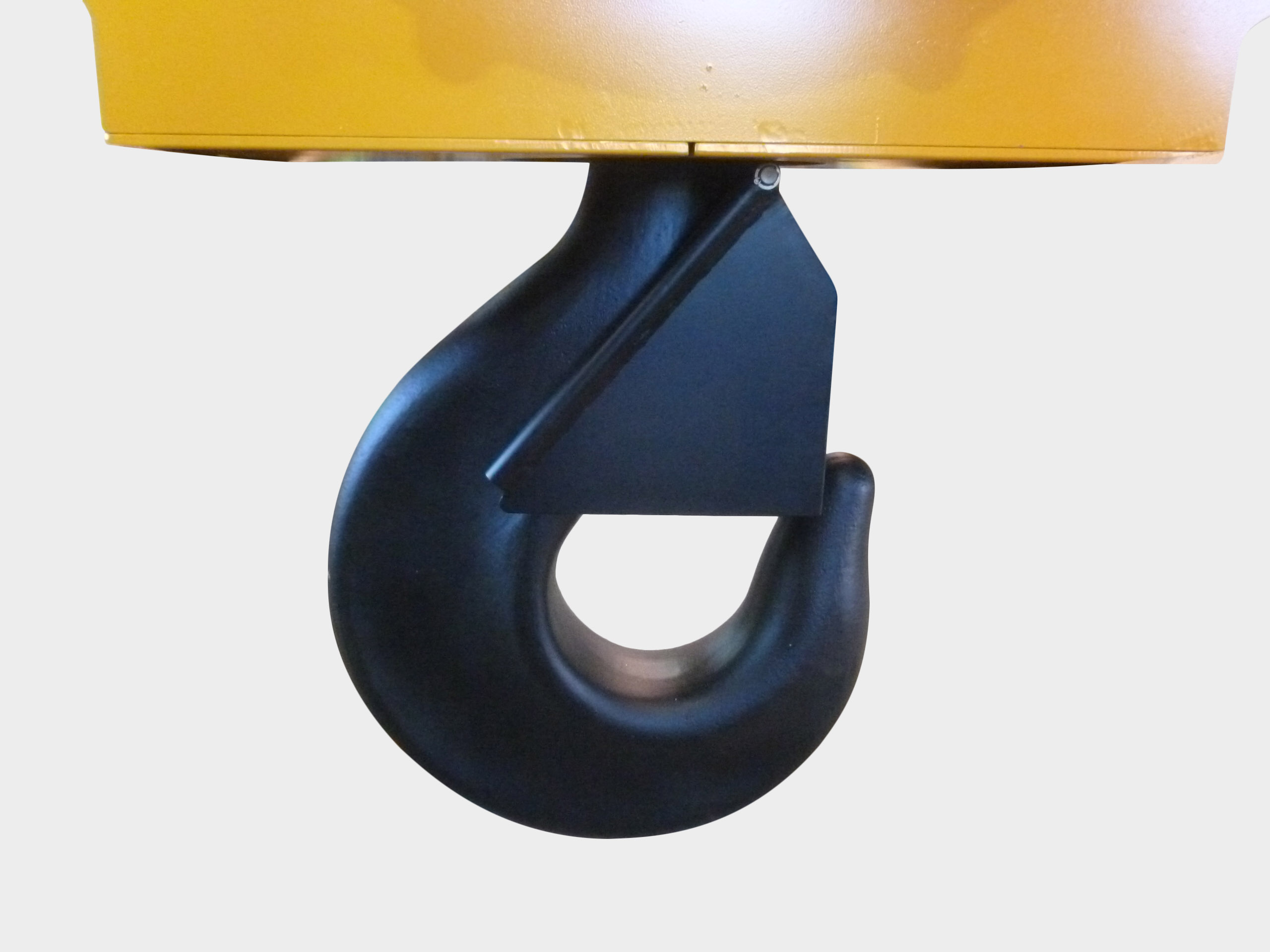

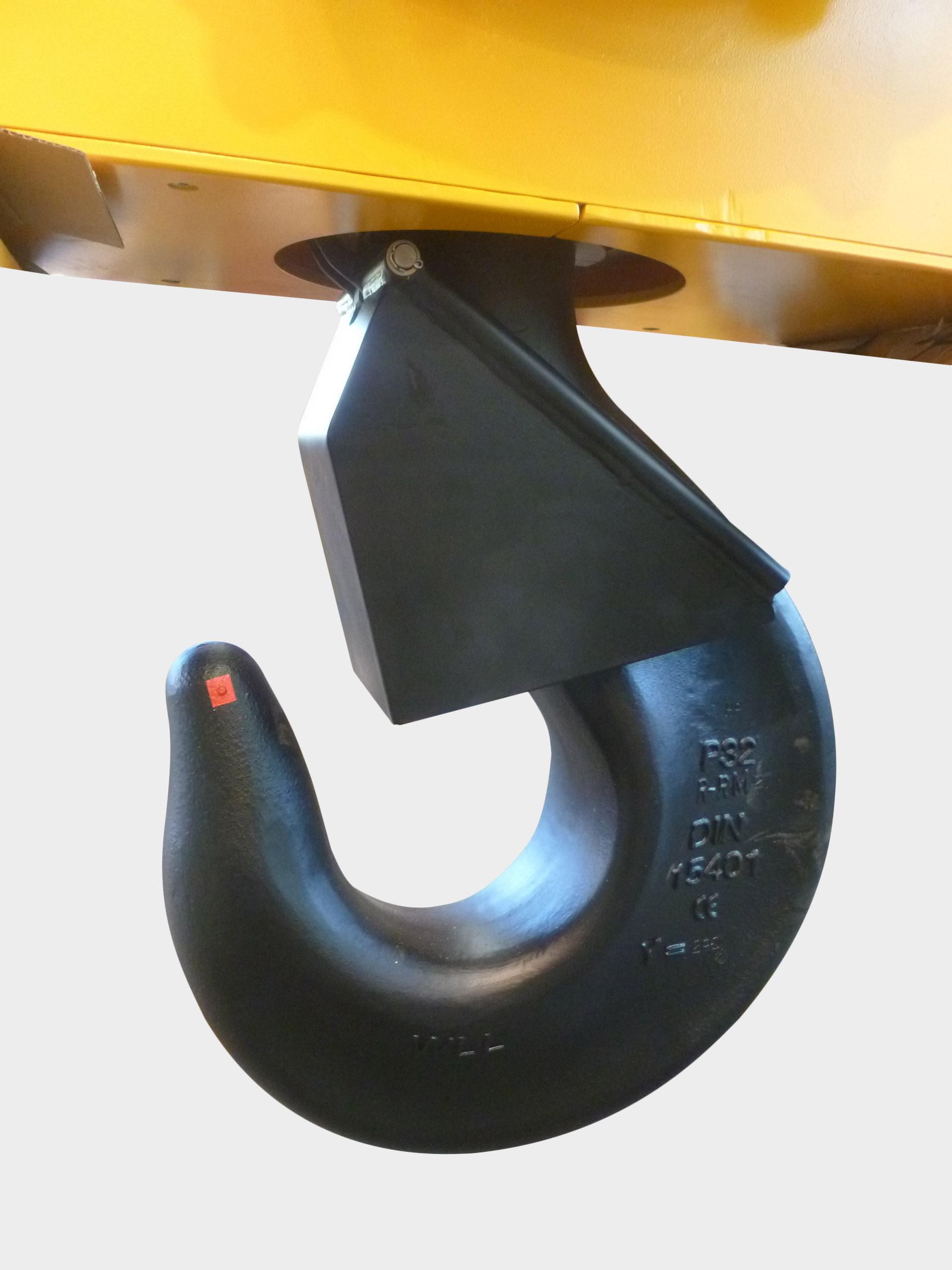

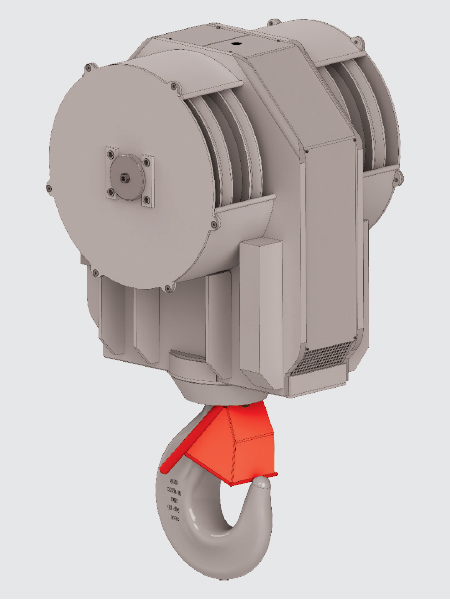

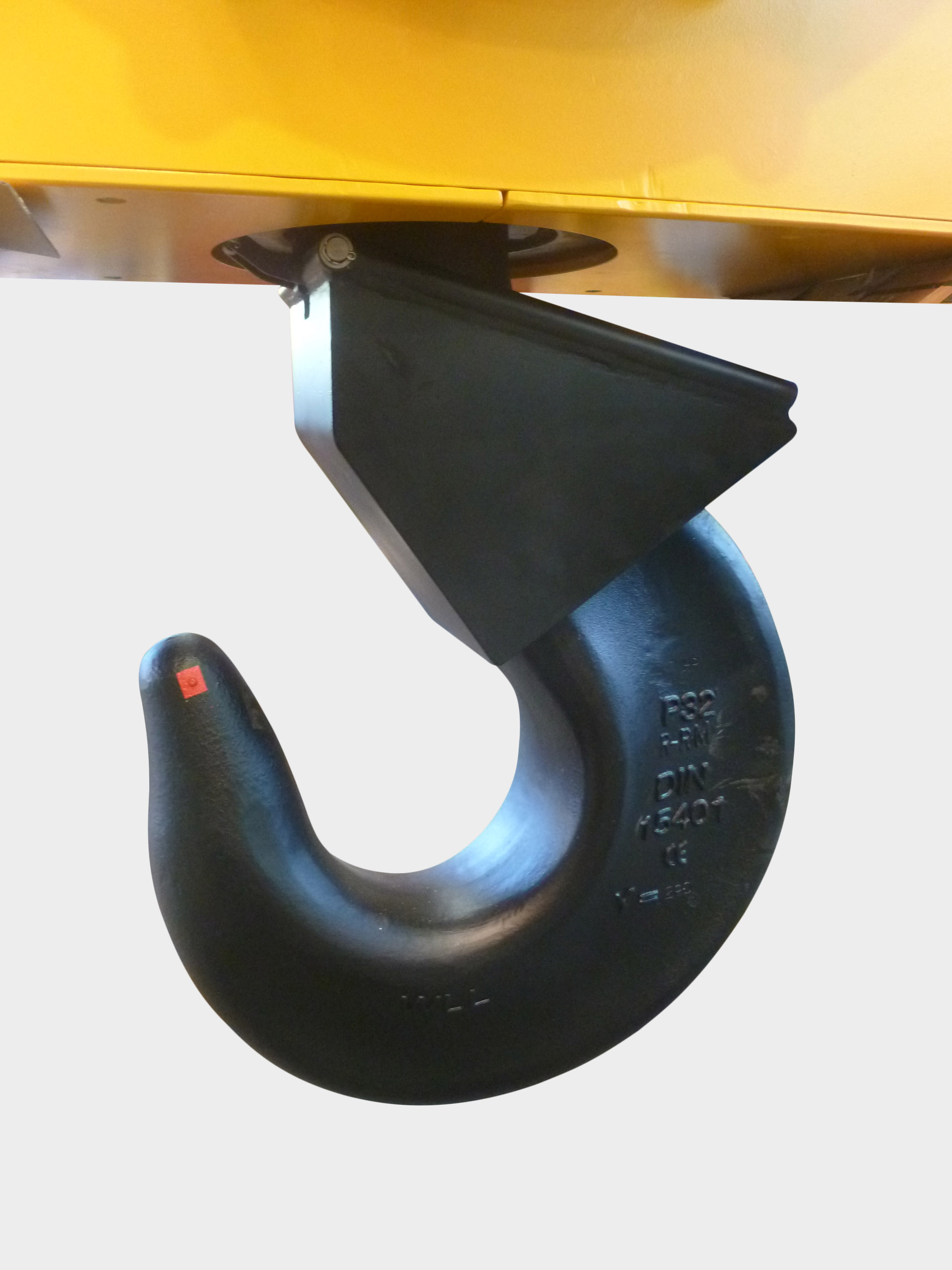

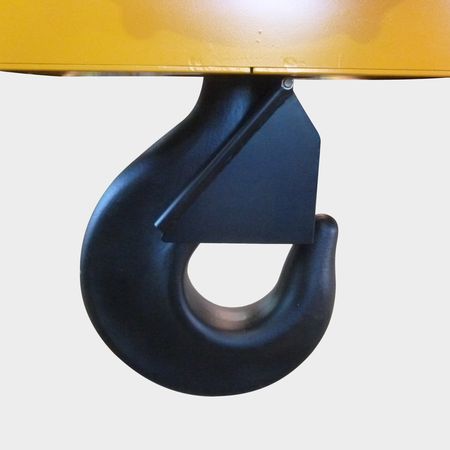

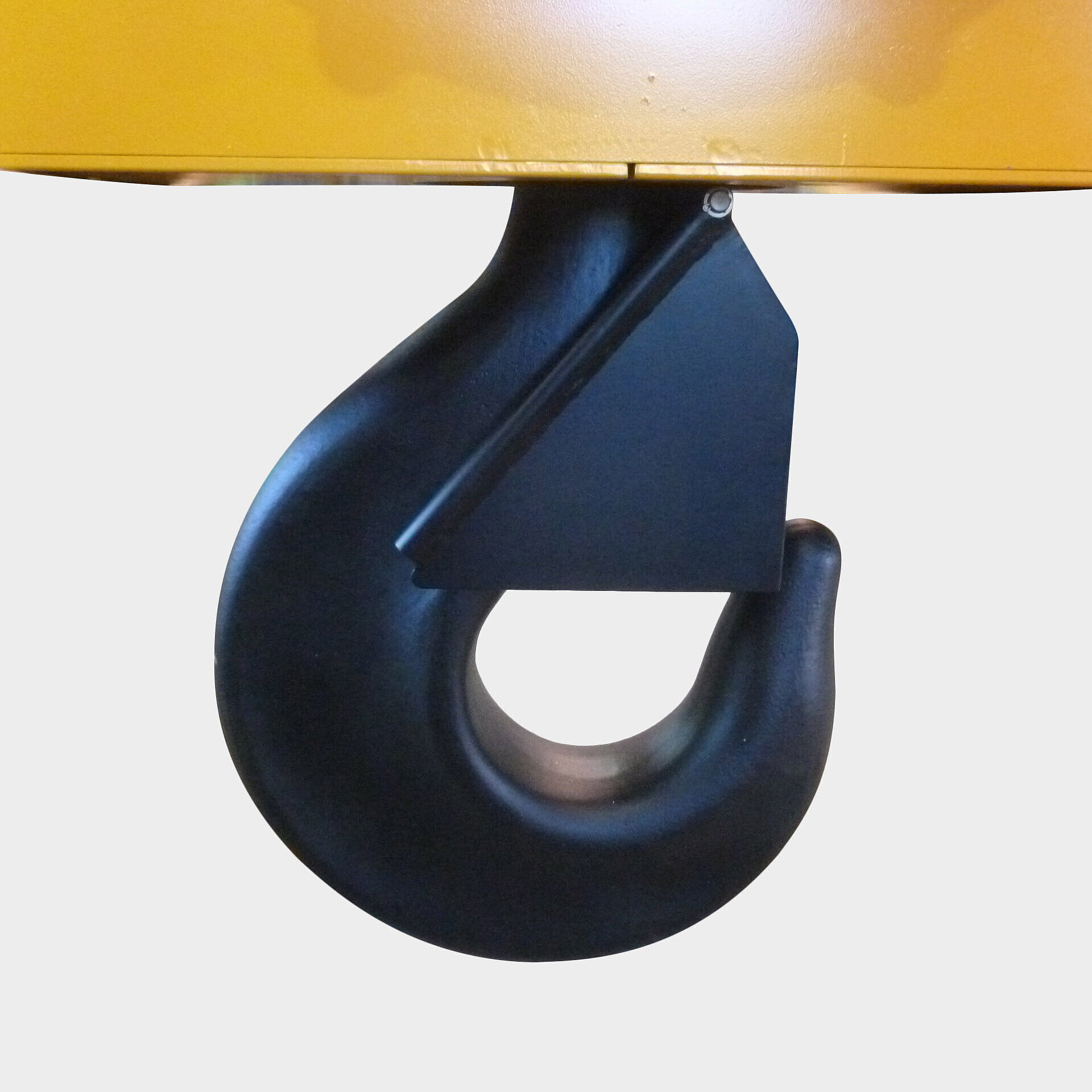

Sturdy jaw latch in metallurgical plant design
open

Sturdy jaw latch in metallurgical plant design
  • Reinforced safety latch, particularly suitable for load-bearing equipment that must be placed on the load due to its design
  • The robust design prevents damage when in contact with the suspension lug of the load-bearing equipment
  • Particularly stable and resistant for use in metallurgical operations
Load more
[Translate to English:] Kranunterflaschen

All important data, dimensions, and specifications
at a glance – for your planning and safety.

Technical details

WIMO Crane hook blocks – safe load handling with electromechanical hook drive

WIMO hook blocks are designed for heavy loads and offer a reliable, durable solution for crane operation. The integrated, electromechanical hook drive with gear brake motor ensures safe, sensitive rotation of the load hook – protected by a slip clutch against overload or mechanical damage.
Ideal for crane systems with special requirements in terms of safety, ease of maintenance, and customization.

Technical features

  • Load capacity: individual
  • Dead weight: individual
  • Load hook: Load hook according to DIN 15401 or DIN 15402 with safety latch
  • Hook drive: Electromechanical with gear brake motor and slip clutch
  • Rotation range: unlimited / speed approx. 1.5 rpm
  • Rope pulleys: Welded round plate design with deep groove ball bearings
  • Construction height (center of rope pulley – hook support): Individual
  • Connected load: individual
  • Electrics: Fully wired with terminal box (without control system)

Typical areas of application

  • Crane systems in steel construction and mechanical engineering
  • Automated load handling at high cycle rates
  • Heavy-duty handling in production lines
  • Systems with electrified load handling equipment

Your advantages

  • Customized solution: tailor-made design to meet your requirements
  • Reliable technology: proven components and many years of experience
  • Durability: thanks to overload protection in the hook drive
  • Low maintenance: minimized operating costs thanks to robust design
  • Spare parts supply: long-term availability ex works
  • Service: testing and repair services directly from the manufacturer
  • Quality: manufactured in Germany

Additional equipment (selection)

  • Rotation range limitation: Mechanical/electrical (e.g., 320°), incl. socket for additional devices
  • 4x90° rotation angle cut-off: For precise positioning
  • Soft start: via SEW converter
  • Integrated weighing device: with LED display
  • Radio transmission: Wireless transmission of weighing data
  • Motorized safety latch actuation: Controlled hook locking
