PAPER ROLL TONGS
In branches of industry such as printing, large and heavy paper rolls often need to be transported. Paper roll tongs, paper roll grippers or TambourSpreaders are used for this purpose. Paper roll tongs from WIMO® enable rapid and safe paper roll transportation and are designed for a very long service life.
Like all WIMO® products, all paper roll tongs that we produce are individually designed for the relevant application scenario. The circumstances on-site are taken into consideration and utilised to optimal effect. This results in innovative and high-performance special-purpose designs. Our solutions also enable, for example, paper rolls to be stored in particularly confined spaces to save on space and storage costs. Our specially developed slewing gear makes it easier to position the paper rolls when placing them into storage. If necessary, multiple rolls can also be stored on top of one another.

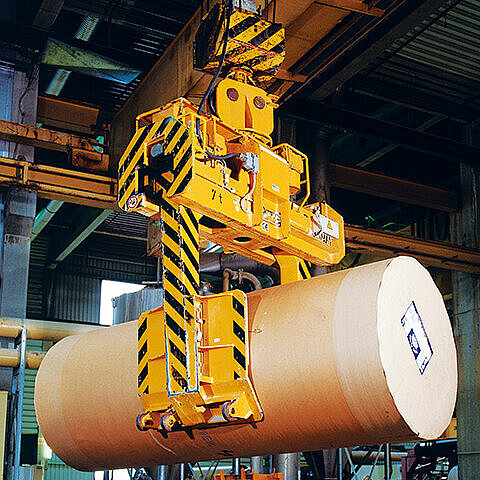

Paper roll tong with motorized tong arm and rotary drive
- For different roll sizes thanks to prismatic mounting shells
- Attachable rollers for gentle floor contact in hall corridors
- Shut-down strips prevent lateral pressure on the transported goods
- Load locks prevent unintentional opening under load

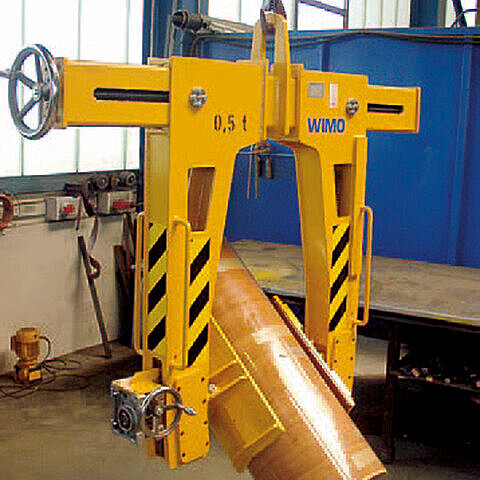

Roller turning tong with manual clamping and turning device
- Load-dependent clamping force amplification for secure hold
- Manual tong arm adjustment and turning device via hand wheel
- Plastic prisms with protective coating to protect sensitive rollers
- Easy to maintain thanks to replaceable supports

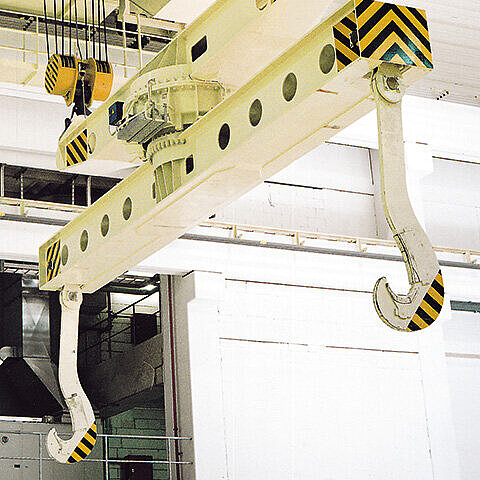

Tambour spreader with motorized horizontal rotation device
- Robust rotary joint for precise positioning of large paper rolls
- Articulated long hooks protect against damage
- Replaceable wear protection on hooks minimises maintenance costs
- Ideal for long-term operation under high mechanical stress
WIMO paper roll tongs, grippers, and drum crossbars are specially designed for the reliable transport of large and heavy paper rolls. They are used wherever maximum precision, material protection, and efficiency are required – e.g., in paper manufacturing, the printing industry, or warehouse logistics.
Each solution is individually tailored to the structural conditions and work processes on site, thus ensuring maximum operational safety and durability.
Technical features
- Load capacity: adapted to roll weight and diameter
- Variants: tongs, grippers, long hook crossbars, rotating crossbeams, drum spreader
- Optional: integrated slewing gear for precise positioning
- Construction: robust design for continuous operation
- Safety functions: clamping force monitoring, load securing, optional soft grip pads
Technical innovations (optional)
- Specially developed rotating mechanism for ergonomic and precise roll alignment
- Special designs for storing multiple rolls on top of each other
Your advantages in use
- Safe handling of heavy rolls – even in confined spaces
- Space-saving storage thanks to precise pick-up and precise placement
- Efficient processes thanks to fast pick-up and rotation of the rollers
- Individually designed for your machines, transport routes, and warehouse layouts
- Low maintenance thanks to durable assemblies and high-quality surface protection
Typical areas of application
- Paper production & printing industry
- Roll storage & shipping logistics
- Loading and unloading of trucks or rail cars
- Automated material flows in paper mills
Please contact us here.
