Sheet metal tongs
Sheet metal tongs are used in many different branches of industry and placed in storage for further processing. If necessary, the heavy sheet metal is transported within the production process to the intended place of use. Sheet metal tongs from WIMO® are a custom-designed heavy goods transportation solution for this task.
The arms of the sheet metal tongs are adjustable on the longitudinal and lateral side, which enables sheet metal of different lengths and widths to be transported. The rotating support brackets are easy to position underneath the heavy load. The rotating support brackets also make it possible to use the equipment in confined spaces. This lifting technology solution from WIMO® makes it possible to transport multiple sheet metal packages at the same time. Thanks to the additional weld-on hooks on the sheet metal tongs, additional goods can also be transported. While forklifts require a lot of space, transporting sheet metal using tongs saves valuable storage space. The crane driver alone is responsible for mounting the load, with no additional person. An integrated slewing gear makes positioning easier, such as when loading goods onto a truck.
Pallet tong with spindle drive
- Version with rigid claws for standardized pockets
- Suitable for uniform pallet sizes
- Cut-off strips and load safety devices integrated as standard

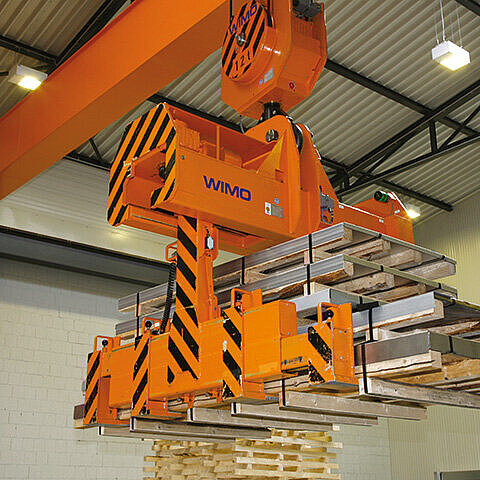

Sheet metal tong with manually adjustable telescopic prongs
- Eight claws, four of which are telescopic
- Manual adjustment for flexible package handling
- Particularly suitable for varying lengths in warehouses
Sheet metal tong with telescopic prongs for variable length
- 8 claws can be adjusted manually along the length
- Telescopic outer claws for different package formats
- Cut-off strips and load securing as standard

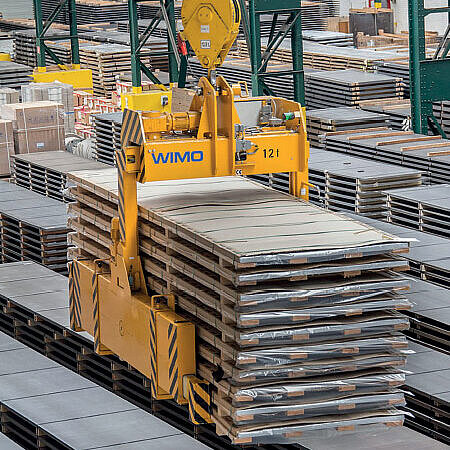

Sheet metal tongs with 8 adjustable clamping prongs (partially telescopic)
- Four telescopic and four manually adjustable prongs
- High flexibility for varying package lengths
- Space-saving design for confined storage areas

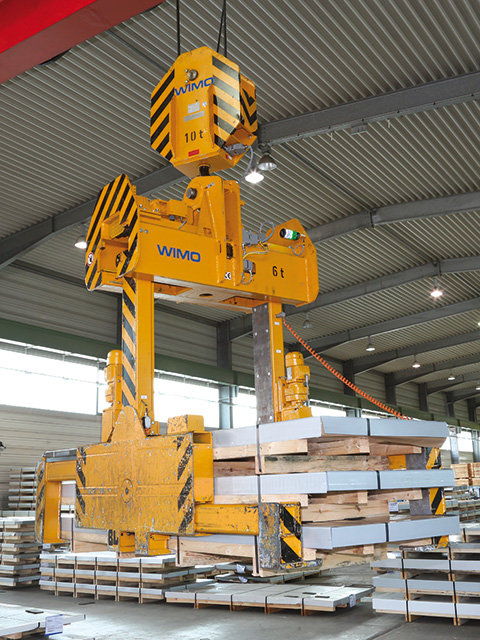

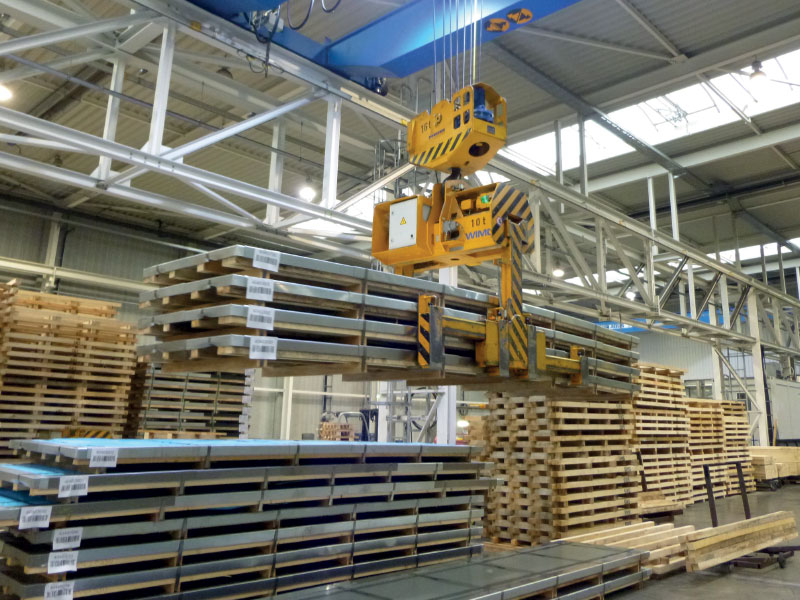

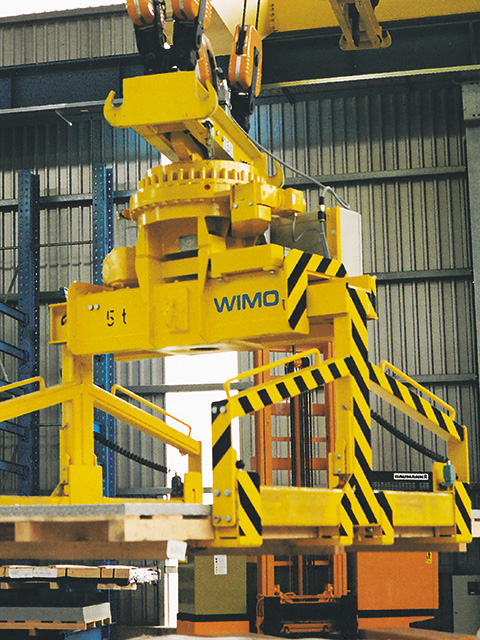

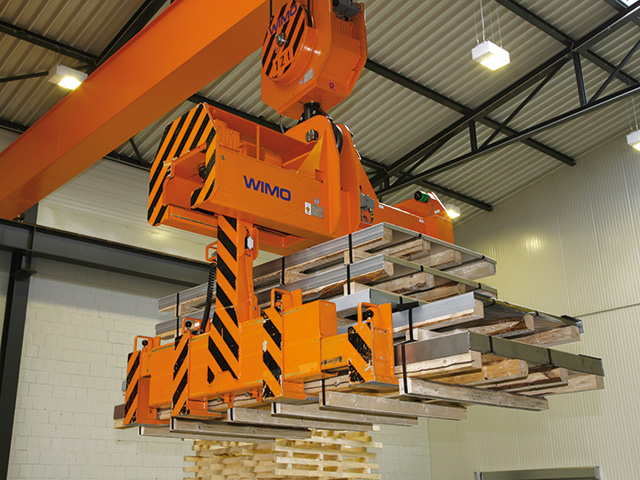

Sheet metal tong with motorized tong arm and rotary drive
- Combination of rotary and tong function
- Support prongs manually adjustable lengthwise
- Cut-off strips prevent contact forces
- Safe load support thanks to integrated safety device

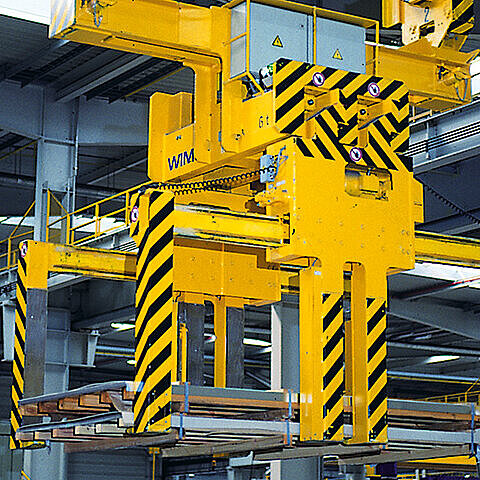

Sheet metal tong with 8 gripping prongs (4 motorized, 4 rigid)
- transversely movable prongs for flexible handling
- Crane suspension via two sliding bolts
- Protection via cut-off strips and load securing

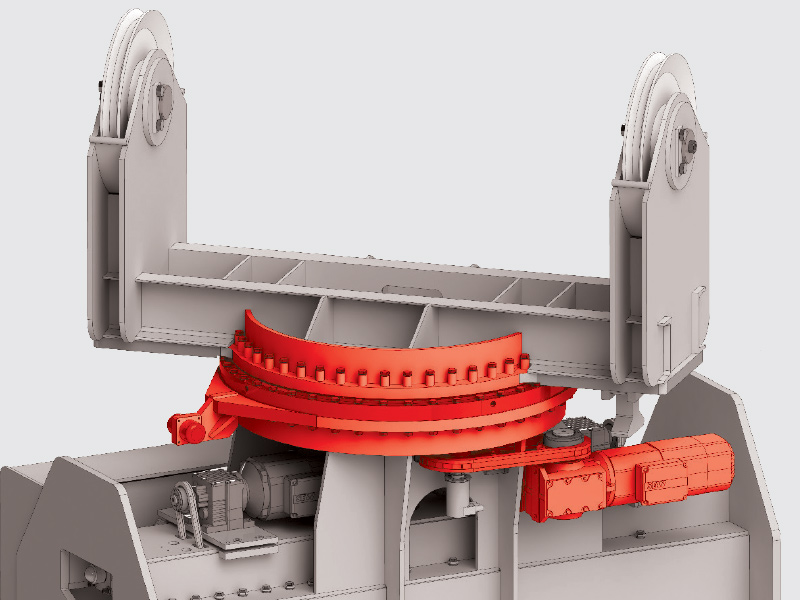

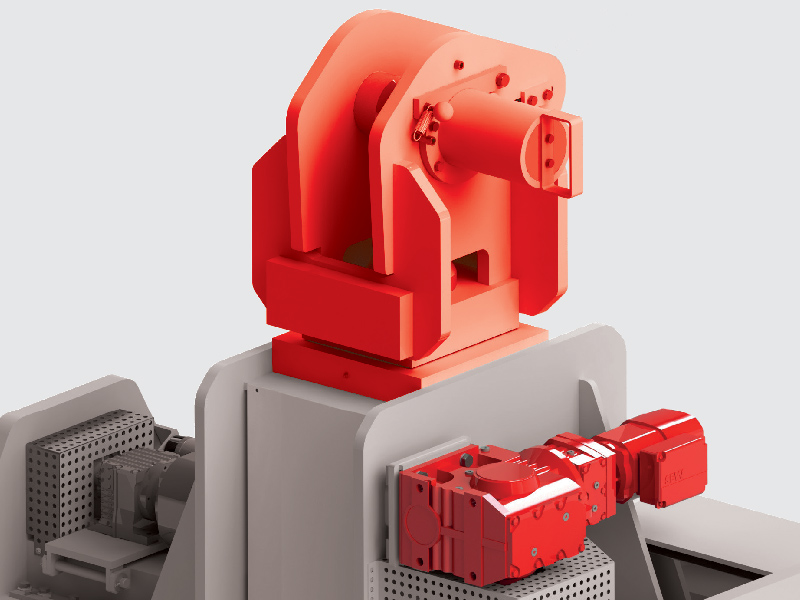

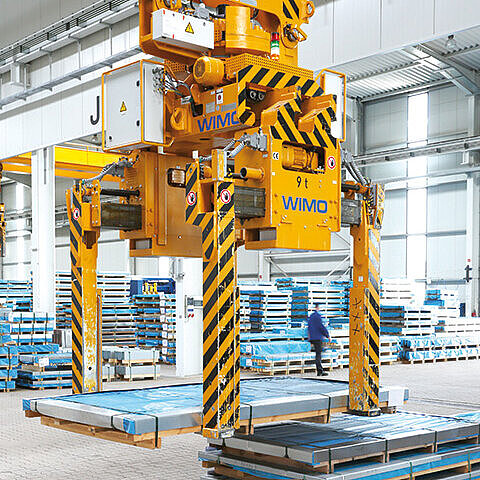

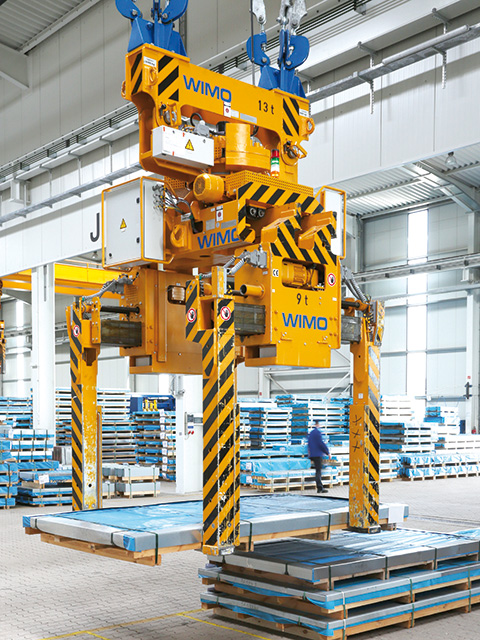

Sheet metal tong with horizontal rotation device
- Four motorized movable clamping arms (longitudinal/transverse direction) and 90° rotatable
- Compact design for confined spaces (e.g., truck/wagon loading)
- Cut-off strips prevent lateral pressure forces
- Integrated load securing devices for maximum transport protection

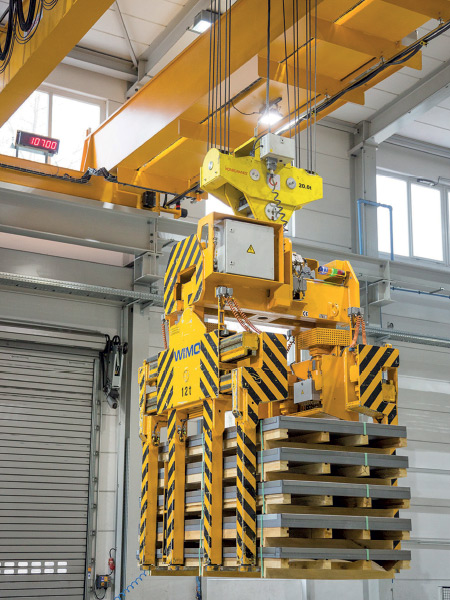

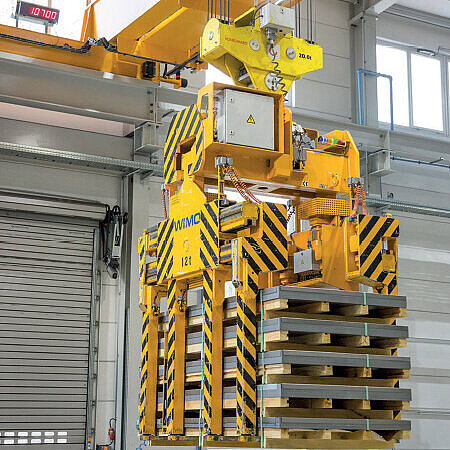

Sheet metal tong with 8 motorized movable prongs
- Four outer and four middle prongs motorized movable
- All prongs can be rotated 90°
- Ideal for confined spaces (truck/wagon handling)
- Material protection and safety thanks to cut-off strips and safety device

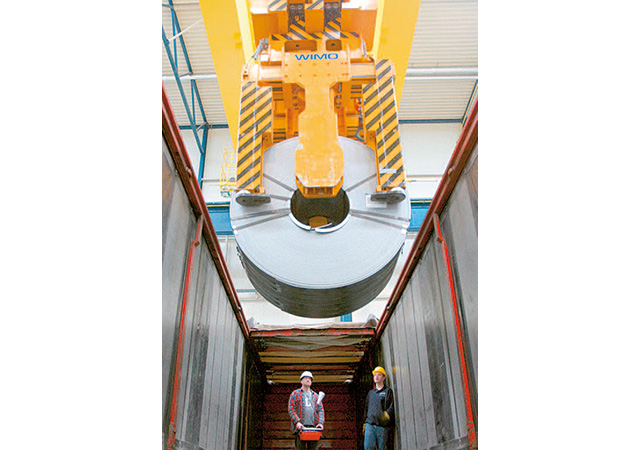

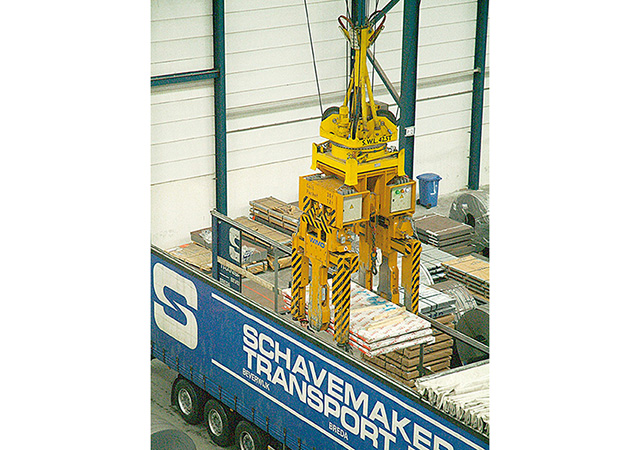

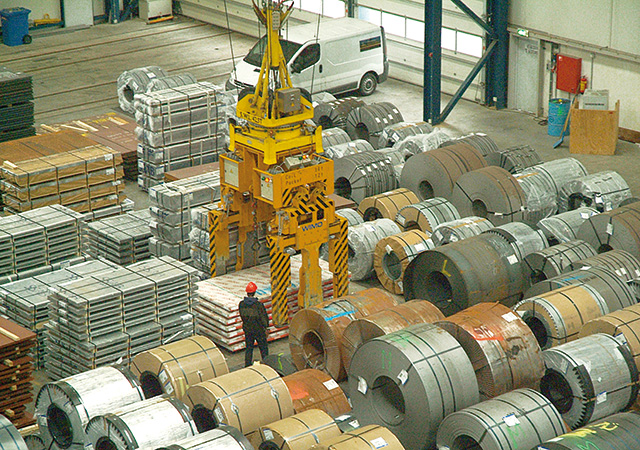

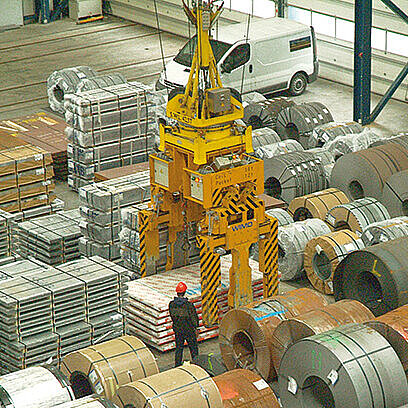

WIMO Innovation: Telescopic combination tong
- Universal tong with four motorized movable support prongs – can be moved lengthwise, crosswise, and rotated 90°
- Two inner gripping prongs specially designed for transporting coils – hinged for confined spaces
- Flexible use for handling sheet metal packages, palletized coils, and containers
- Ideal for loading trucks, railcars, and freighters in confined conditions
- One tong for many applications – saves time and reduces downtime
![[Translate to English:] WIMO®-Innovation: Kombizange in Teleskopausführung](/fileadmin/_processed_/5/7/csm_26_Kombizange-Teleskopausfuehrung_273a2c0a61.jpg)

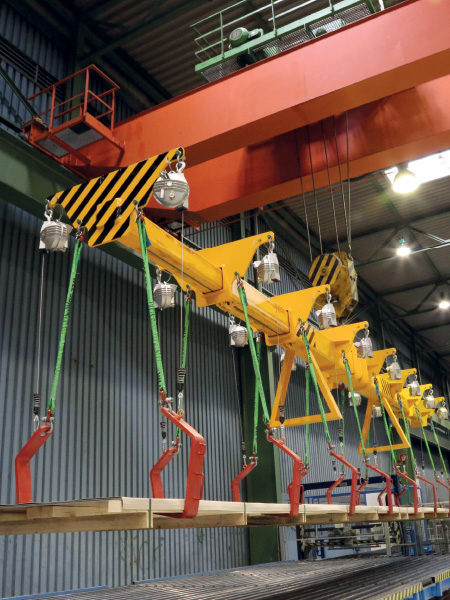

Plate hook traverse with spring balancers
- Plate hooks can be attached by hand and are self-adhesive
- Spring balancer system for automatic hook retraction
- Versions: rigid, telescopic, 3-part

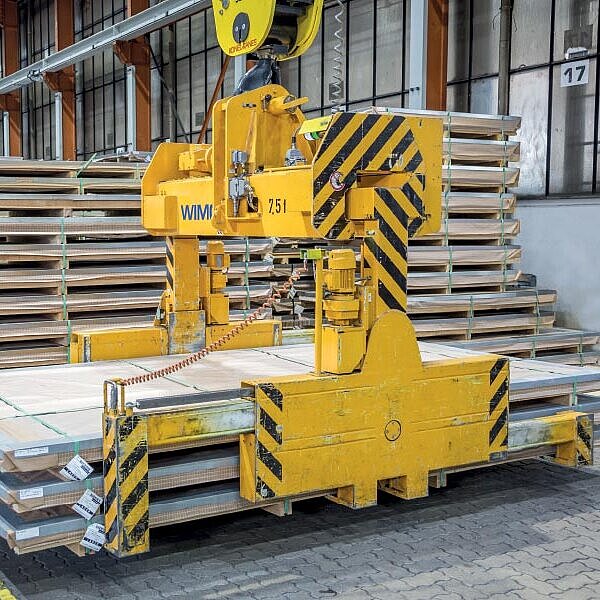

Sheet metal tong with partially rigid and partially movable prongs
- Motor-driven movable prongs, rigid inner prongs
- Accommodates varying package lengths without manual labor
- Ideal for warehouses with a wide range of variants

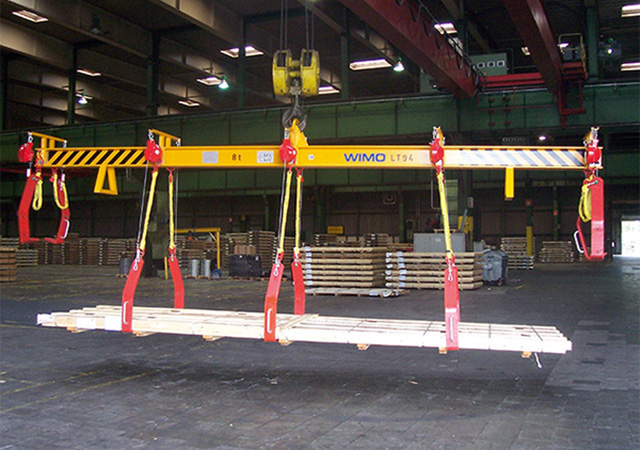

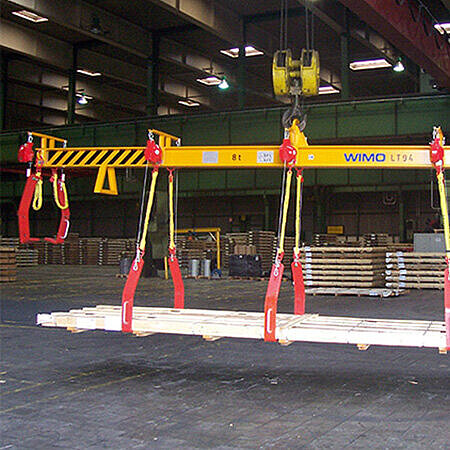

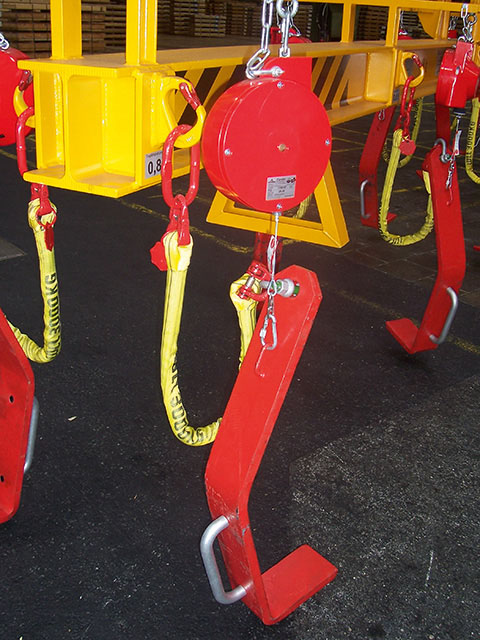

Spreader with spring-loaded system and plate hooks
- Hooks can be attached manually and remain in position
- Spring-loaded devices hold hooks in the upper position when empty
- Variants: rigid, telescopic, or 3-part
![[Translate to English:] Traverse mit an Federzügen aufgehängten Plattenhaken](/fileadmin/_processed_/5/e/csm_15_Traverse-Federzuegen-aufgehaengten-Plattenhaken_bc7593b712.jpg)

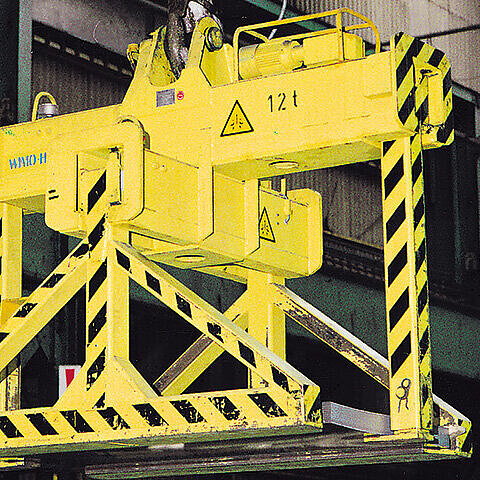

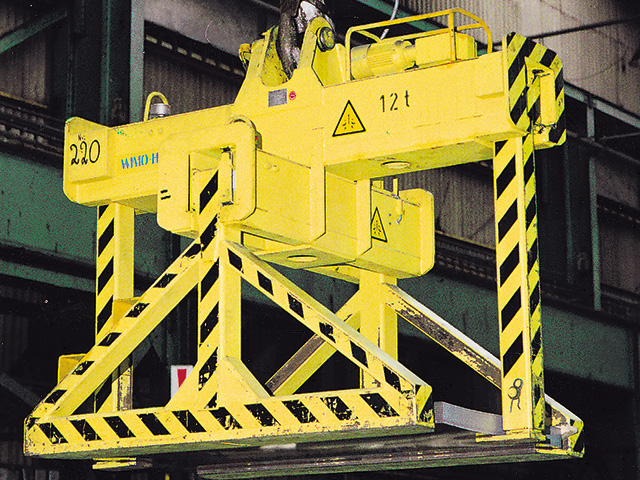

Sheet metal tong with four motorized tong arms
- Suitable for low and thin sheet metal packages
- Continuous mounting strips reduce surface pressure
- Front prongs prevent the sheets from bending
- Gentle and safe transport
Fork lift with counterweight compensation
- Accommodates two lengths thanks to foldable stop
- Forged tines for long service life
- Notch-free design without critical welds
- Maximum secure tine connection

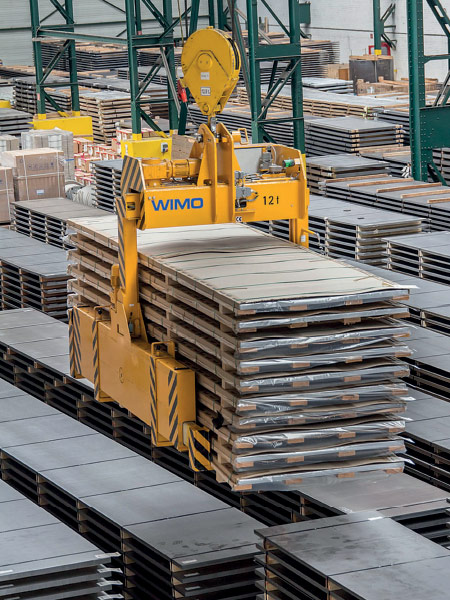

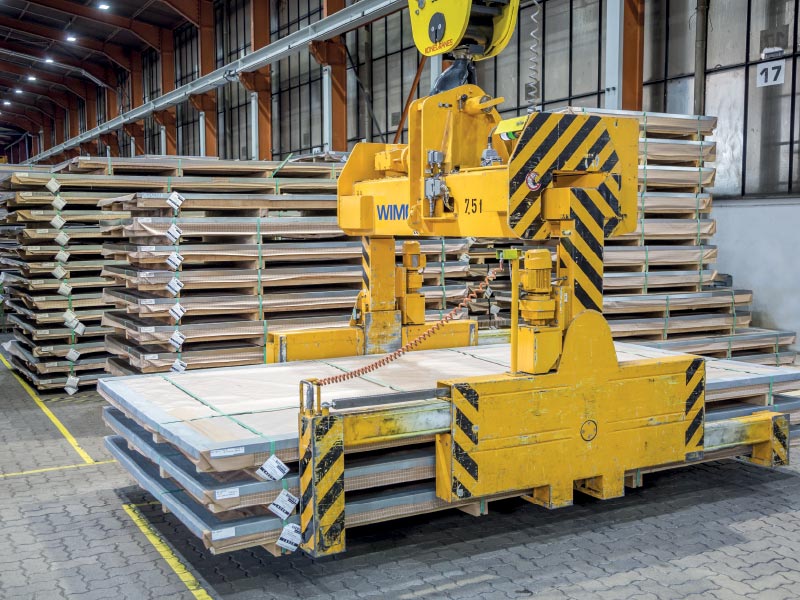

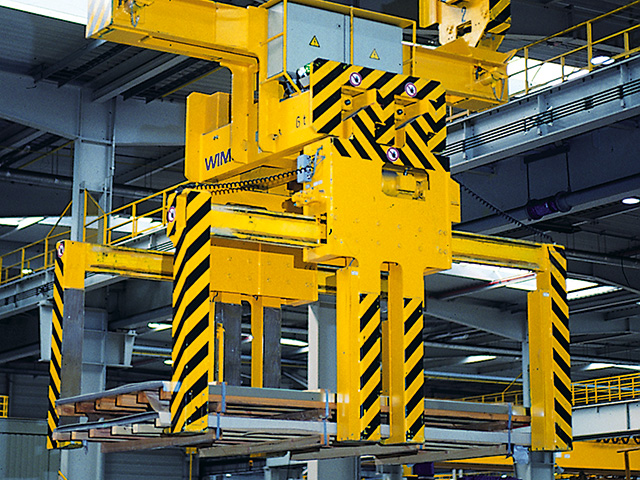

Sheet metal tong with adjustable gripping prongs (longitudinal/transverse)
- Motorized adjustment without manual intervention
- Ideal for varying package lengths
- Gentle transport thanks to shut-off strips
- Additional load securing cams for high safety

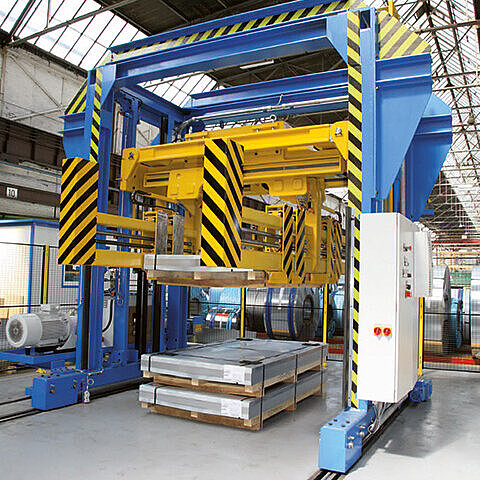

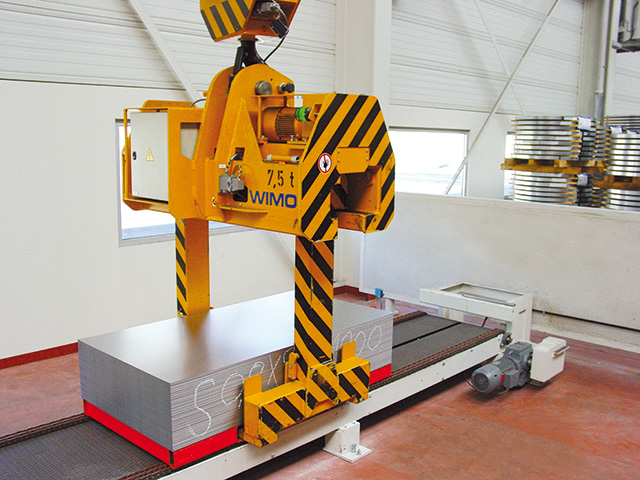

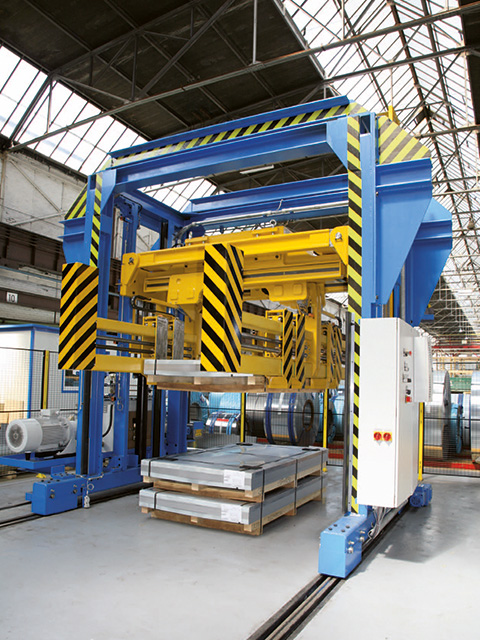

Sheet metal tong with spindle drive in an automated line
- Integration into fully automated packaging processes
- Motorized longitudinal/transverse prongs
- Process reliability for industrial applications

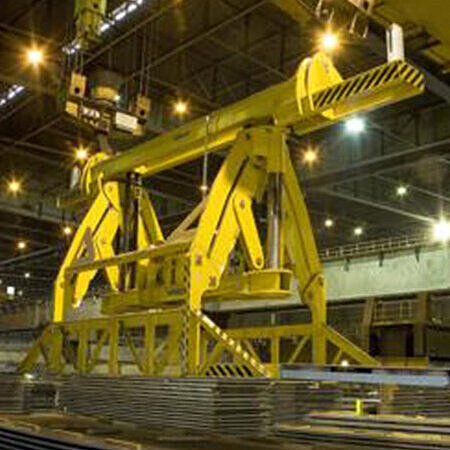

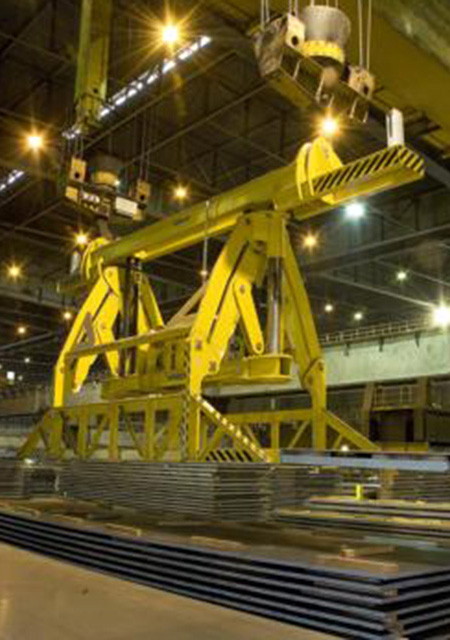

Scissor-type sheet metal tong with mounting rail
- Motorized tong arm drive
- Continuous mounting rails minimize pressure load
- Gentle handling of sensitive sheet metal packages
![[Translate to English:] Technische Details Blechpaketzangen](/fileadmin/user_upload/produktbilder/blechpaketzangen/01_Merkmale-Blechpaketzangen.jpg)
![[Translate to English:] Zubehör Blechpaketzangen](/fileadmin/user_upload/produktbilder/blechpaketzangen/02_Aufnahmepratzen-laengsseitig-motorisch-verstellbar.jpg)
Maximum safety and flexibility for material flow
WIMO sheet metal tongs offer a reliable, safe, and material-friendly solution for transporting and storing sheet metal. Thanks to innovative safety mechanisms and robust construction, they are ideal for demanding applications in the steel and metal industry, logistics, and port operations.
Ideal for
- Steel manufacturers
- Steel service centers
- Steel mills
- Freight forwarders & port logistics
- Metal processing companies

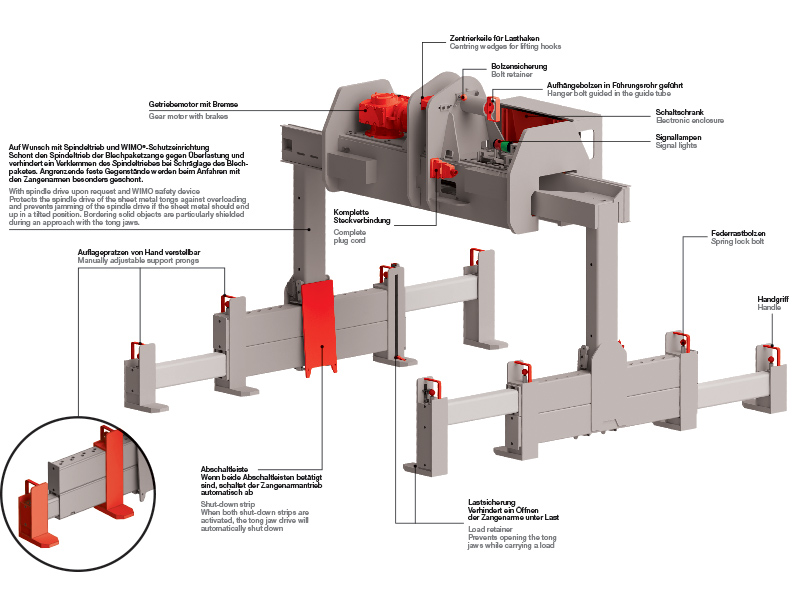

Technical specifications
Since each WIMO sheet metal tong is individually adapted to the respective application, the technical specifications are variable. All dimensions and load capacities can be requested directly via our technical inquiry form.
- Double load securing – prevents unintentional opening of the tongs arms
- Integrated shut-off bars – stop the closing movement when the load is completely undergripped
- Automated – optionally available with special sensors for automatic operation
- Slim design – ideal for space-saving storage and efficient loading of trucks
Advantages in use
- Safe handling – stable hold by gripping the load from below
- Gentle transport – no abrasion or damage from ropes or chains
- Time-saving & efficient – fast loading and unloading of trucks and ships
- Durable & reliable – robust construction for a long service live
Technical innovation
The WIMO sheet metal tongs are equipped with a patented spindle drive that ensures high precision, low maintenance costs, and maximum safety.
Typical areas of application
- Transport and storage of sheet metal packages – safe and efficient
- Loading and unloading of trucks and ships – fast coil handling
- Production lines – for optimized material flows in manufacturing
Compatibility and extensions
Standard crane mount, additionally:

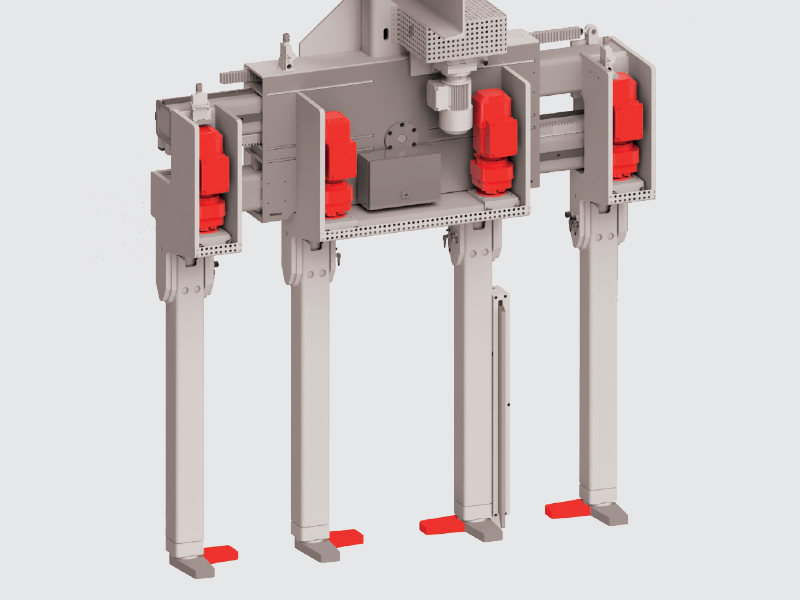

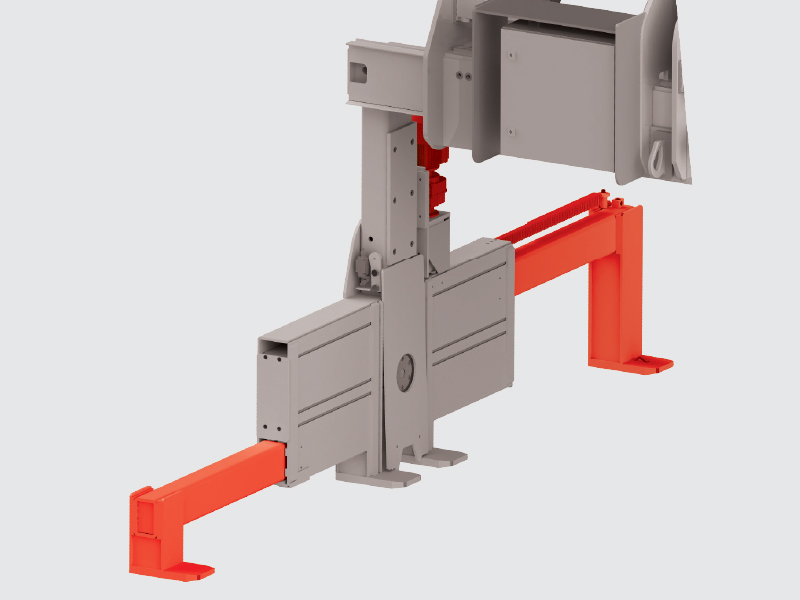

- Motor-adjustable support prongs on the long side
- Rotatable support prongs (90°) for flexible handling
- dditional accessories are shown in the images
Configure your sheet metal package tongs according to your requirements. Enter technical data here.
