Coil tongs

In many industrial enterprises, coils need to be transported, turned and placed into storage while raised. This needs to be done in a way that is as protective as possible for the materials and as safe as possible for employees. WIMO Hebetechnik offers innovative and durable heavy load transportation solutions for this purpose.

Coil tongs from WIMO® enable safe and rapid transportation and allow coils to be turned and placed into storage. Like all WIMO® products, all coil tongs are custom-designed for the individual application scenario. The circumstances on-site are taken into consideration and utilised to optimal effect. This results in innovative and high-performance special-purpose designs. Our coil tongs are designed for a very long service life.


Coil tong configure

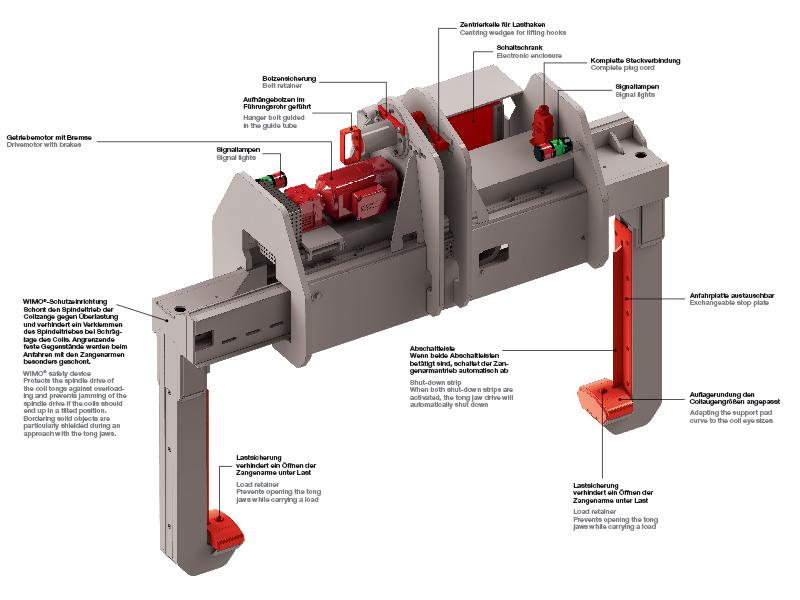

Features of the WIMO® telescopic-coil-tongs
open

Features of the WIMO® telescopic-coil-tongs

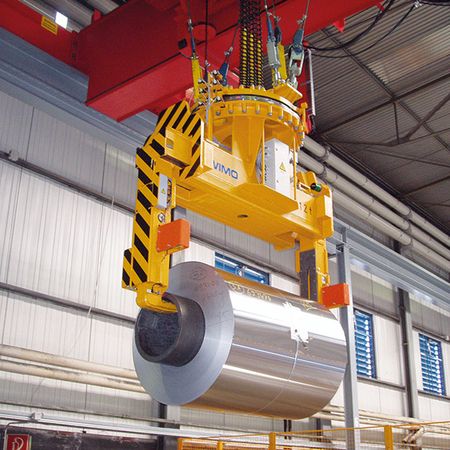

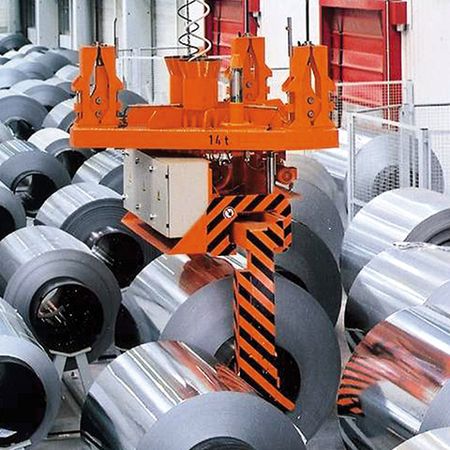

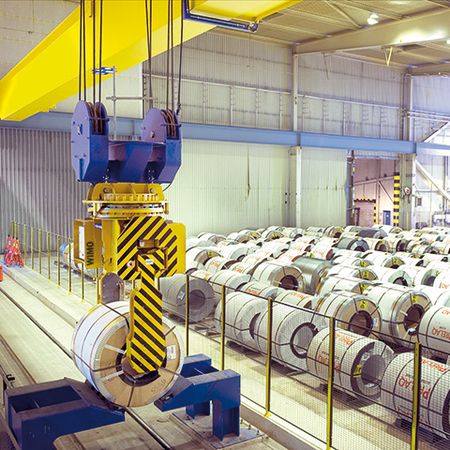

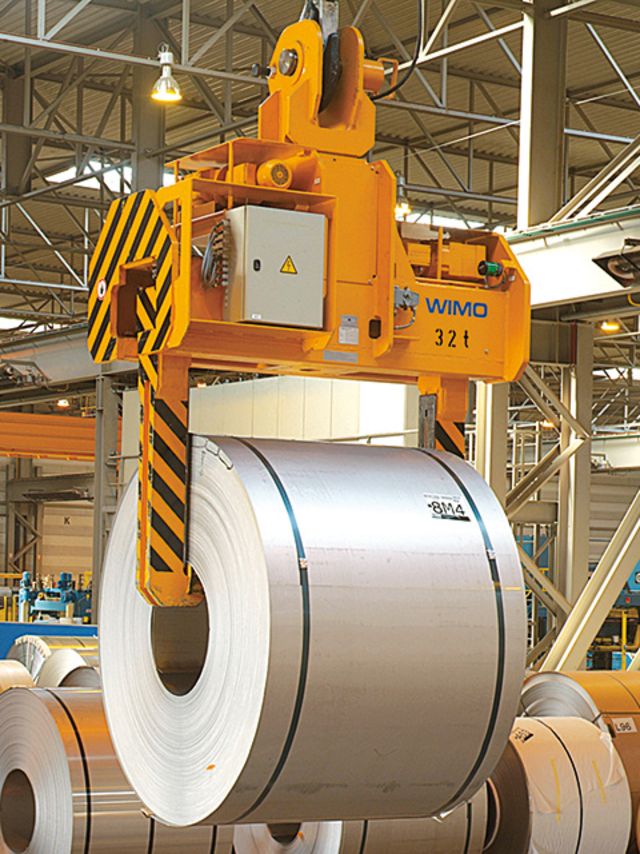

Telescopic coil tong with horizontal rotary drive
open

Telescopic coil tong with horizontal rotary drive

The coil tongs pick up the coils on the transfer station in front of the automatic area. For this purpose, the arms are moved separately so that they can also pick up coils that have not been placed in the exact position. The clamps are folded in during the approach to the coil. Light barriers are used to check whether the gripper arms are positioned centrally to the coil eye. The separately movable gripper arms approach the coil. In order to protect the coil, the closing movement is stopped by switch-off bars leading ahead. When the motor has been stopped via the shut-off bars in both gripper arms, the claws are folded down to pick up the coil. While the coil is being lifted, the automatic centre compensation brings the coil into the centre of the clamp housing. The horizontal slewing gear enables any position during storage via a ball bearing slewing ring. The tongs are automatically lubricated via a lubricator.

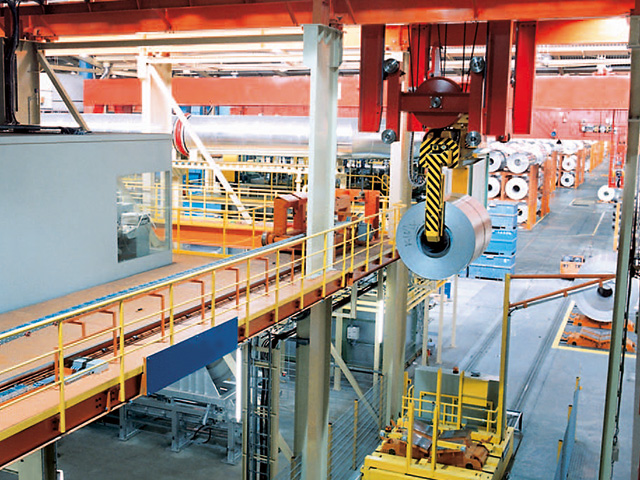

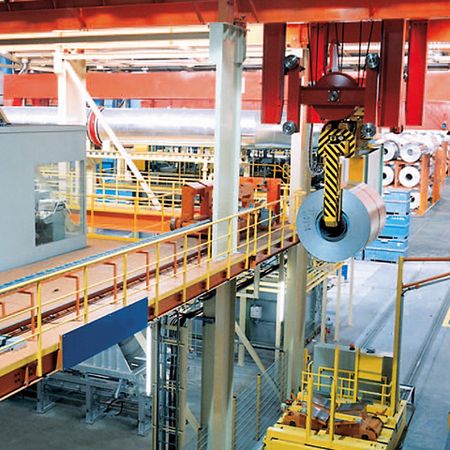

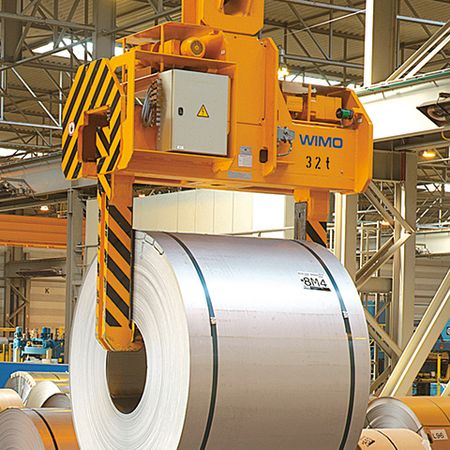

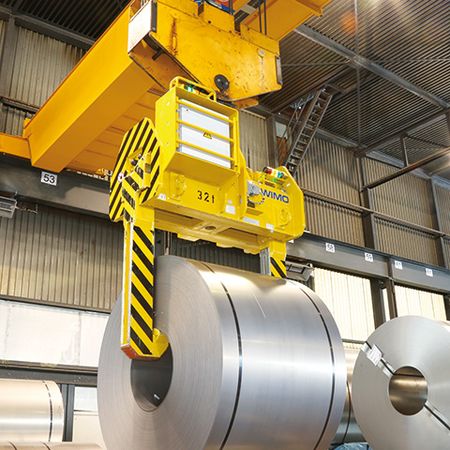

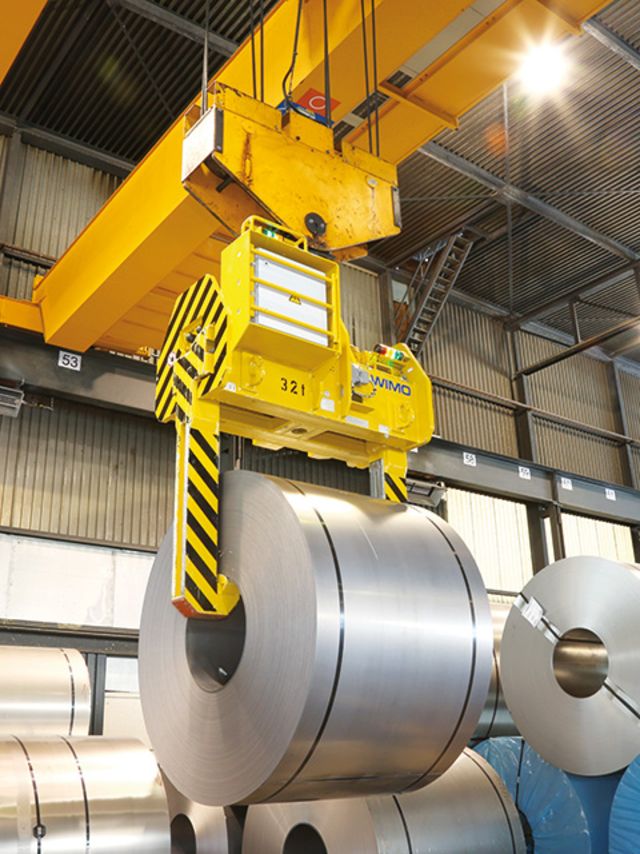

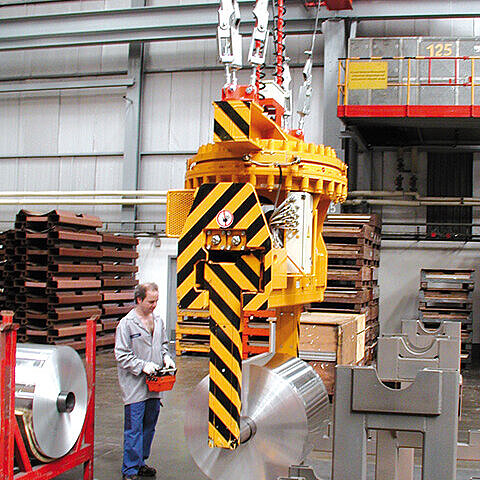

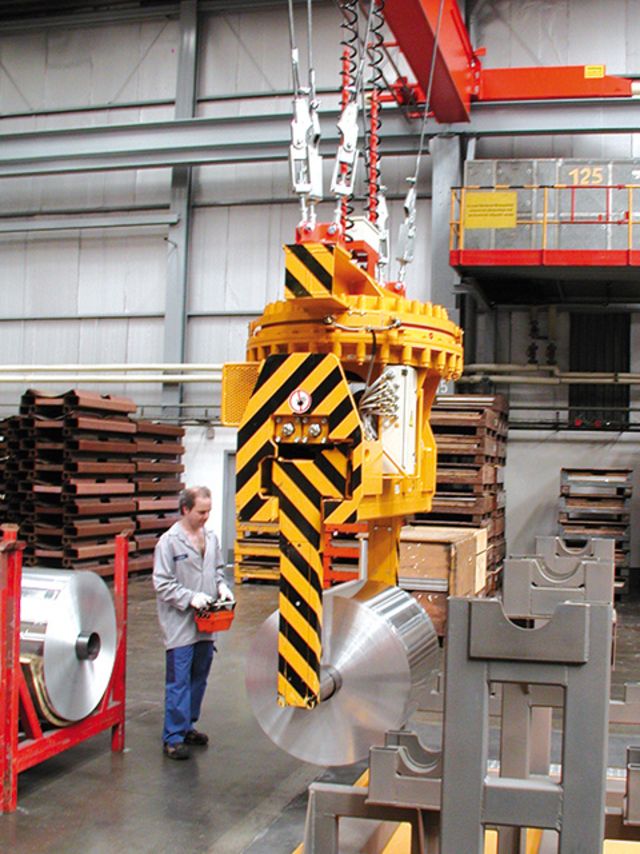

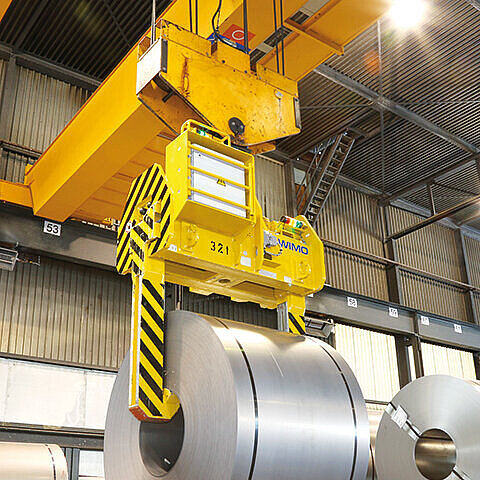

Telescopic coil tong with spindle drive
open

Telescopic coil tong with spindle drive

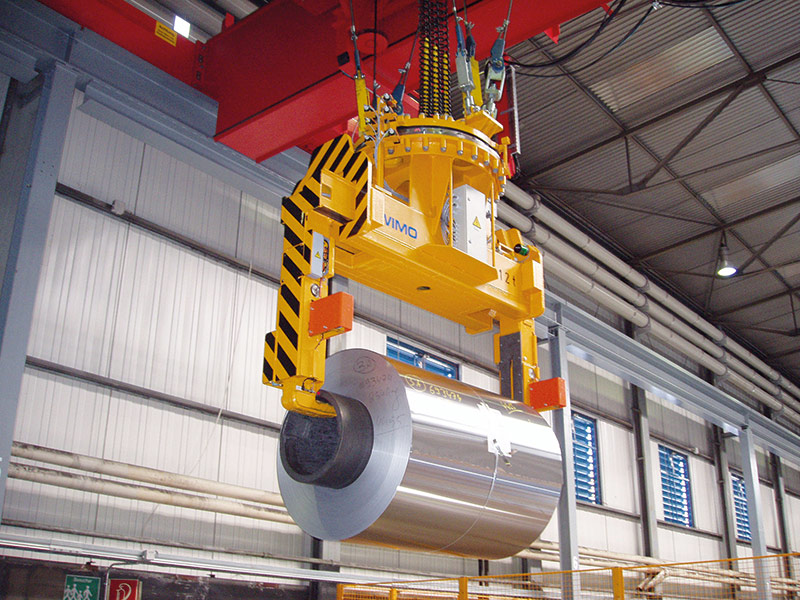

Telescopic coil tong with spindle drive
open

Telescopic coil tong with spindle drive

The built-in horizontal slewing gear allows coils to be stored in differently aligned rows.

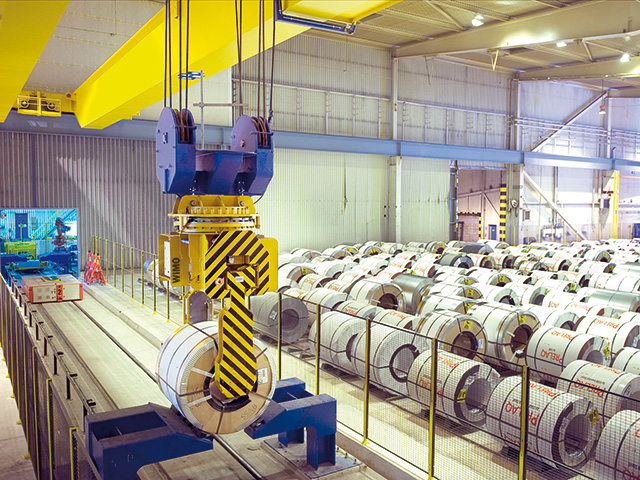

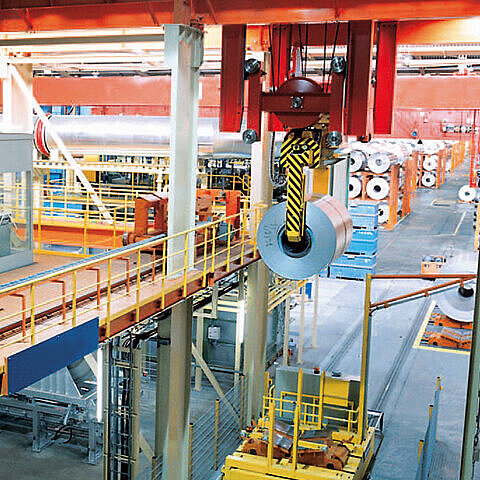

Telescopic coil tong with spindle drive, separate moving tong arms
open

Telescopic coil tong with spindle drive, separate moving tong arms

with spindle drive, separately movable tong arms and sensors. The coil tongs are fixed to the crane via 2 rope pulleys. The tongs are fixed in the uppermost lifting position. The coil tongs pick up the coils on the transfer station in front of the automatic area. For this purpose, the arms are moved separately so that they can also pick up coils that have not been placed in the exact position. The clamps are folded in during the approach to the coil. Light barriers are used to check whether the gripper arms are positioned centrally to the coil eye. The separately movable gripper arms approach the coil. In order to protect the coil, the closing movement is stopped by switch-off bars leading ahead. When the motor has been stopped via the shut-off bars in both gripper arms, the claws are folded down to pick up the coil. While the coil is being lifted, the automatic centre compensation brings the coil into the centre of the clamp housing.

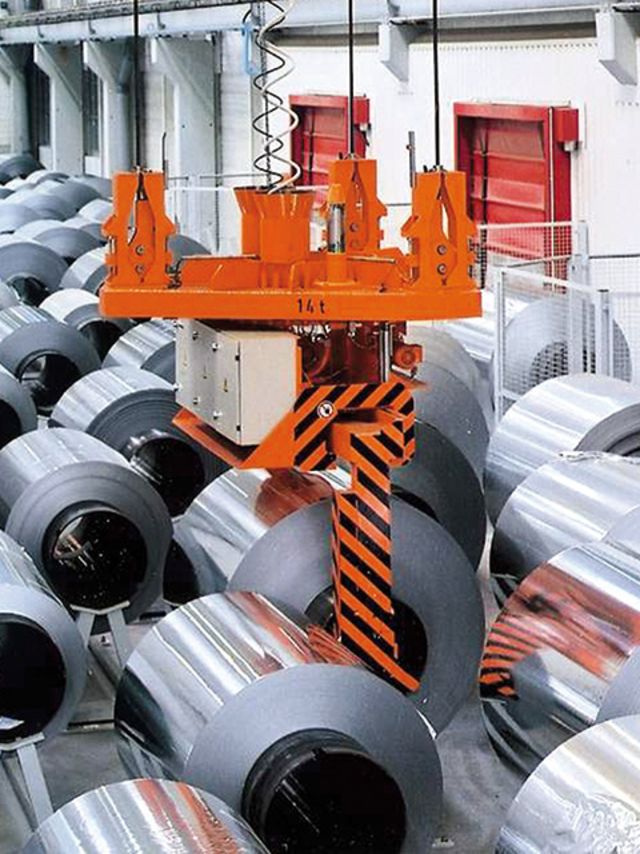

Telescopic coil tong with horizontal rotary device
open

Telescopic coil tong with horizontal rotary device

Telescopic coil tong with horizontal rotary device
open

Telescopic coil tong with horizontal rotary device

Foldable claws enable gentle coil pick-up as well as tight storage of the coils. This means that only the space for the vertical tong arm bars is required.

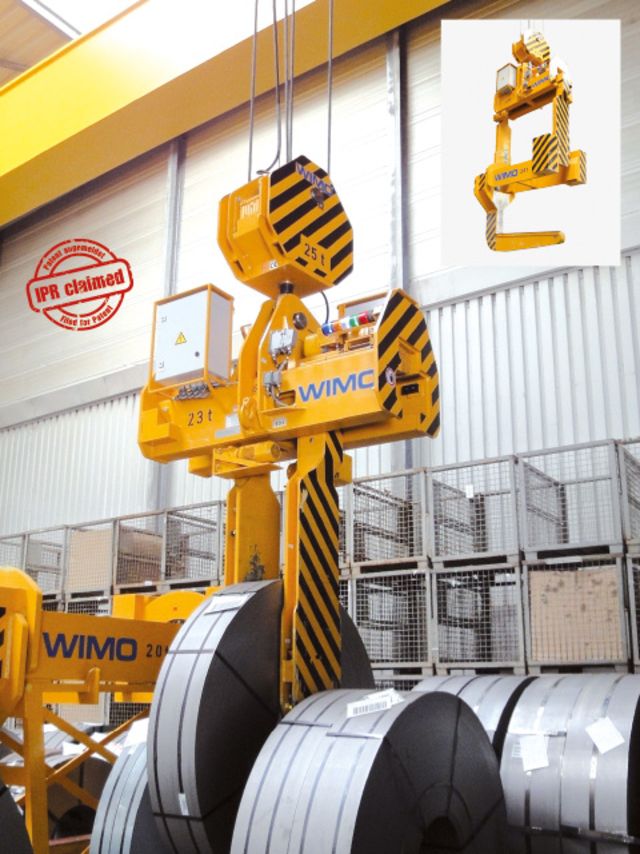

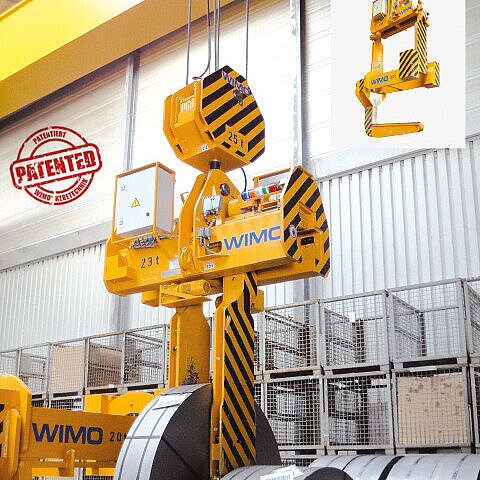

IPR claimed: Slit strip gripper with spindle drive and folding support brackets
open

IPR claimed: Slit strip gripper with spindle drive and folding support brackets

Spindle drive

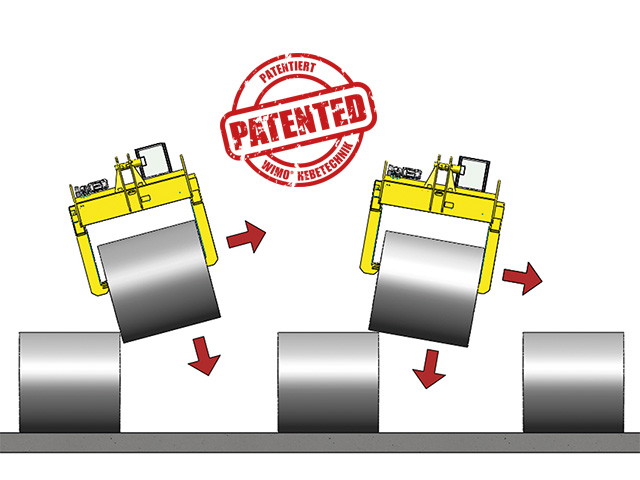

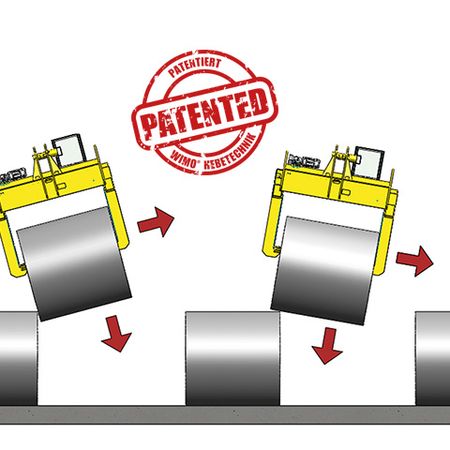

Patented: WIMO® Load arrestor for telescopic tongs
open

Patented: WIMO® Load arrestor for telescopic tongs

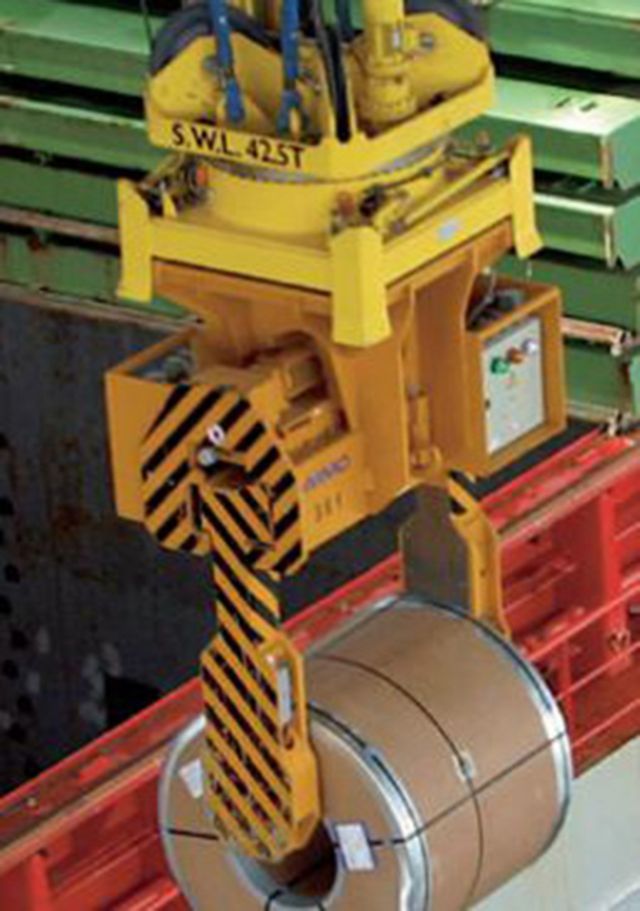

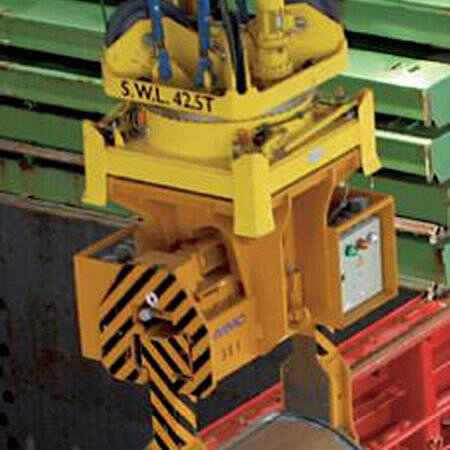

Telescopic coil tong with spindle drive, particulary designed for use in ports
open

Telescopic coil tong with spindle drive, particulary designed for use in ports

with spindle drive, rotatable via particularly stable ball bearing slewing ring. The folding claws are a great advantage, especially for loading and unloading ships. This means that the gripper arms require less space when approaching the coil. The clamps are only folded down when the tong arms are in the optimum position. This way, the folding clamps make it easier to enter the coil eye and protect the coil.

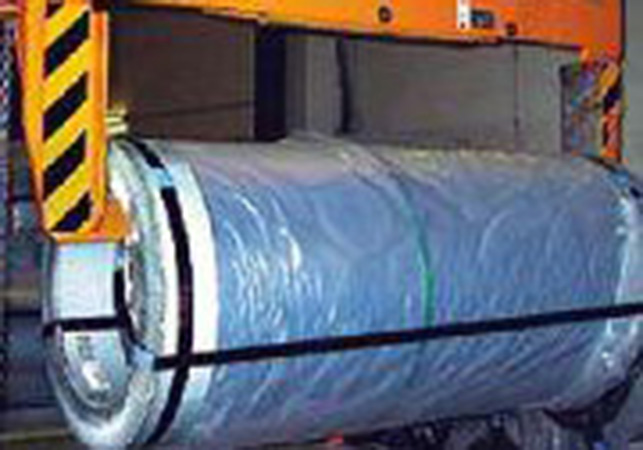

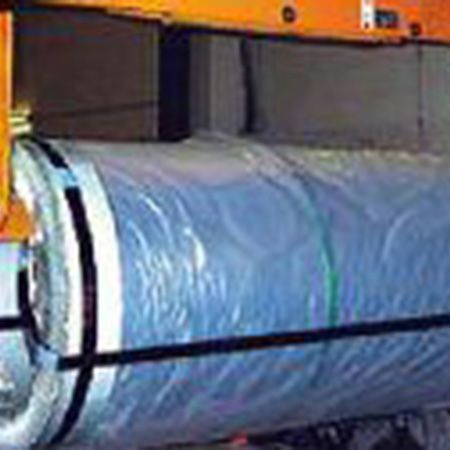

Telescopic coil tong in mechanical design
open

Telescopic coil tong in mechanical design

The cost-effective solution for manual coil transport. The investment is comparable to ropes and belts, but the transport is significantly safer for people and material.

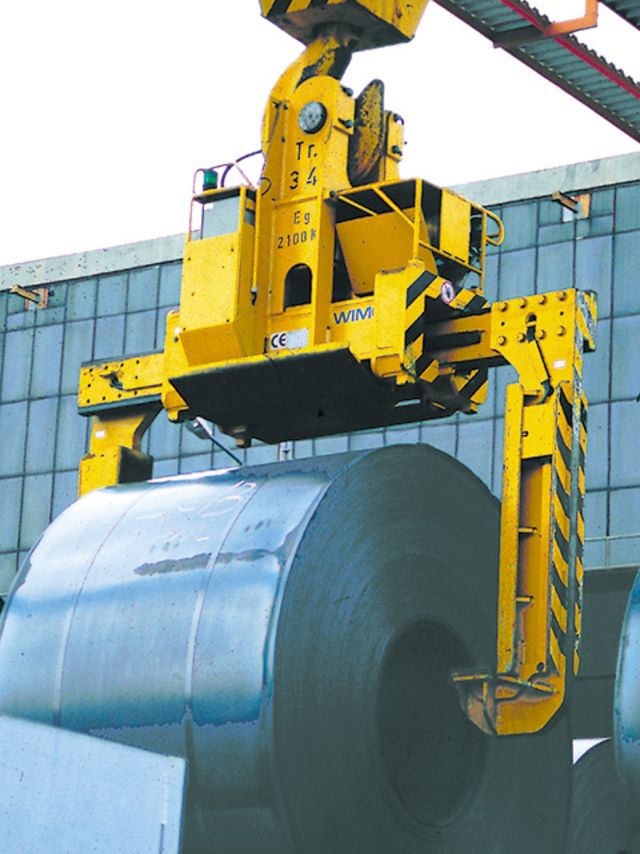

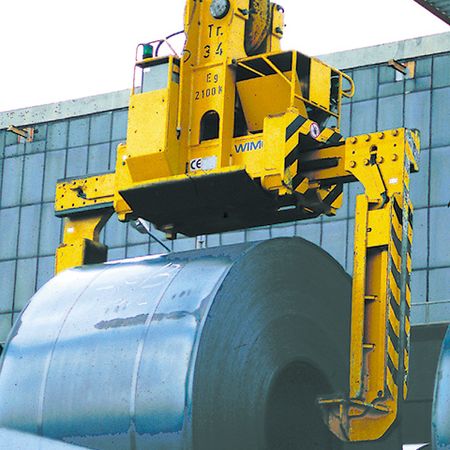

Telescopic coil tong with rack pinion drive system
open

Telescopic coil tong with rack pinion drive system

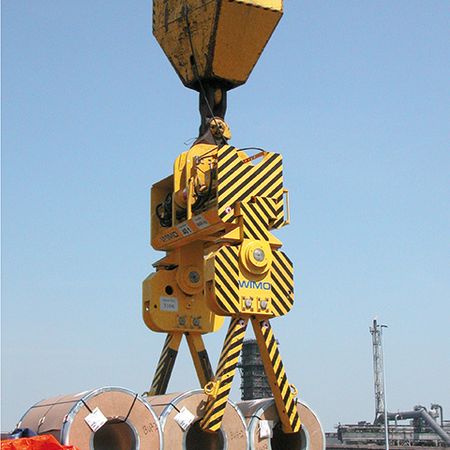

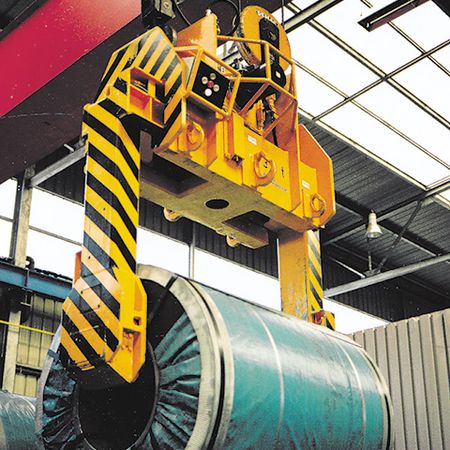

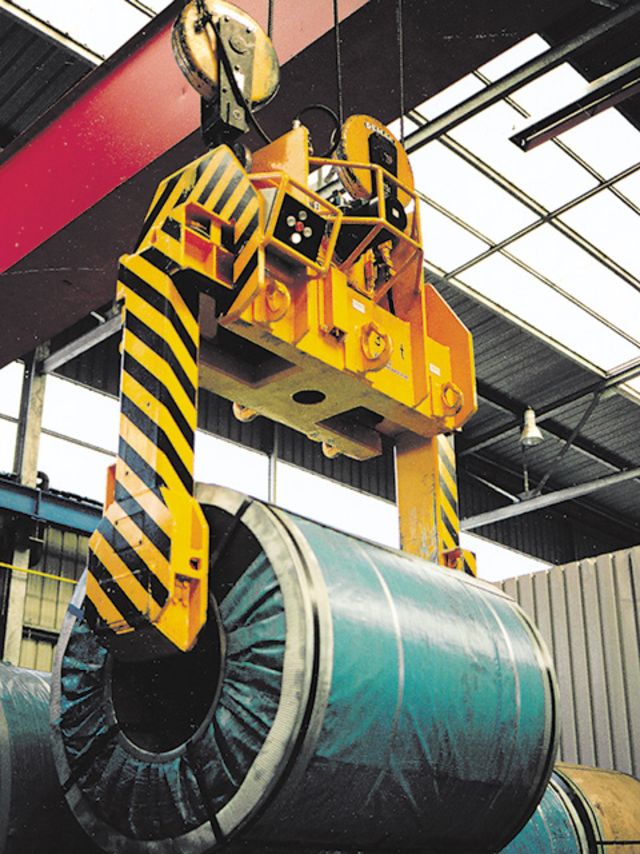

Telescopic coil tong with hydraulic drive system
open

Telescopic coil tong with hydraulic drive system

and folding support prongs

Telescopic coil tong with chain dirve system
open

Telescopic coil tong with chain dirve system

and powered horizontal rotary drive unit

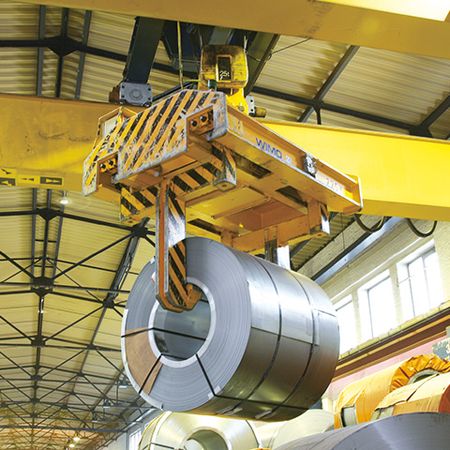

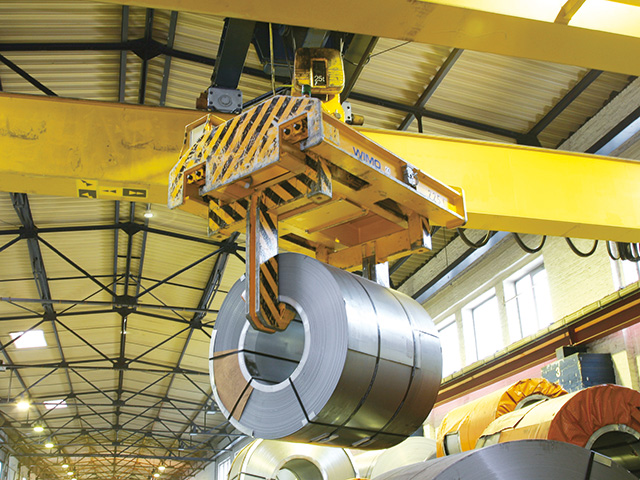

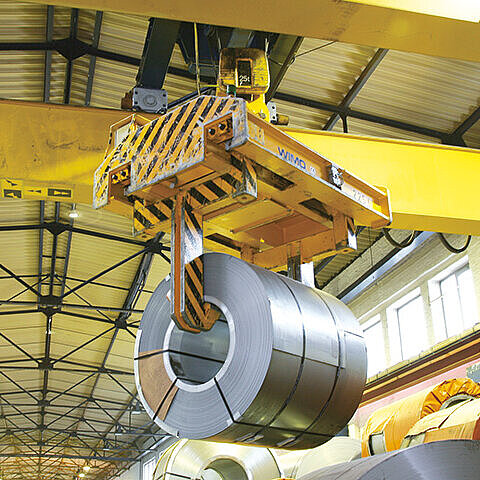

Telescopic coil tong with extra low headroom
open

Telescopic coil tong with extra low headroom

Ideal solution for low hall heights or when many coils are stacked on top of each other and the hall height is restricted as a result.

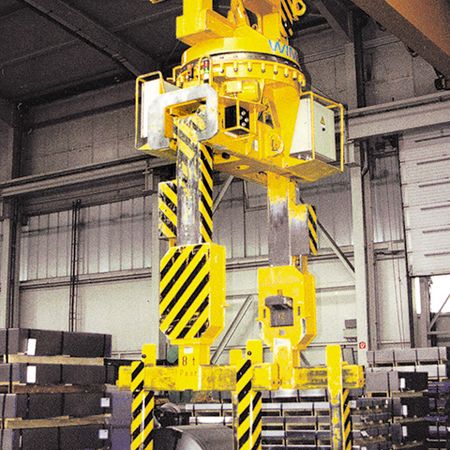

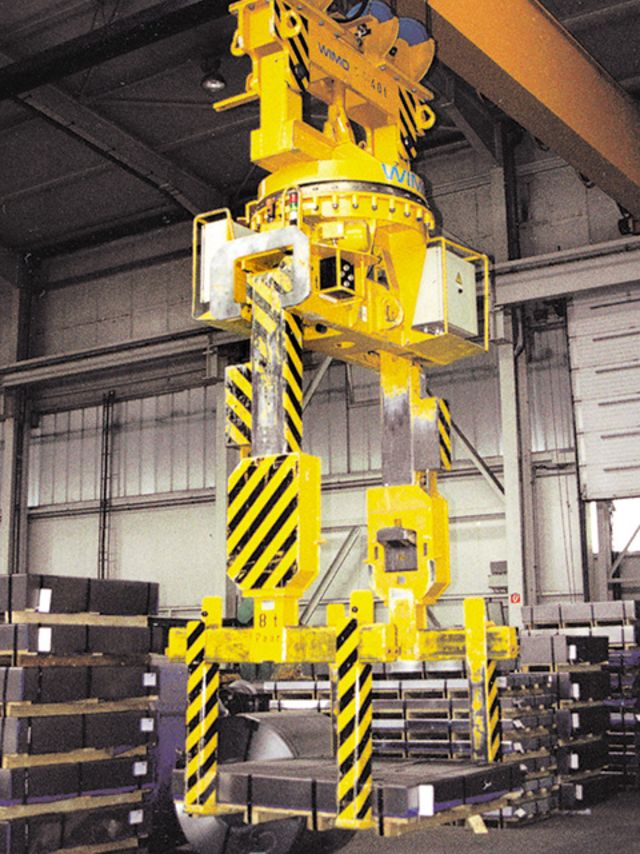

Attachment for transporting coils and bundles of sheet metal loaded on pallets
open

Attachment for transporting coils and bundles of sheet metal loaded on pallets

Ideal for occasional changes of goods to be transported. Designed for fast and safe slinging without time-consuming changing of the load handling attachment. The sheet metal package adapter is placed in a trestle. The coil tongs retract into the adapter with the claws on both sides. By picking up the adapter, the load safety device of the coil tongs switches. The load safety device prevents the tong arms from opening under load - in this case "under the load of the adapter". Even in the event of accidental incorrect operation, the tong arms will not open. Safe transport of the sheet packs is guaranteed.

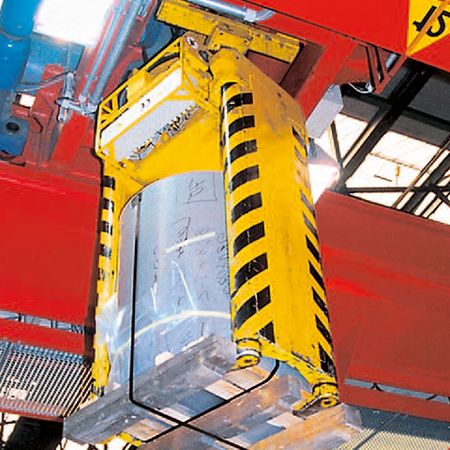

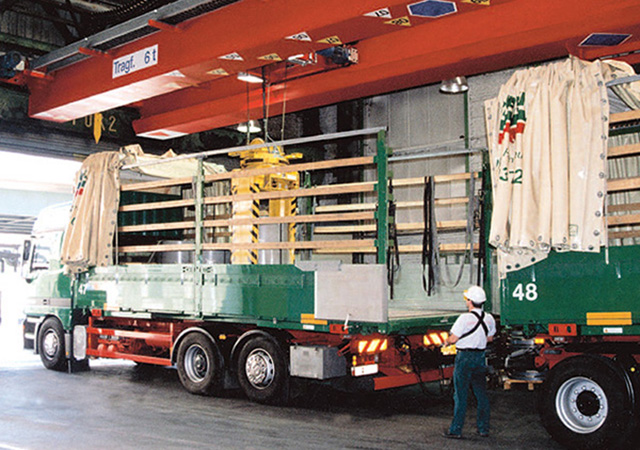

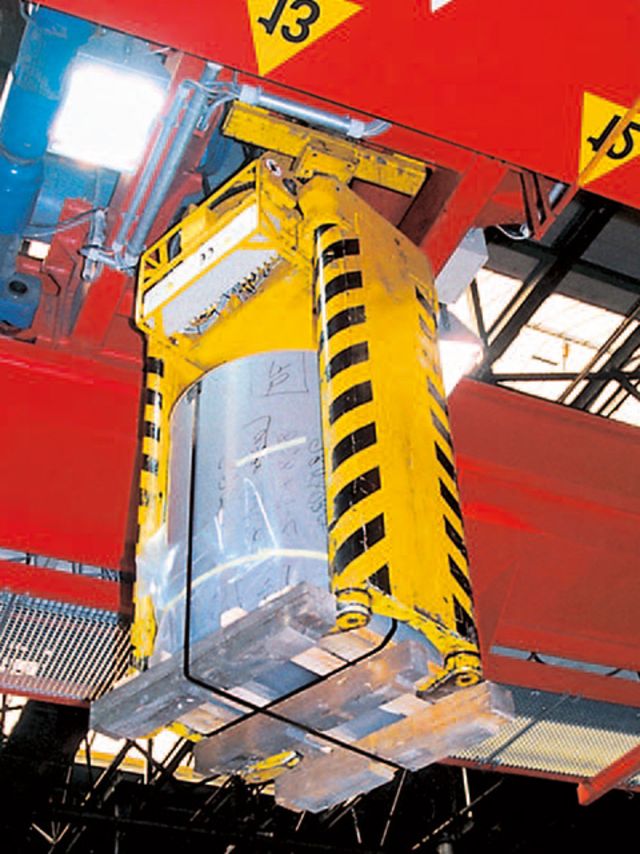

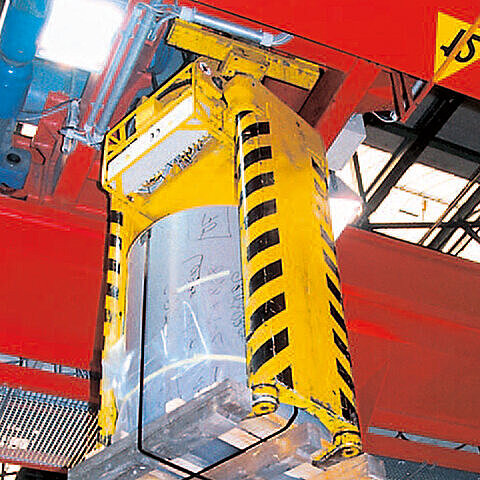

Telescopic pallet tong with spindle drive
open

Telescopic pallet tong with spindle drive

and spindle drive. The pick-up claws can be rotated by 90 degrees by motor for easy positioning underneath the pallet and space-saving pallet storage. The design used here is particularly slim and all components have been designed to be as compact as possible in order to save space when storing the pallets on the truck.

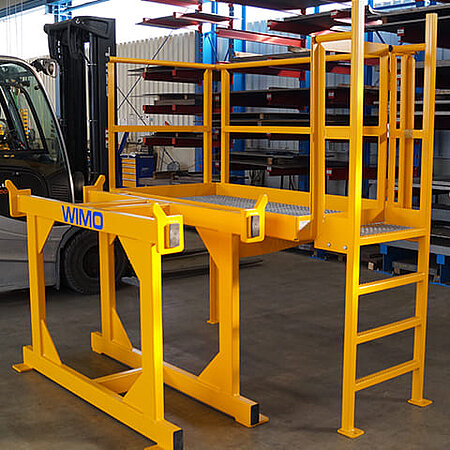

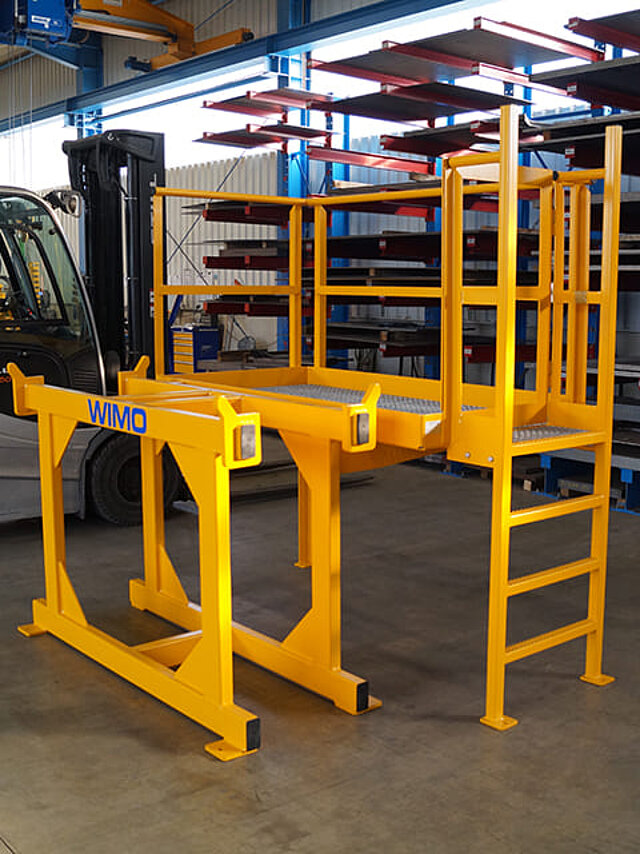

Stand with flight of stair and maintenance platform
open

Stand with flight of stair and maintenance platform

to significantly facilitate maintenance work. Easy and convenient access to the mechanical and electrical interfaces when changing tongs.

Coiltong with adapter
open

Coiltong with adapter

for picking up a scrap container clamp. Easy and quick change of the load handling attachment without manual assistance.

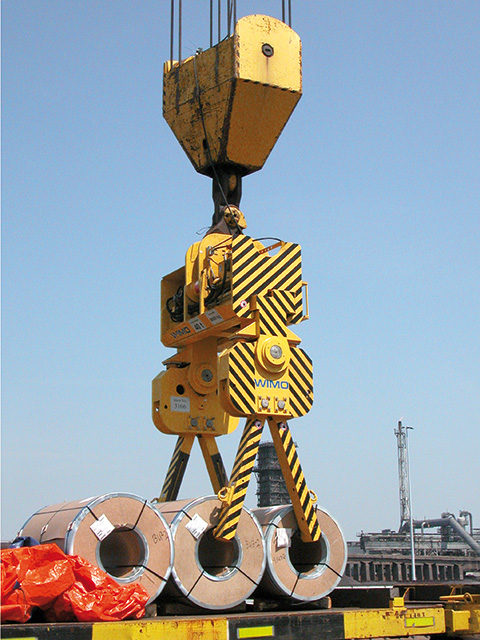

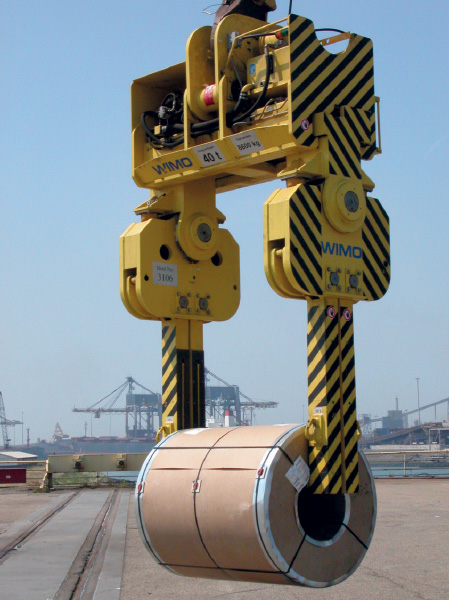

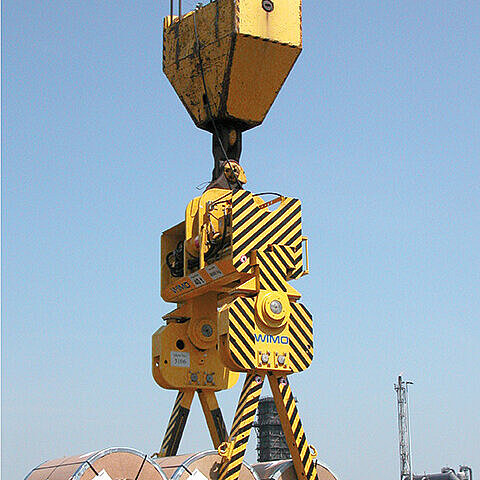

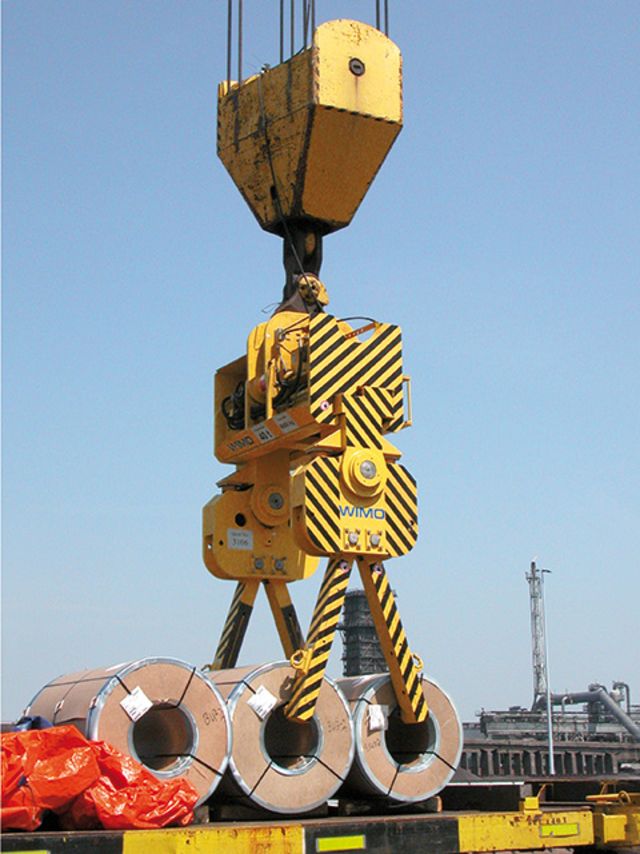

Telescopic coil gripper with hydraulic drive
open

Telescopic coil gripper with hydraulic drive

In port operations, efficient and safe coil handling is of utmost importance. With the WIMO tandem coil tongs, two coils with different widths and diameters, or even individual coils, can be transported simultaneously. This saves time and therefore money. The ship berthing charges are reduced by up to 50 %.

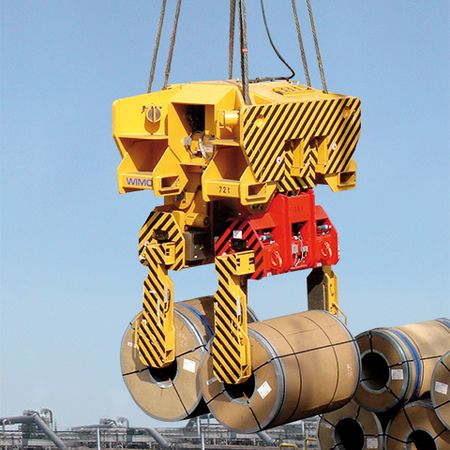

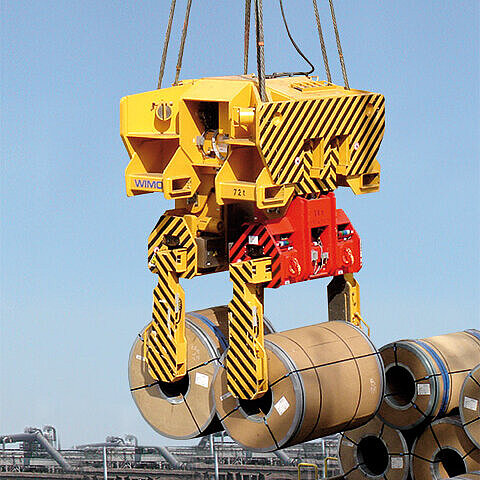

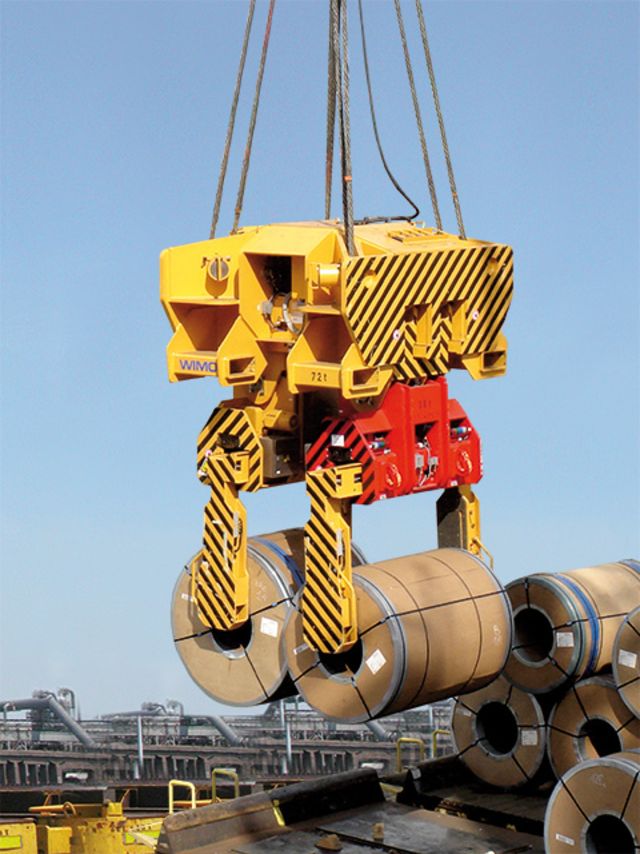

Telescopic coil gripper with spindle drive
open

Telescopic coil gripper with spindle drive

DE utility model protected. Especially in port operations, efficient and safe coil handling is of utmost importance. With the WIMO tandem coil tongs, two coils with different widths and diameters, or even individual coils, can be transported simultaneously. This saves time and therefore money. The ship berthing charges are reduced by up to 50 %. The coils can be placed close together due to the foldable claws. For maximum visibility when picking up loads, the double coil tong is equipped with a crane system whose images are transmitted directly to the crane cabin.

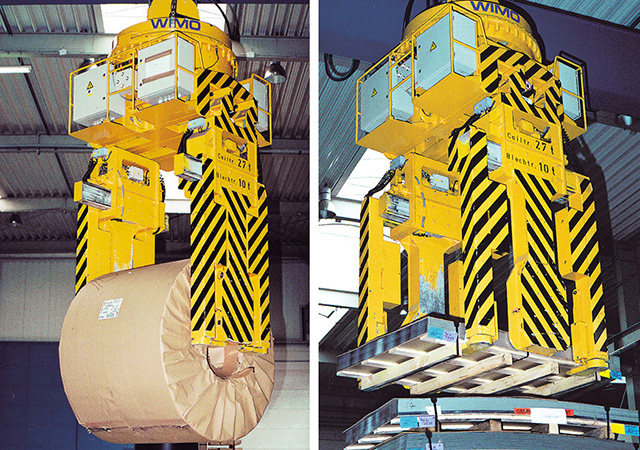

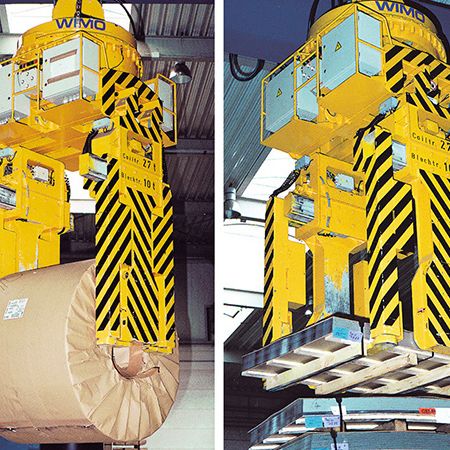

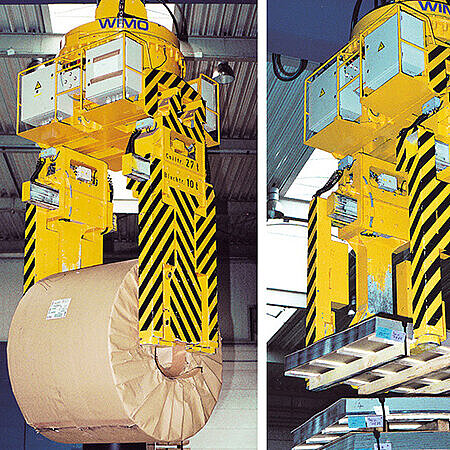

Multi-purpose tong with horizontal rotary drive system
open

Multi-purpose tong with horizontal rotary drive system

The four pick-up claws of the combination tongs can be moved by motor in longitudinal and transverse direction and rotated by 90 degrees. The two inner pick-up claws are designed for the transport of coils and can be folded. This means that this load handling device can also be used in confined spaces (e.g. loading and unloading lorries, wagons and freighters). Many different loads can be transported with these universal tongs. When handling sheet metal packages, palleted coils and containers, the four outer pick-up claws are used; when handling coils in horizontal axle position, the two inner pick-up claws are used.

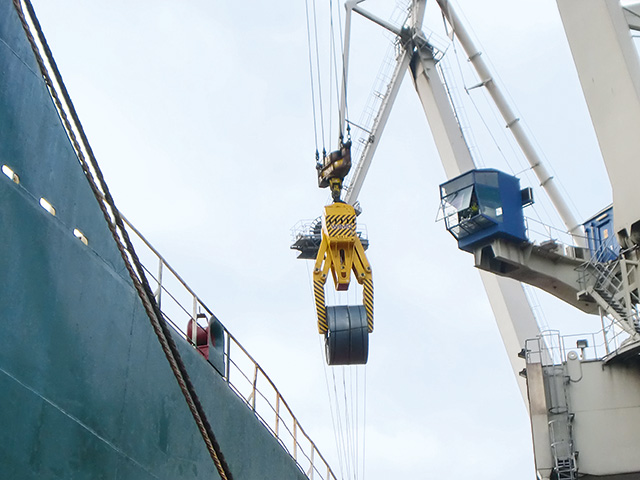

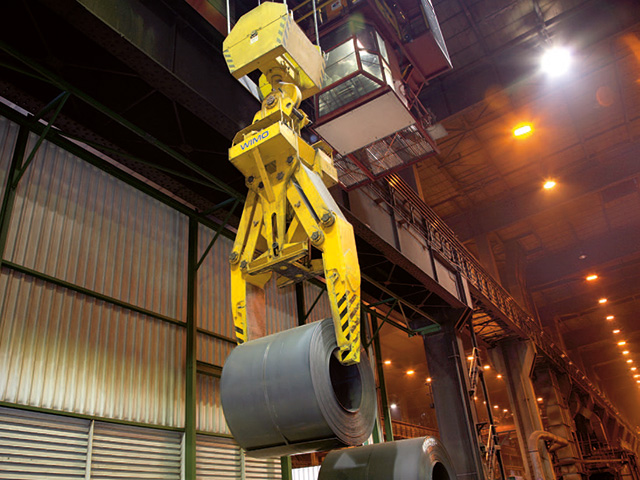

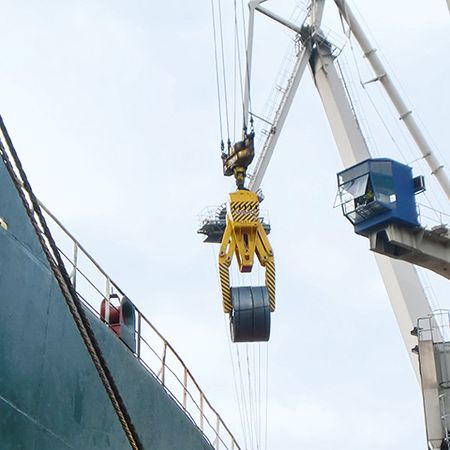

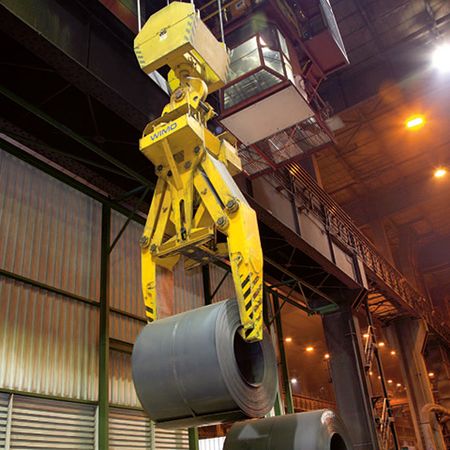

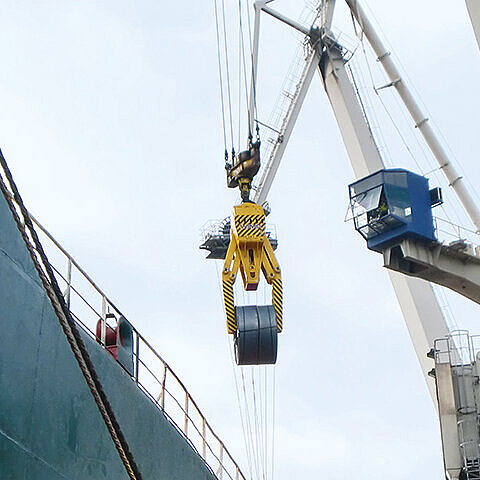

Parallelogram coil tongs, with hydraulic drive system
open

Parallelogram coil tongs, with hydraulic drive system

with additional equipment for gentle material handling

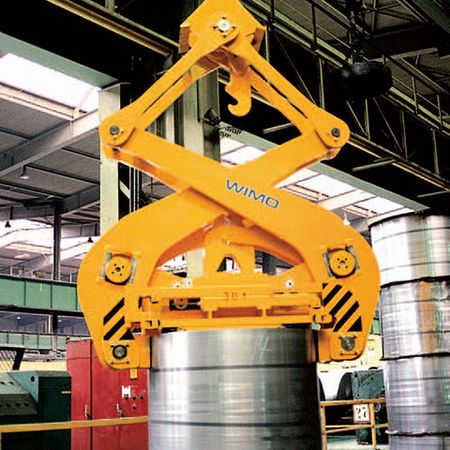

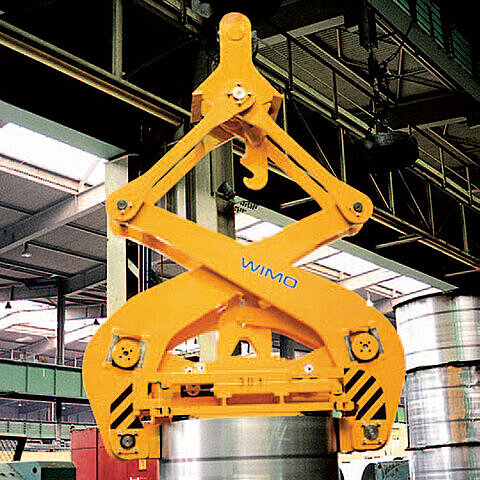

Mechanical vertical coil tong
open

Mechanical vertical coil tong

with double-sided load pick-up. The four clamping jaws reduce the surface pressure on the coil and protect the material.

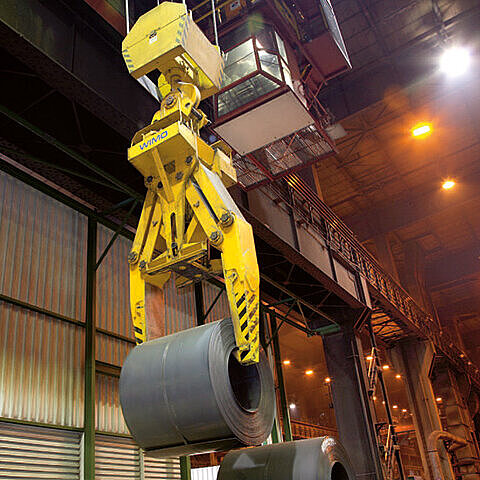

Heavy-duty parallelogram coil tong with hydraulic drive system
open

Heavy-duty parallelogram coil tong with hydraulic drive system

In particularly robust steel mill design with heat protection for coil temperatures up to 800 degrees

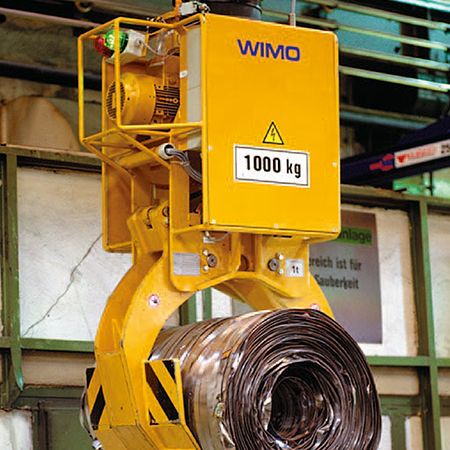

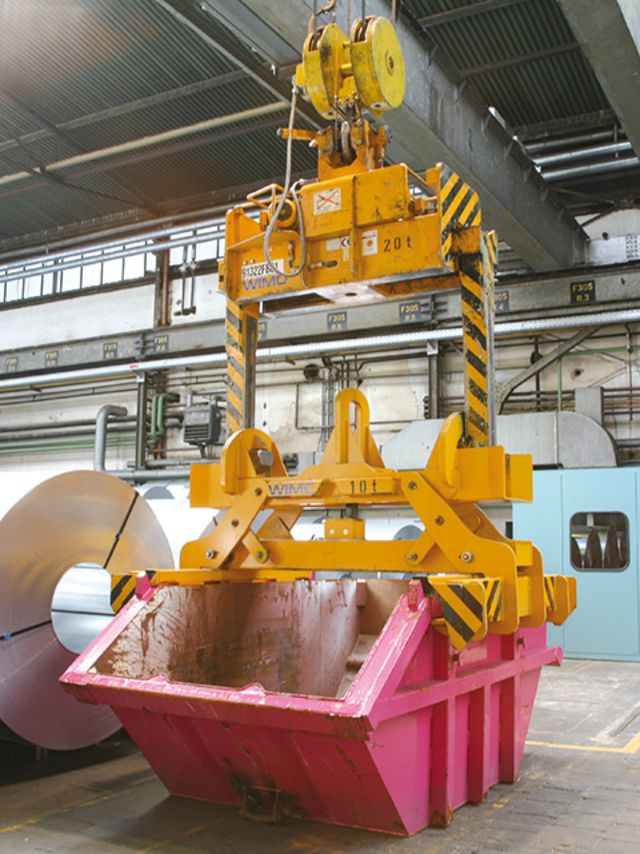

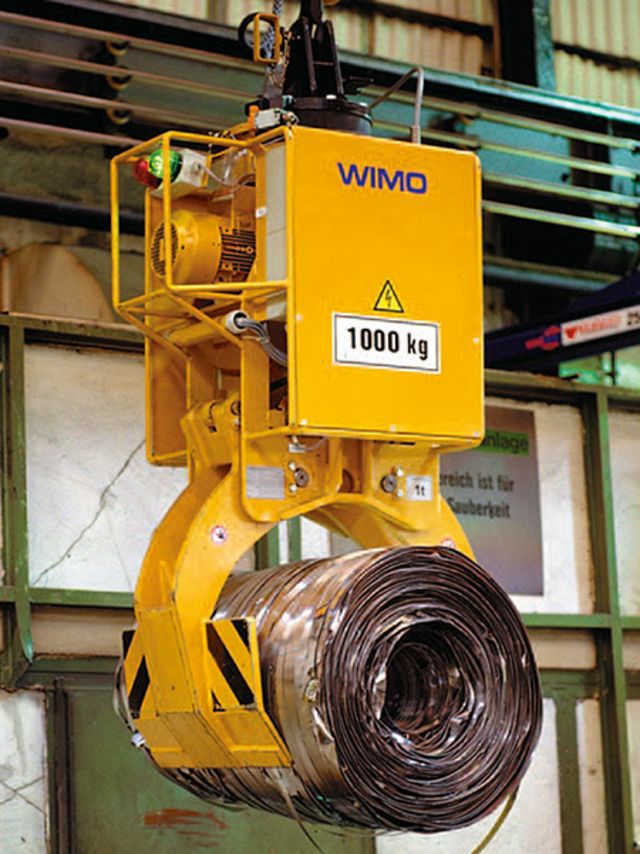

Tong for transporting scrap coils
open

Tong for transporting scrap coils

with hydraulic tong arm drive and rotary drive for safe insertion into scrap containers

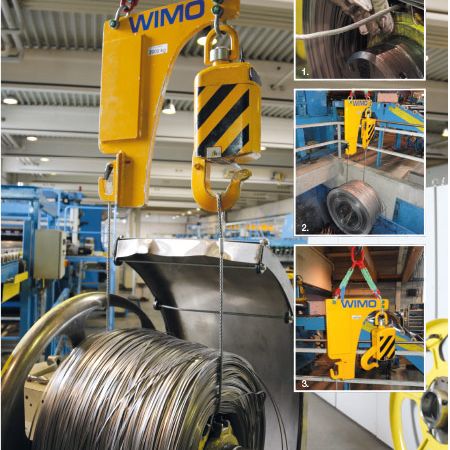

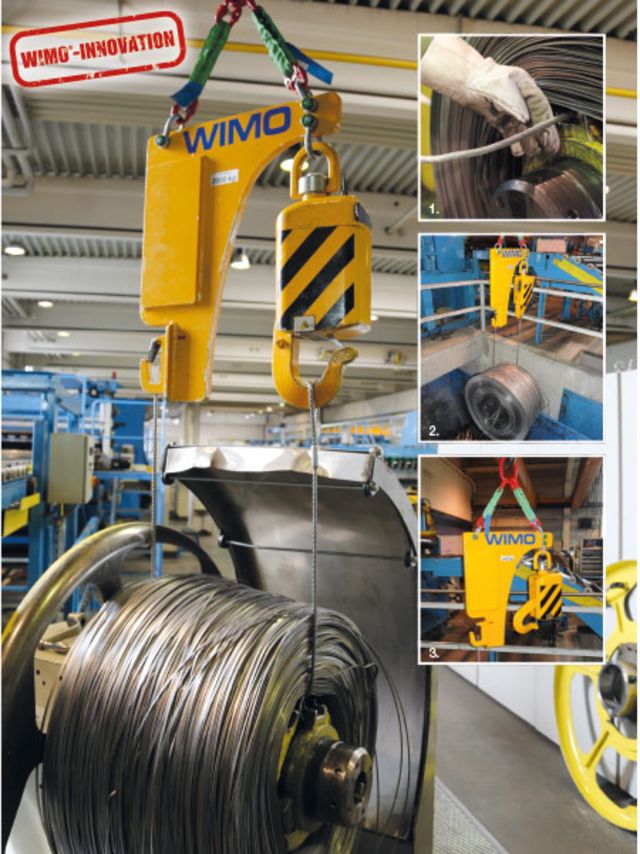

Edge scrap coil lifting tackle with cordless cable release system
open

Edge scrap coil lifting tackle with cordless cable release system

Pass the rope through the edge scrap coil and place the edge scrap coil in the container. Now release the rope loop using the remote control.

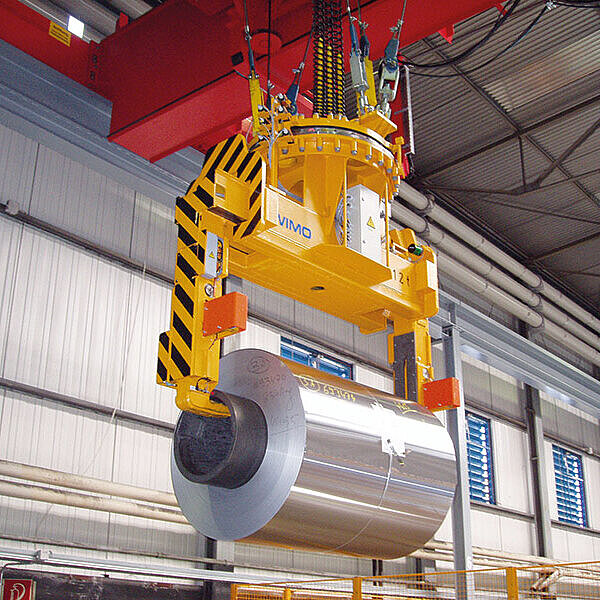

Telescopic coil tongs with especially small support prongs
open

Telescopic coil tongs with especially small support prongs

Spindle drive, horizontal turning device. The particularly narrow pick-up claws enable easy gripping of the coils on the coil winder.

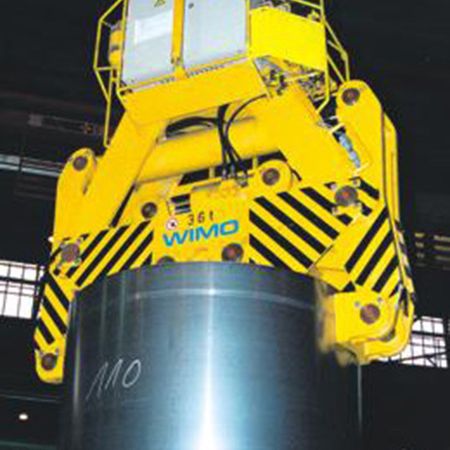

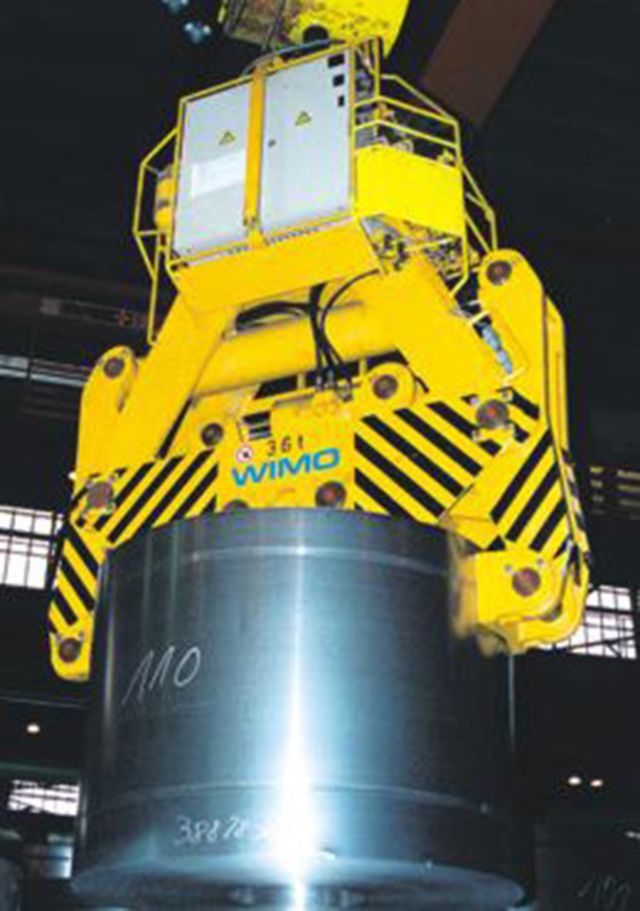

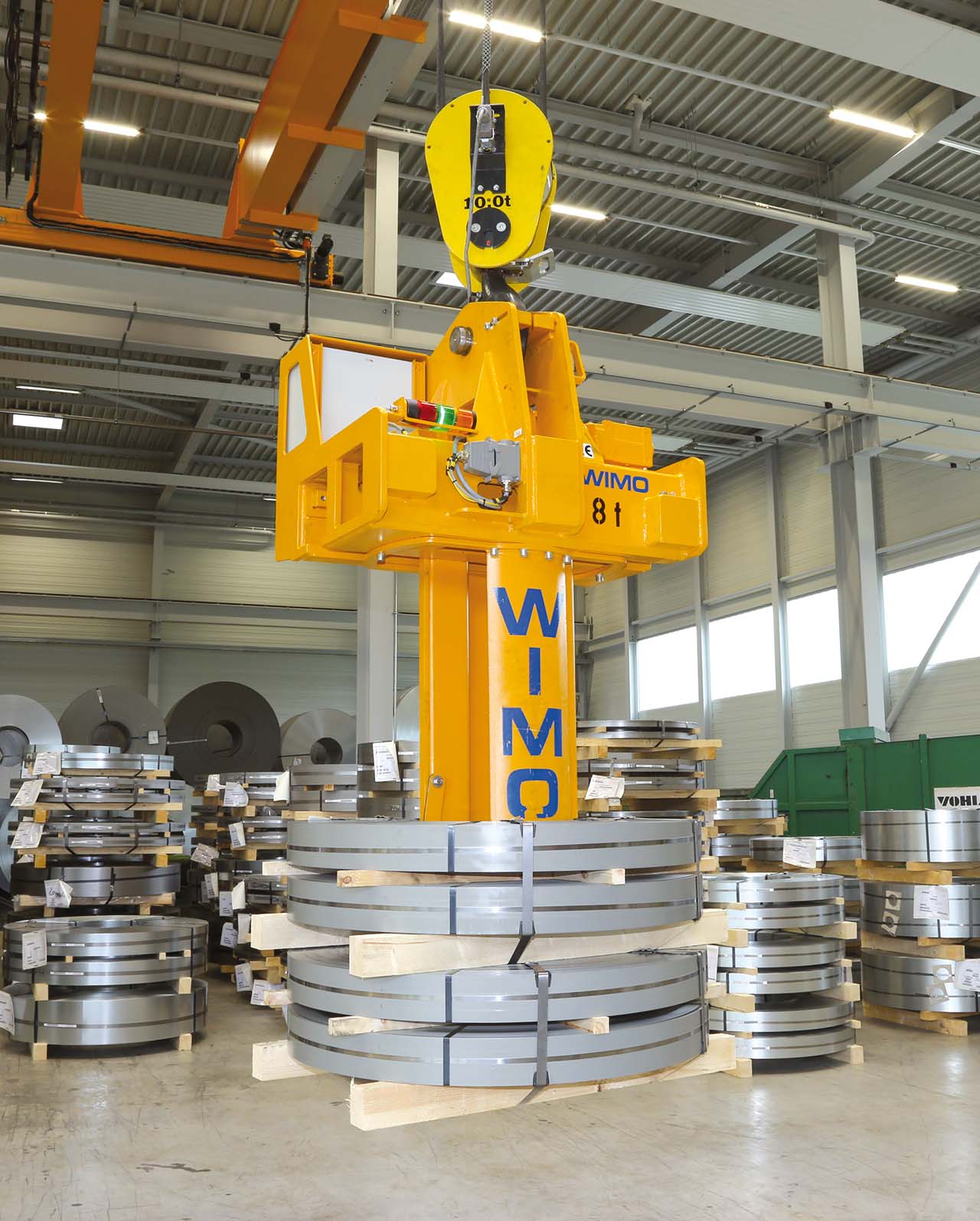

Hydraulic vertical coil tong
open

Hydraulic vertical coil tong

with double-sided load suspension.

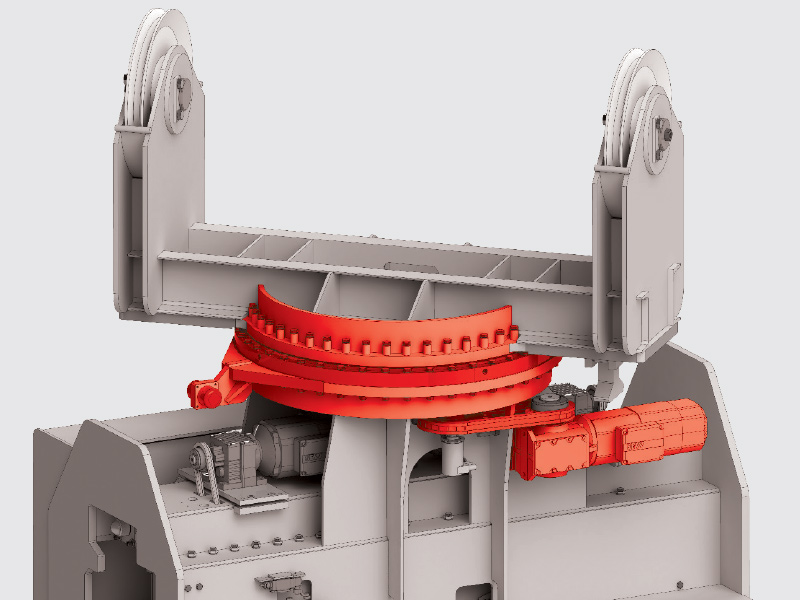

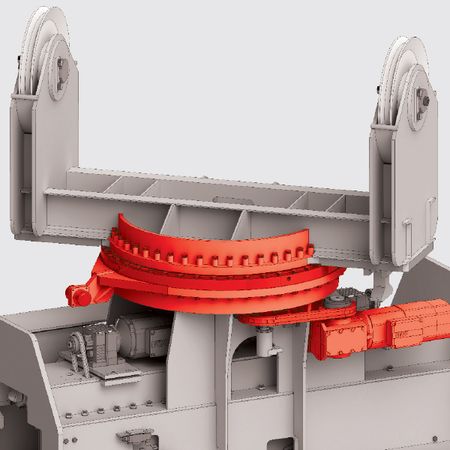

Horizontal turning gear with slewing ring design, motorised drive
open

Horizontal turning gear with slewing ring design, motorised drive

Forms a robust bearing that can absorb large forces.

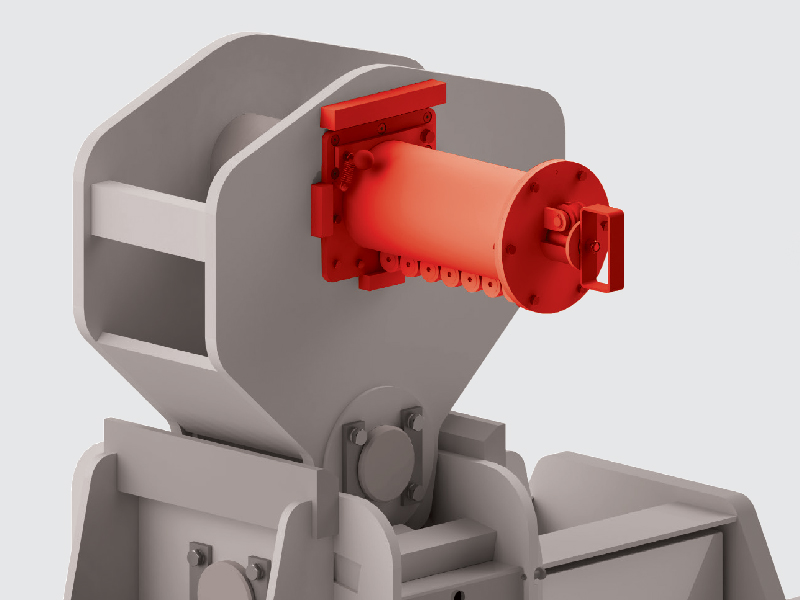

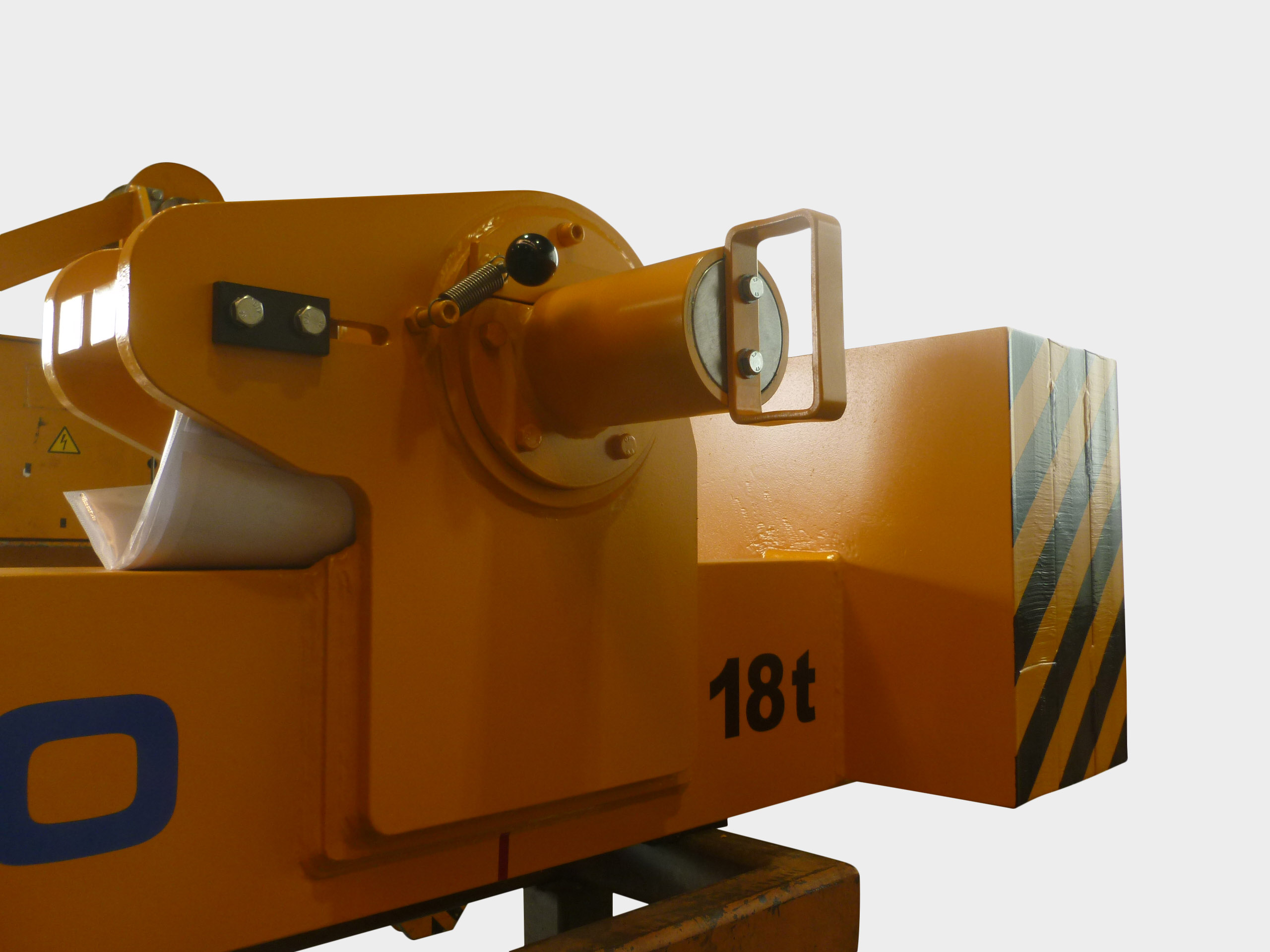

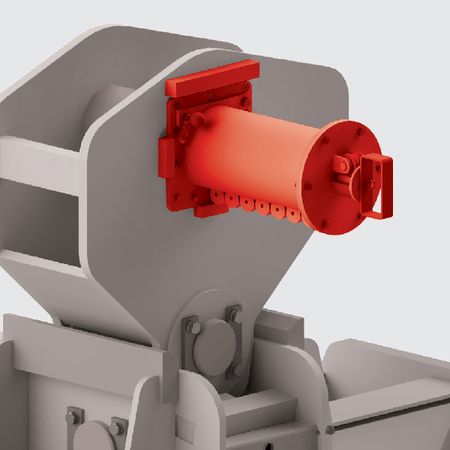

Sliding bolt on rollers
open

Sliding bolt on rollers

The integrated end stop prevents the sliding bolt from falling out.

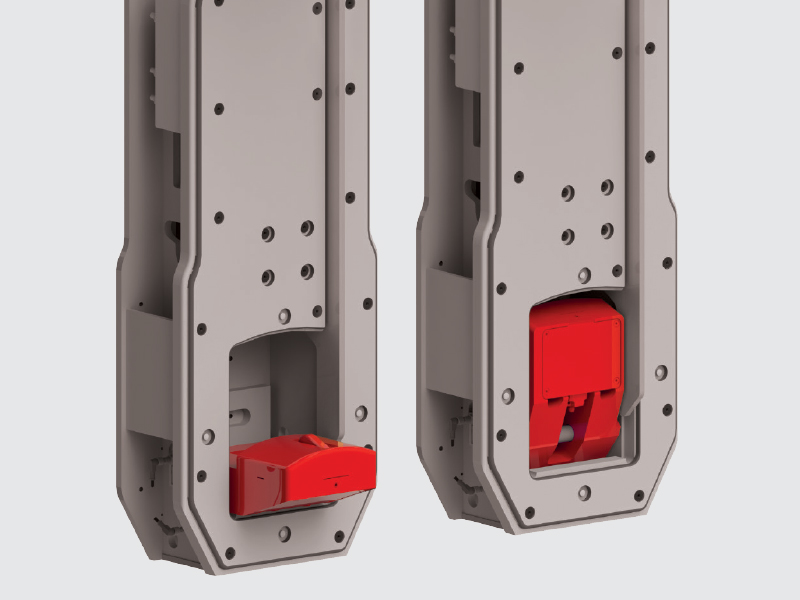

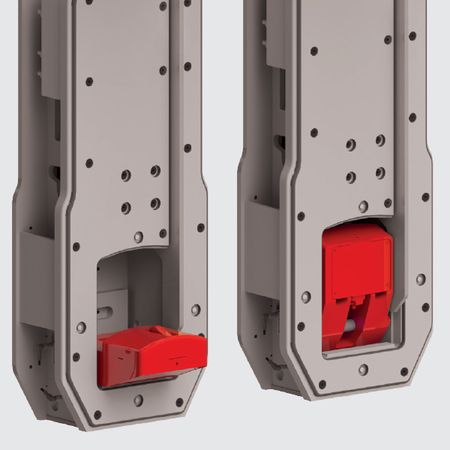

Hinged support prongs
open

Hinged support prongs

Ideal for confined spaces and for protecting coils during entry into the coil eye.

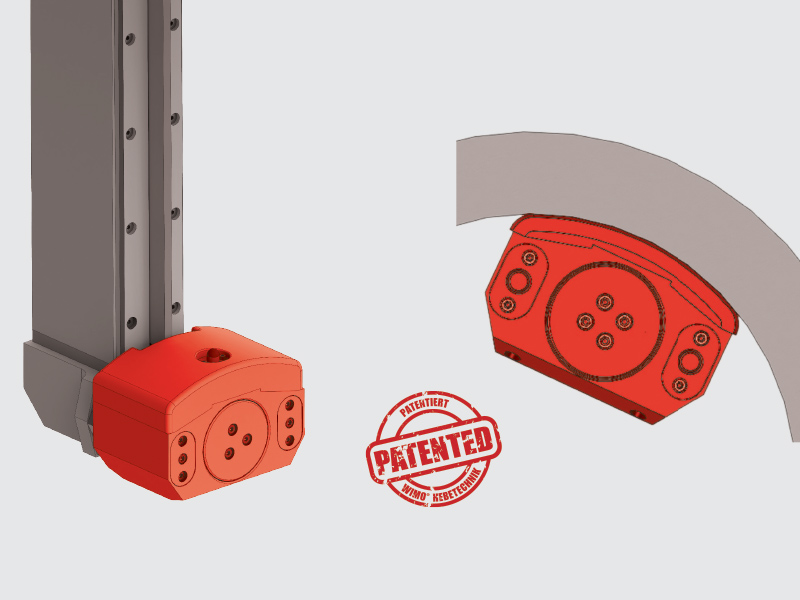

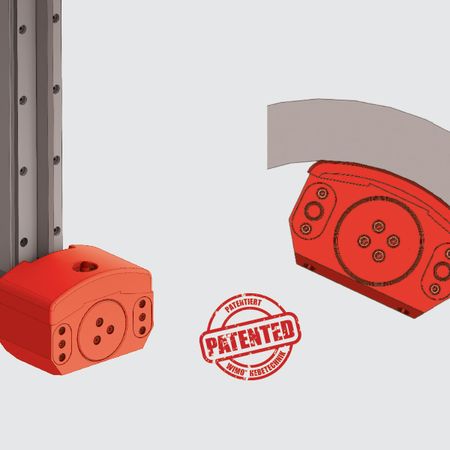

Rotating support prongs
open

Rotating support prongs

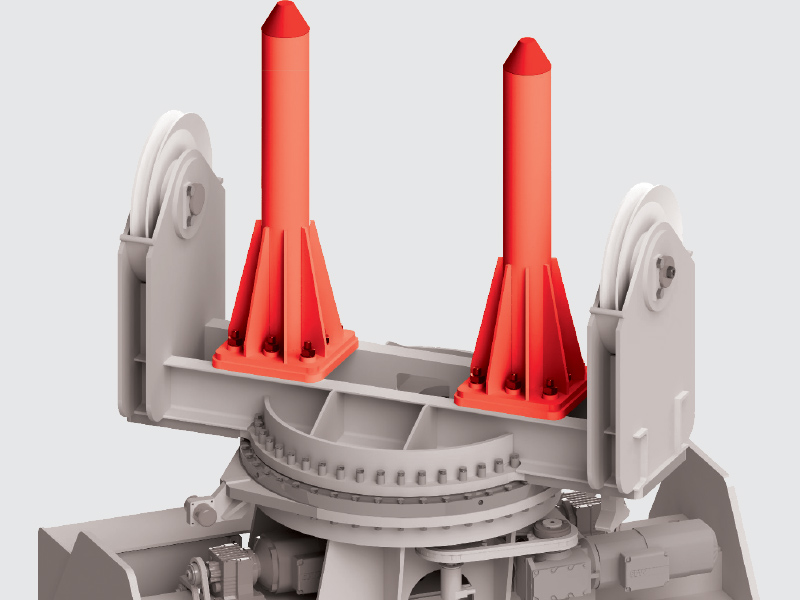

Locking the coil tongs in the uppermost crane lifting position
open

Locking the coil tongs in the uppermost crane lifting position

for pendulum-free crane and trolley travel

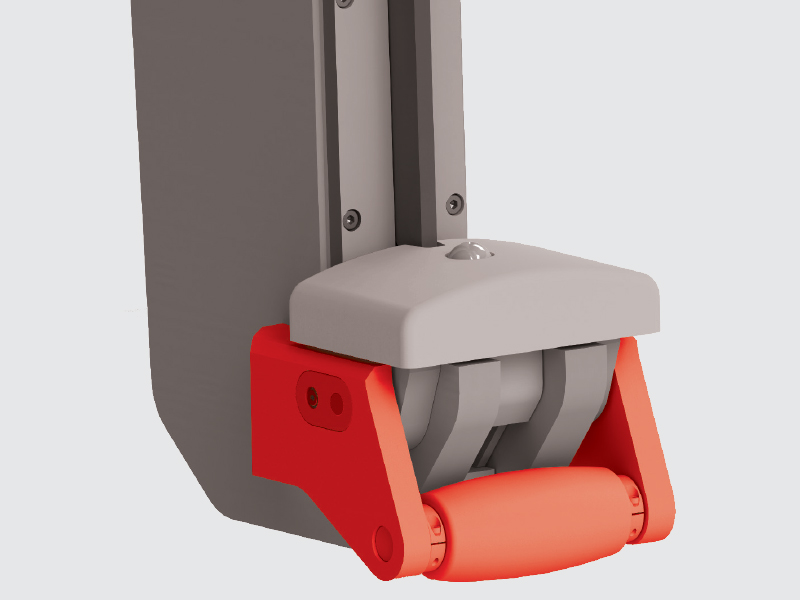

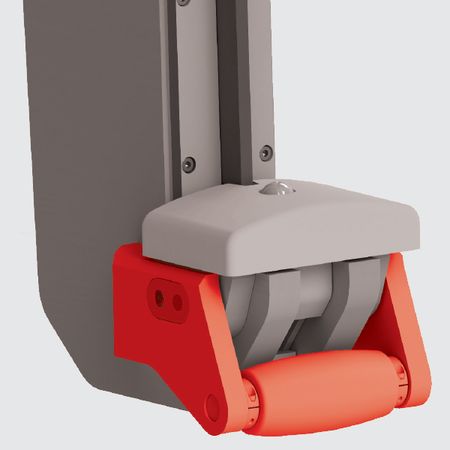

Stop roll
open

Stop roll

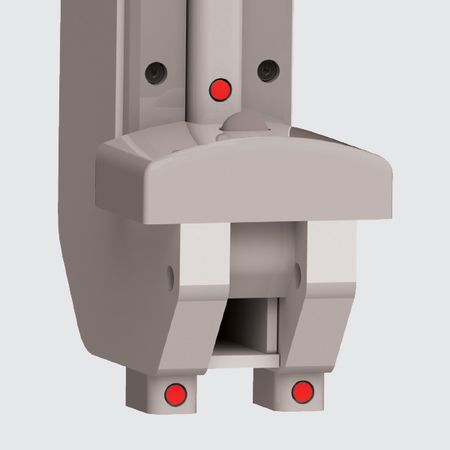

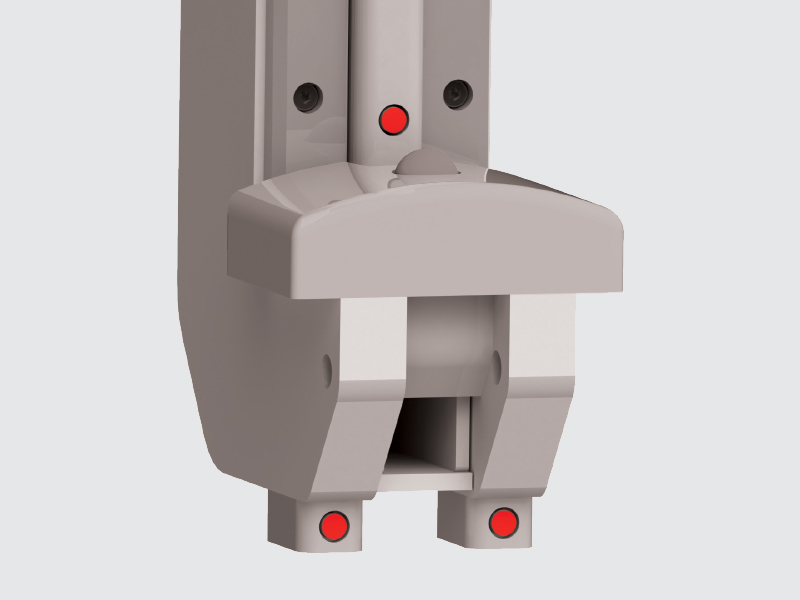

Light barriers
open

Light barriers

With light barriers you can achieve quick and safe positioning of the tong arms in front of the coil eye. Particularly effective in combination with folding clamps. In this case, the operator only unfolds the claws when the light barriers indicate via signal lamps that the support claws are in the centre of the coil eye. This avoids unnecessary contact with the coil windings.

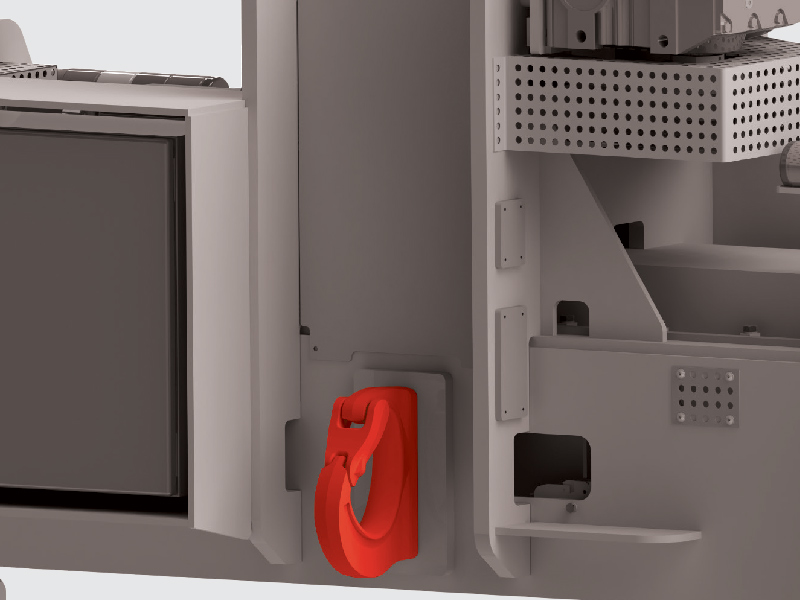

Weld-on hooks
open

Weld-on hooks

Enable the transport of additional goods without removing the tongs from the crane hook. Flexible transport of different loads.

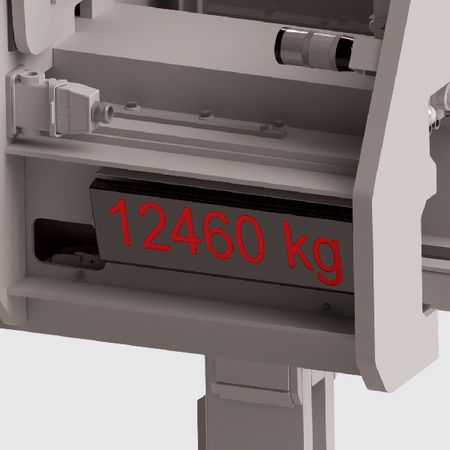

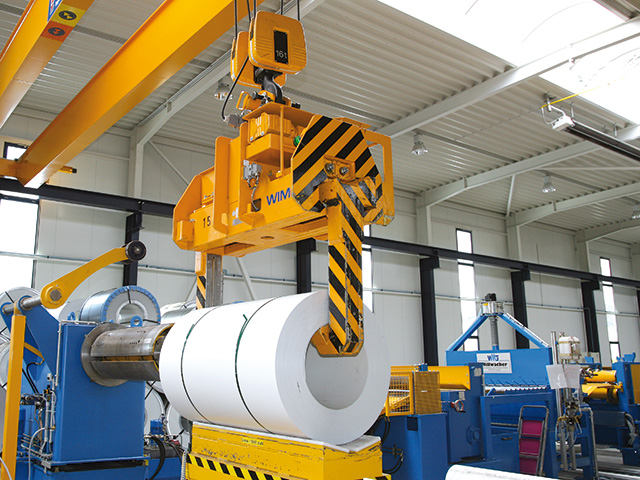

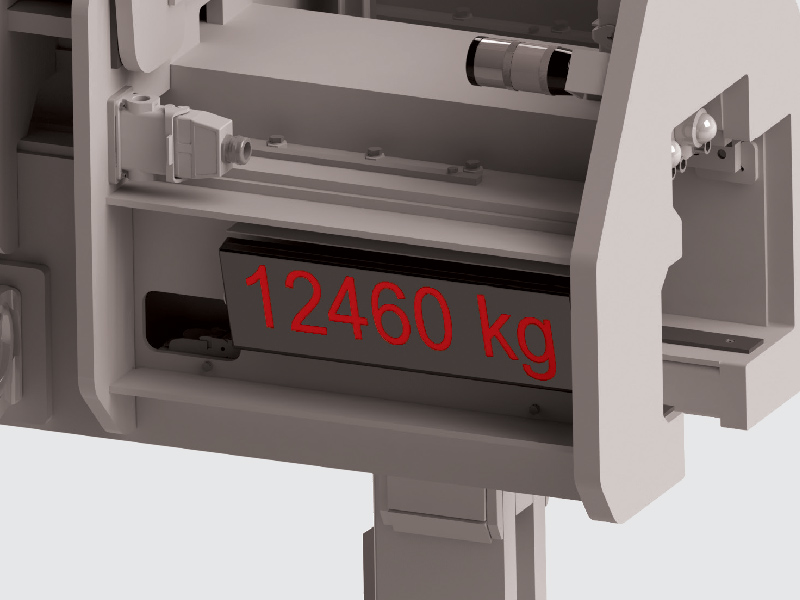

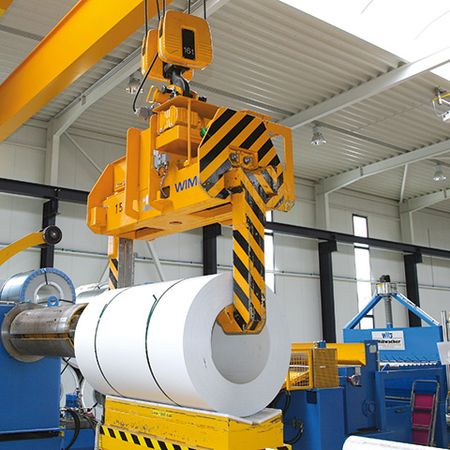

Weighing system
open

Weighing system

to save installation height compared to separate scales.

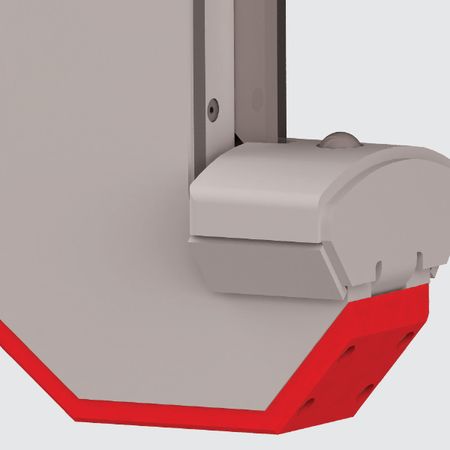

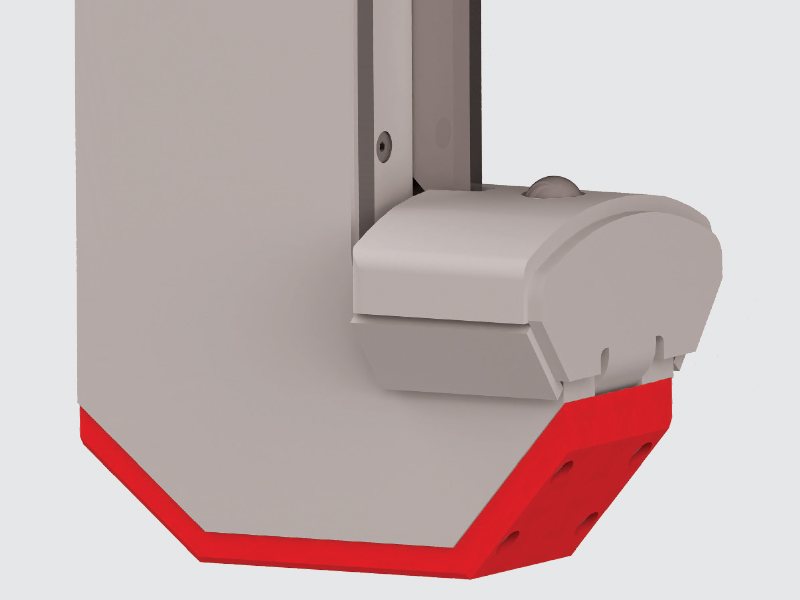

Protector made of synthetic material
open

Protector made of synthetic material

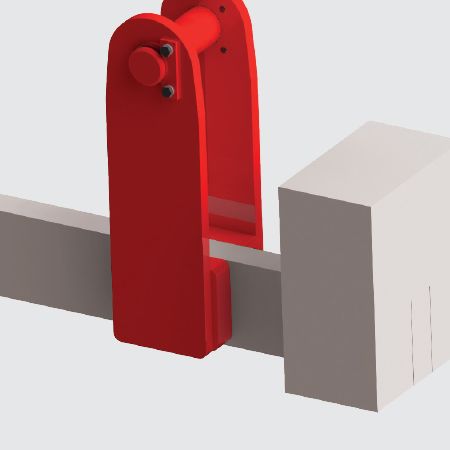

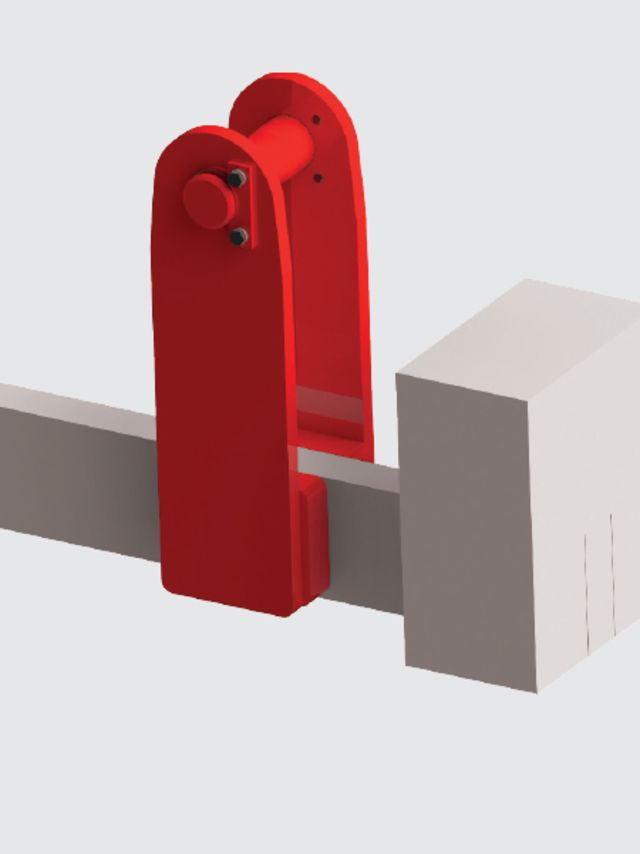

Bolt suspension. With sliding bolt upon request
open

Bolt suspension. With sliding bolt upon request

On request with sliding pin to protect the crane hook.

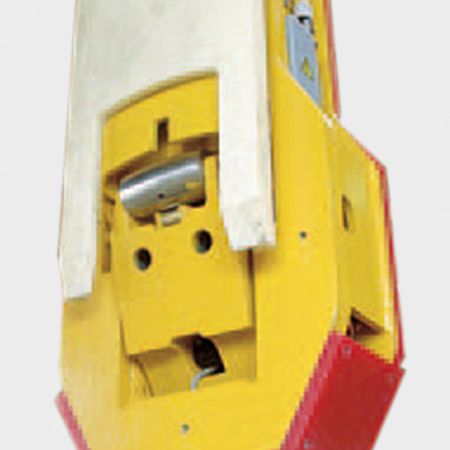

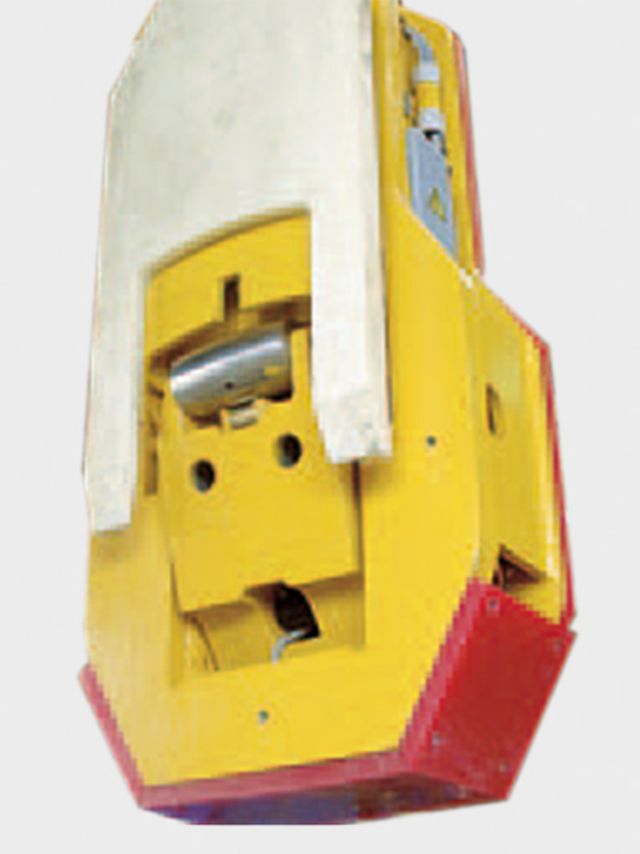

Bottom protector
open

Bottom protector

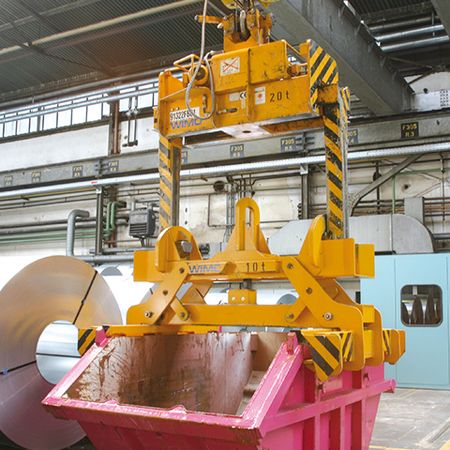

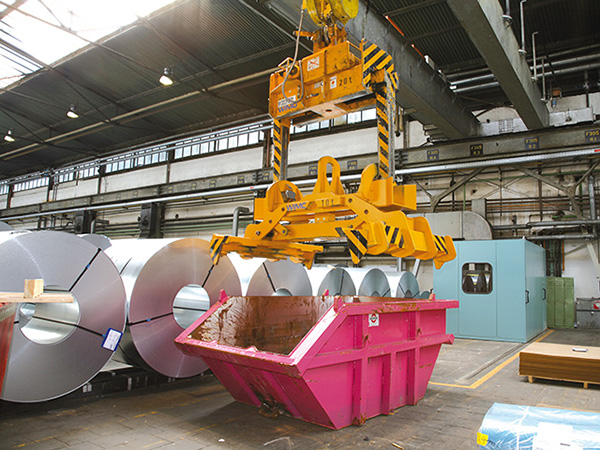

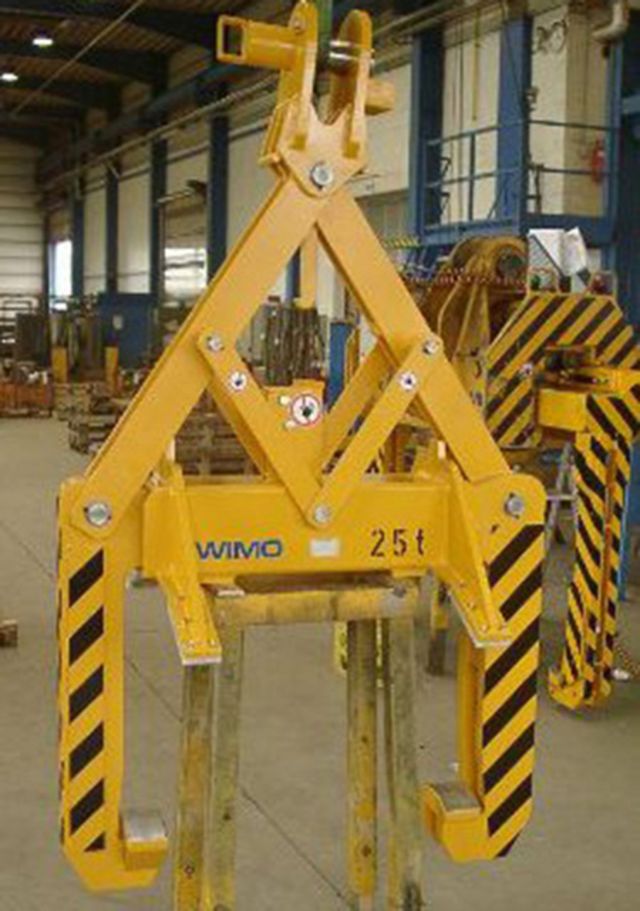

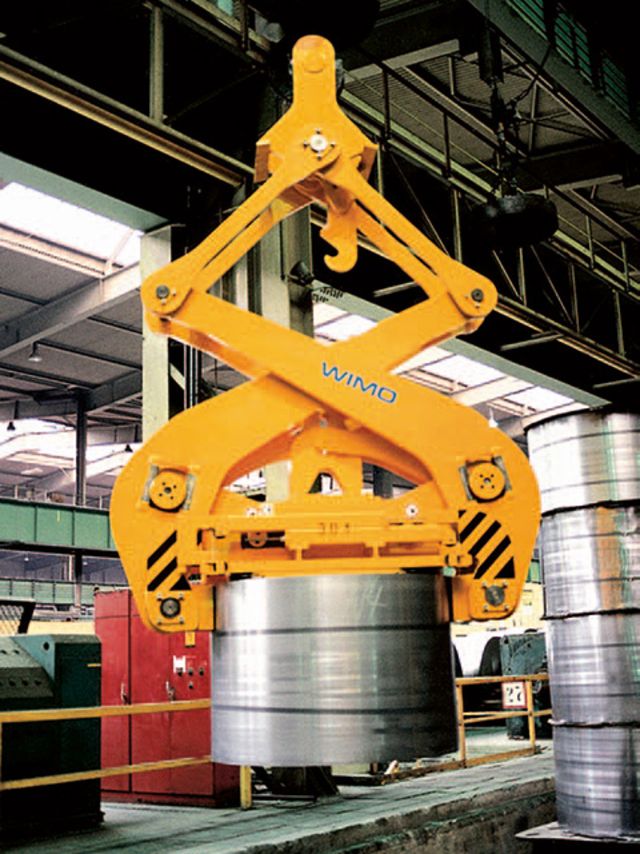

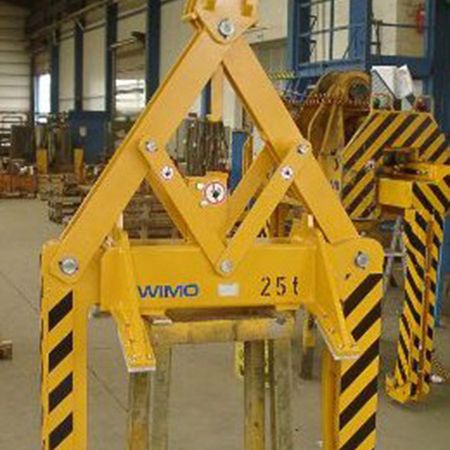

Mechanical scissor-type coil tong
open

Mechanical scissor-type coil tong

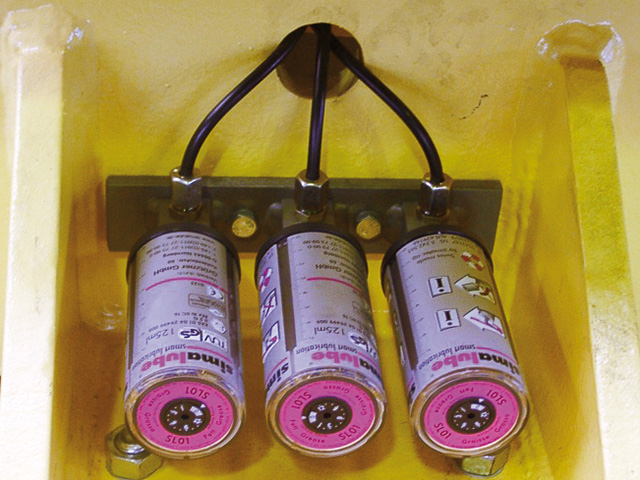

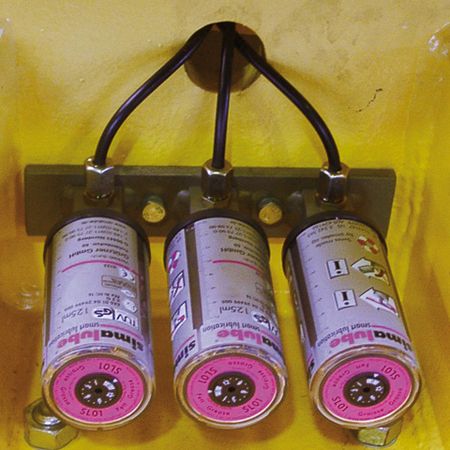

Automatic lubricant dispenser
open

Automatic lubricant dispenser

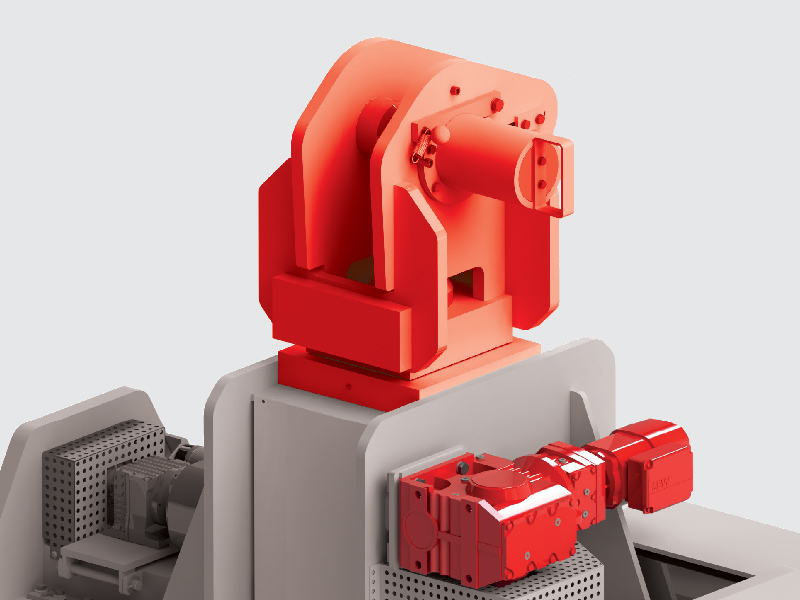

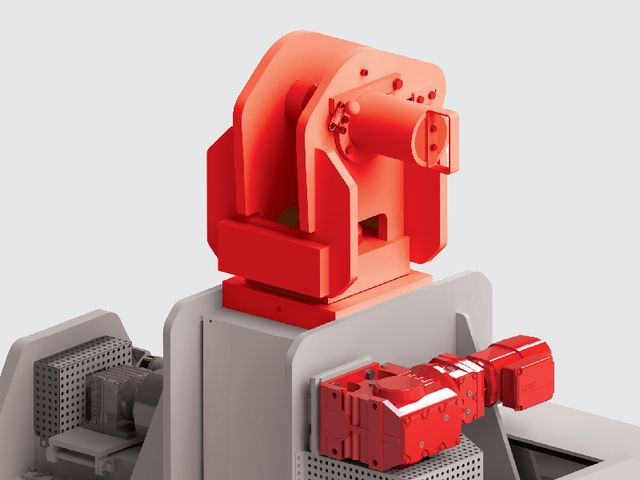

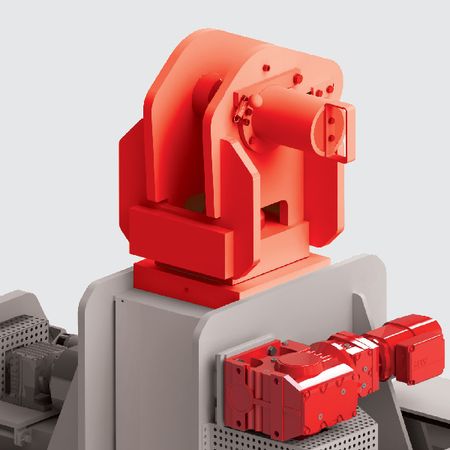

Horizontal turning gear with bolt, motorised drive
open

Horizontal turning gear with bolt, motorised drive

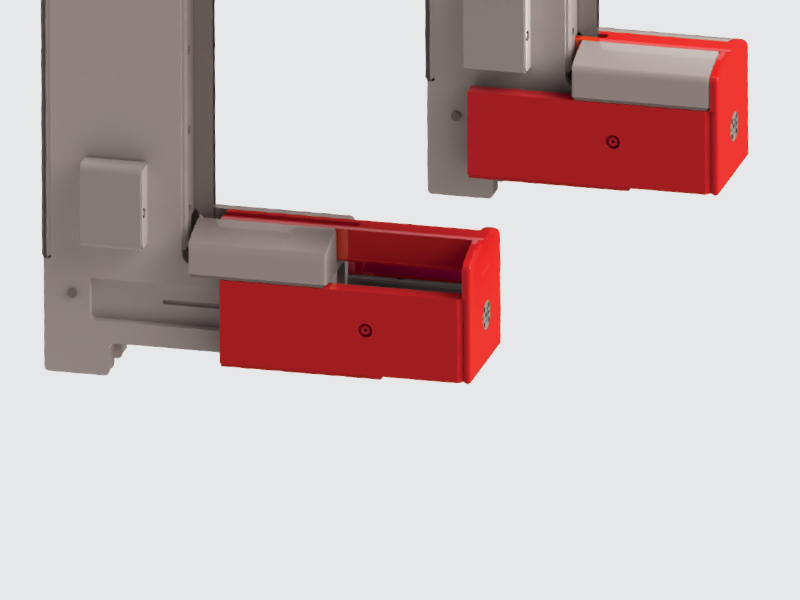

Extendable support prongs
open

Extendable support prongs

by means of coil tongs. Particularly secure support for the slit strips. All slit strips are gripped underneath.

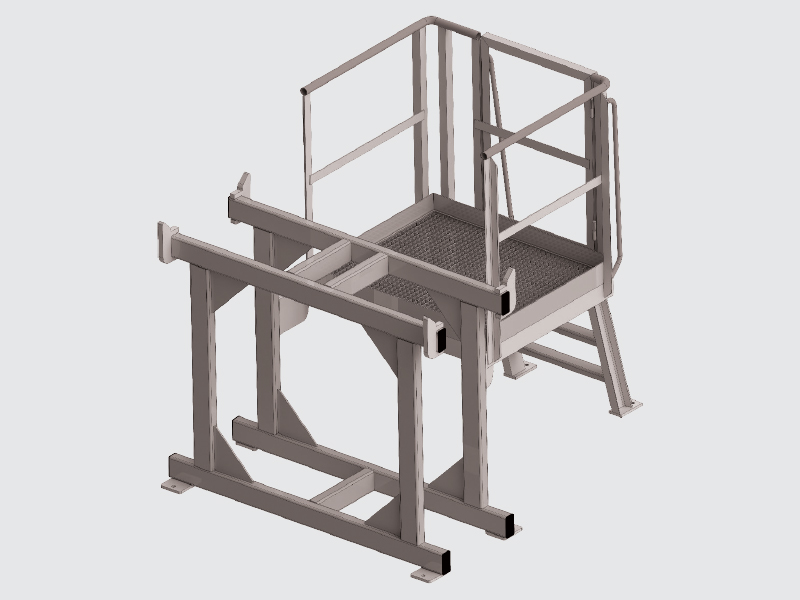

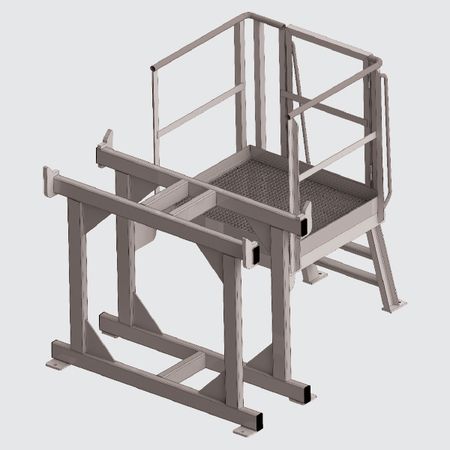

Stand with maintenance platform
open

Stand with maintenance platform

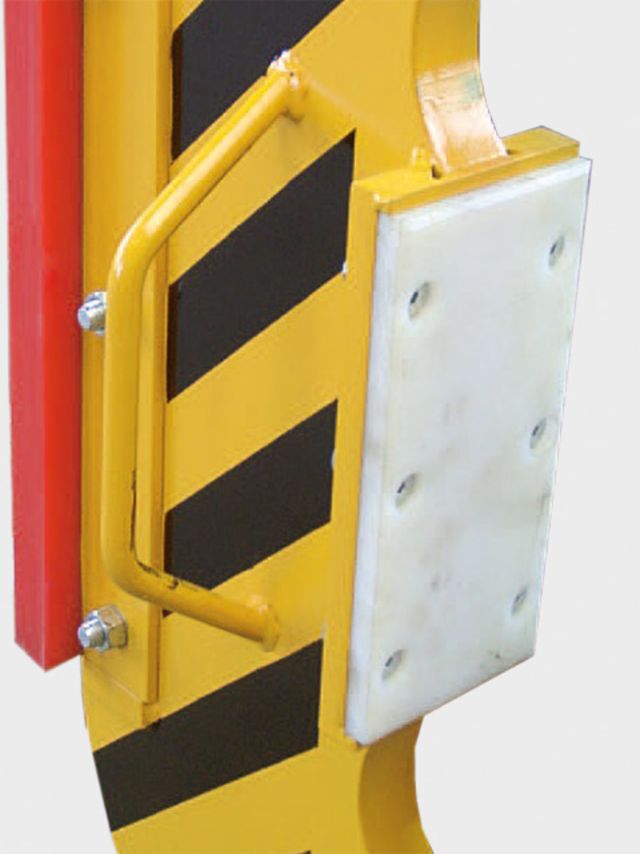

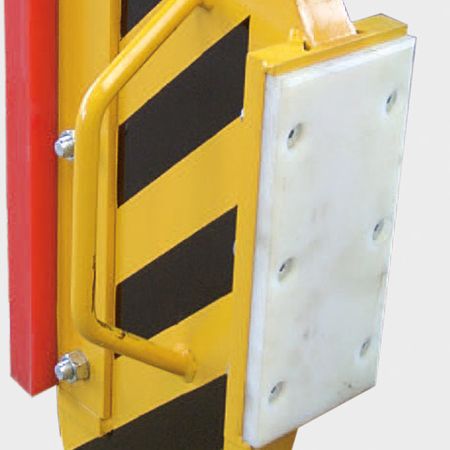

Steel or synthetic approaching plate
open

Steel or synthetic approaching plate

to protect the coil

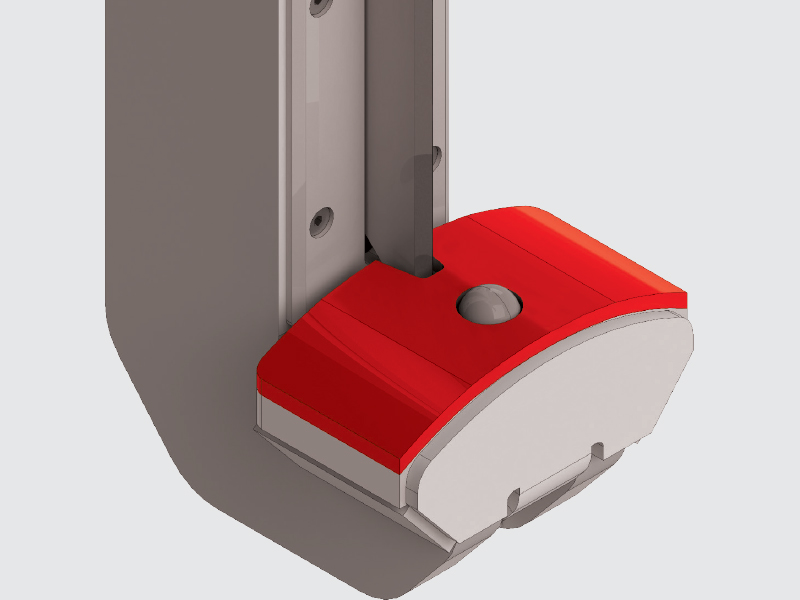

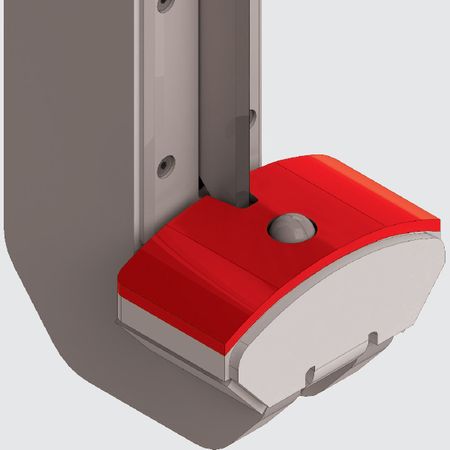

Support layer made of synthetic material
open

Support layer made of synthetic material

To protect the inner coil windings
