SPECIAL DEVICES
In some companies, the transportation of heavy loads creates some special challenges. The dimensions of the transported load may deviate from the standard, or other requirements may make it necessary to use special transport equipment. In these cases, WIMO® offers the right solution with its individually produced lifting technology.

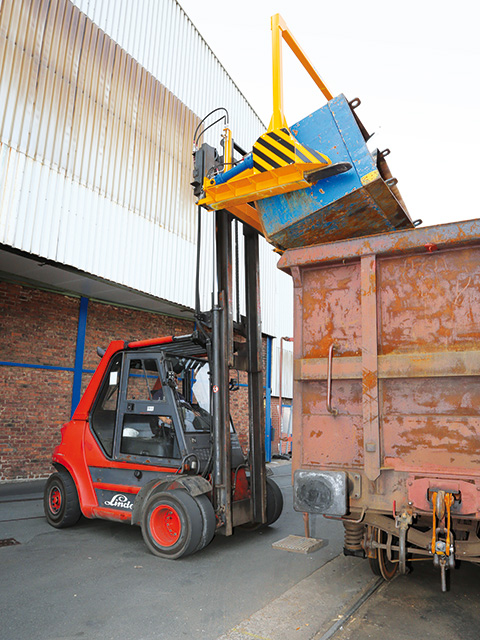

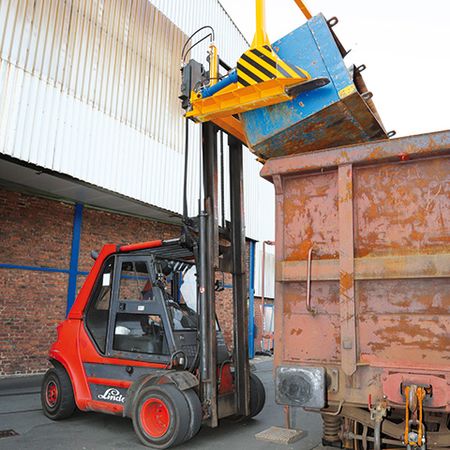

Scrap bucket emptying device for forklift trucks
- Hydraulic supply directly via the forklift truck
- Convenient control directly via the forklift truck
- Safe emptying in hard-to-reach places

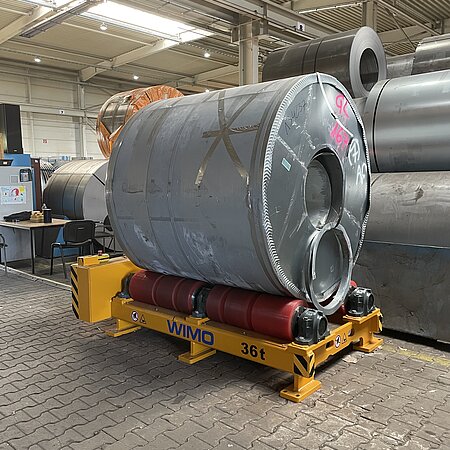

WIMO unwinding station – safe turning and positioning of coils
The WIMO unwinding station with electromechanical roller drive enables controlled turning of coils around their horizontal axis. This allows the end of the strip to be positioned precisely for testing or further processing. The station is ideal for production areas where flexibility and safety are required.
Technical features:
- Electromechanical roller drive for smooth turning of the coil
- Recesses in the rollers for strap strapping when loaded
- Guide rails for safe threading and unthreading of the strapping band
- Integrated forklift pockets for easy transport
- Robust construction for continuous industrial use
Your advantages:
- Precise positioning of the end of the strip, e.g. for sampling
- Flexible use thanks to mobile design
- Safe handling
- Reduction of set-up times in further processing
- Increased work safety thanks to controlled drive
Typical areas of application:
- Coil handling in production lines
- Testing equipment for strip material
- Preparation for strapping and transport
- Workshops and service areas in metal and steel construction

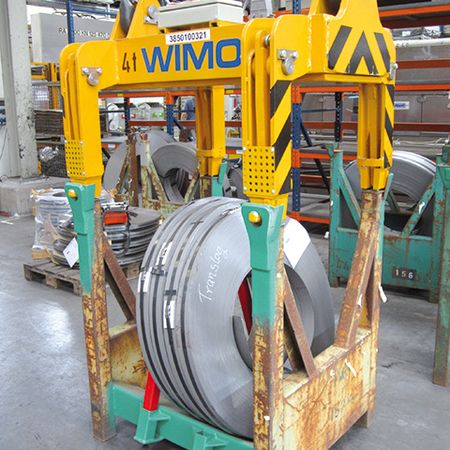

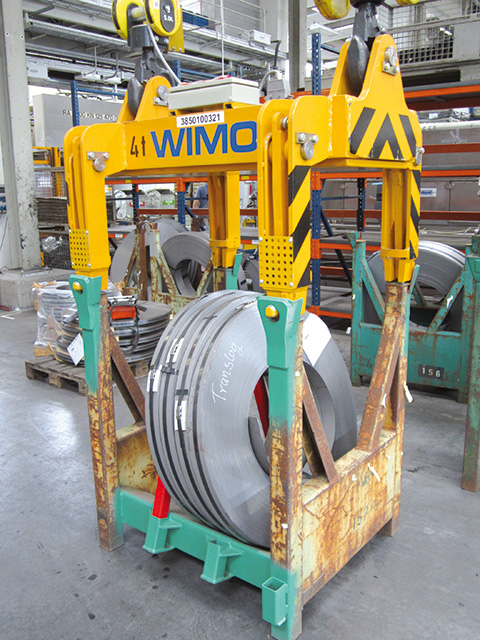

Container clamp with locking bolts
- Four motor-driven locking bolts
- Integrated positioning control for quick positioning
- Horizontal operation thanks to 2-crane suspension

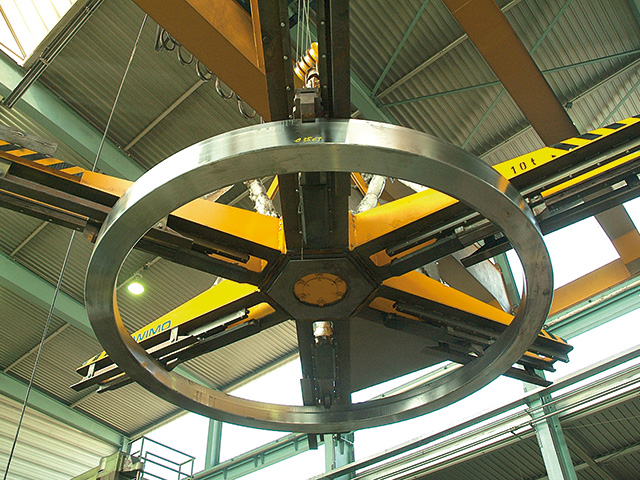

Large ring tongs for hot applications
- Six hydraulically driven gripping units
- Gentle transport at high temperatures
- Individual control for maximum flexibility

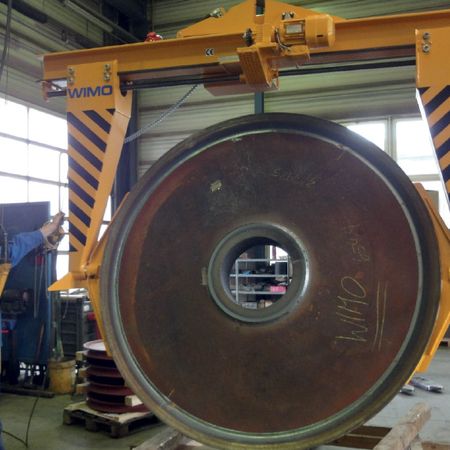

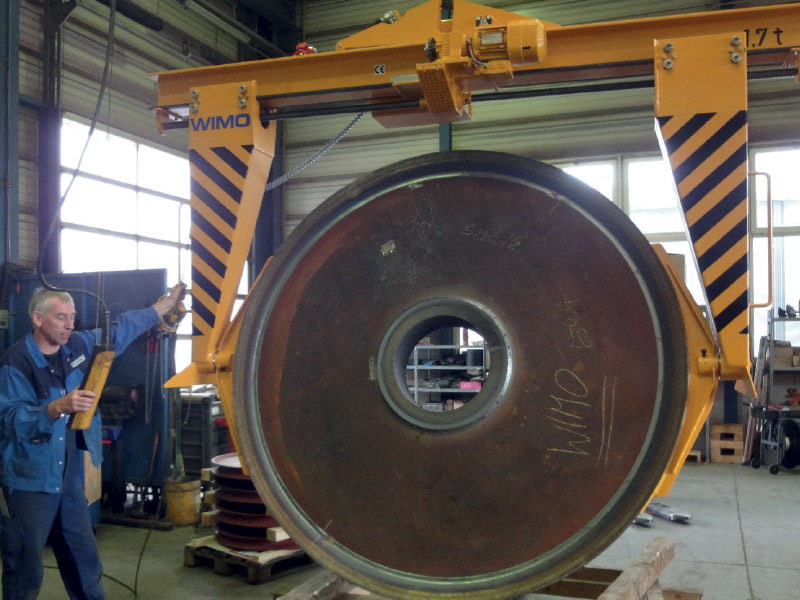

Motor-driven turning tongs
- Opening mechanism via spindle drive
- Manual rotation in the load's heavy axis
- Integrated load securing device to prevent unintentional opening

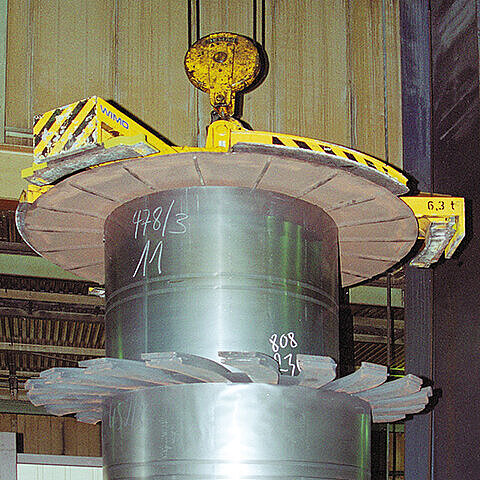

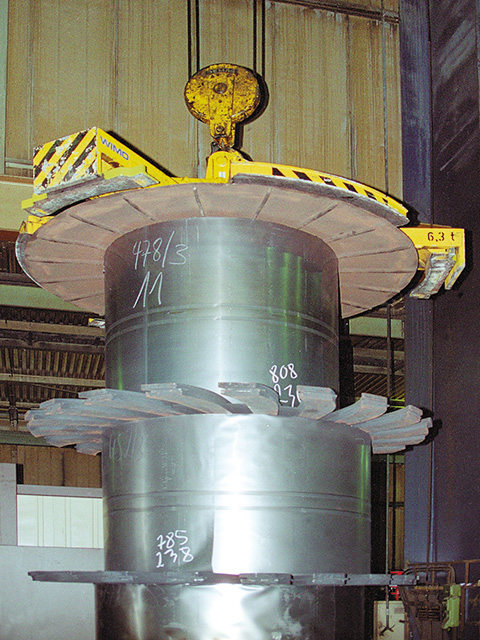

Mechanical tong for transporting annealing hoods and convectors
- Mechanical design with automatic hold-open device
- Gripper arms mounted on robust rollers for smooth running
- Ideal for temperature-critical applications

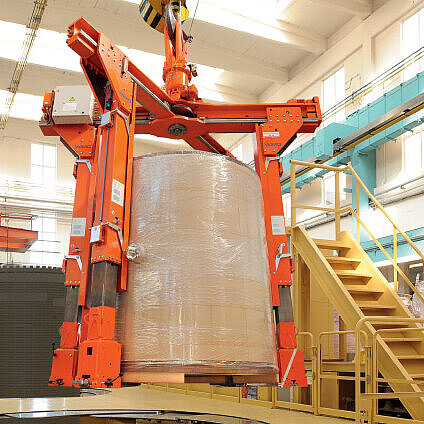

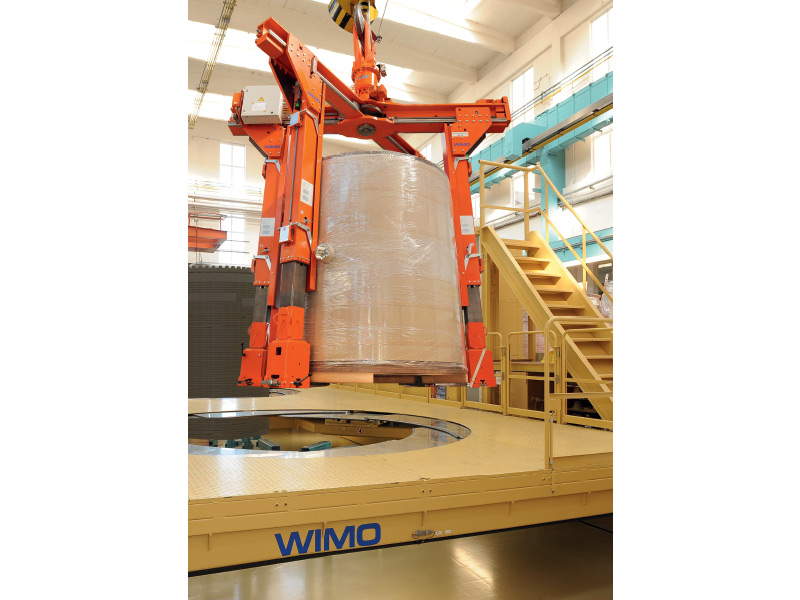

Winding tong for transformer development
- Motor-driven, vertically telescopic tong arms
- 4 rotatable support prongs for form-fitting load handling
- Ideal for sensitive windings in confined spaces

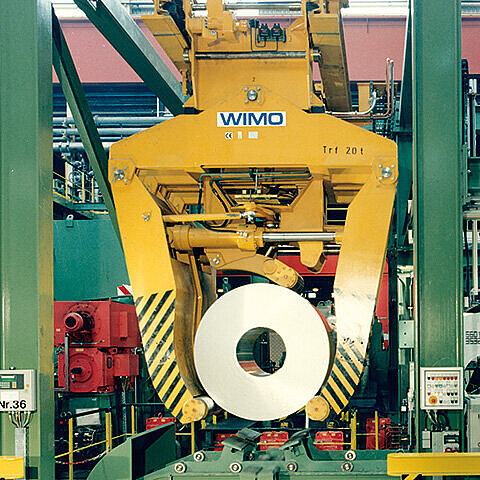

Automatic coil removal system from the rewinder
- Fully automatic coil removal at the rewinder
- Hydraulic pressure roller prevents strip end spreading
- Ideal for continuous processes in coil processing

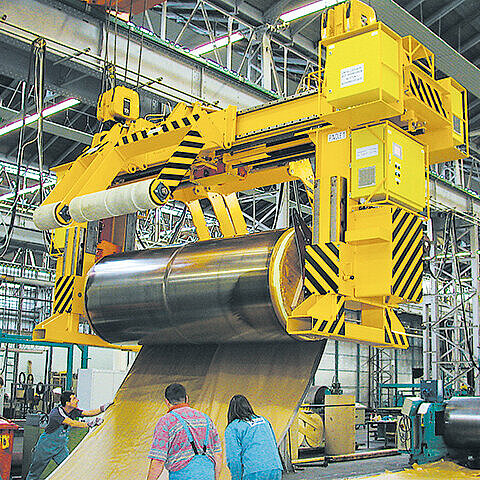

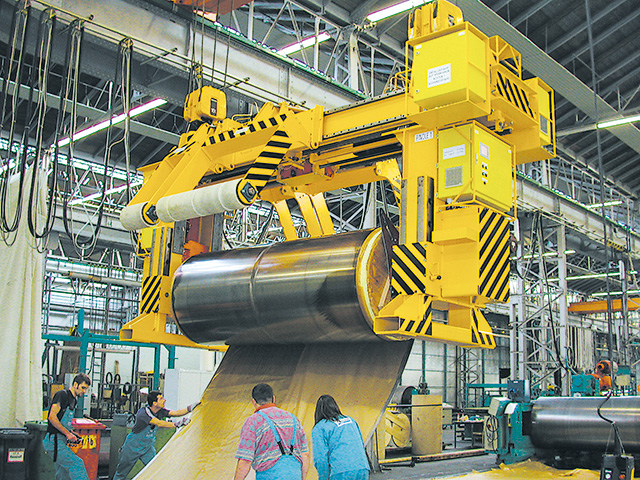

Coil hanging reel for thin sheet metal
- Winding and unwinding of thin sheets during processing
- Hydraulically driven pressure roller for strip control
- Safe and controlled handling

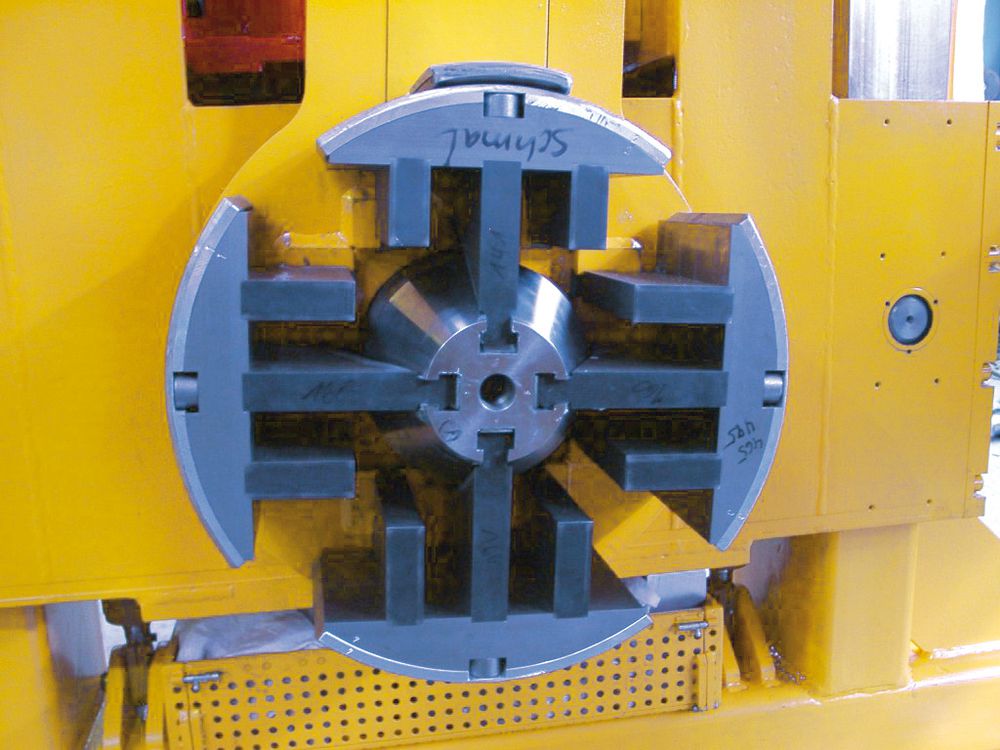

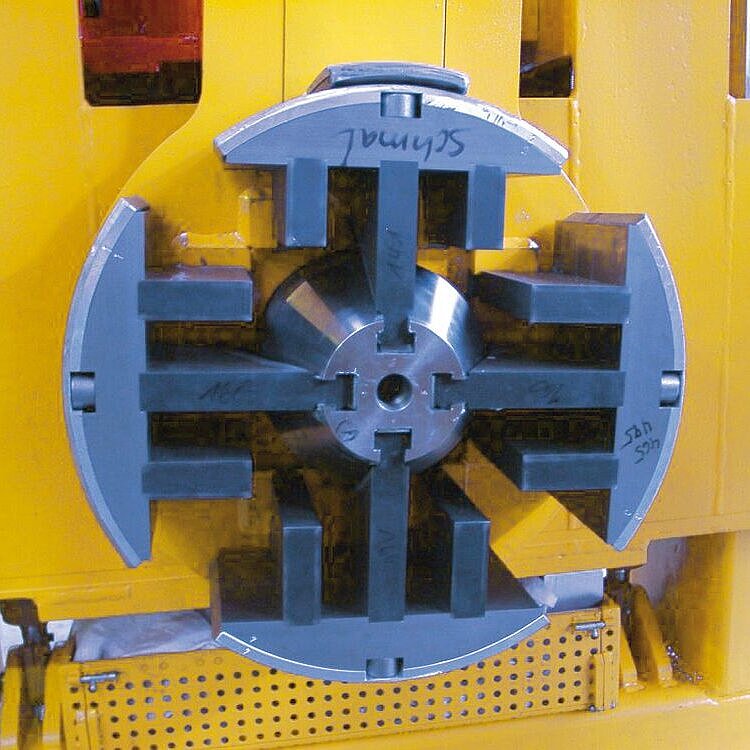

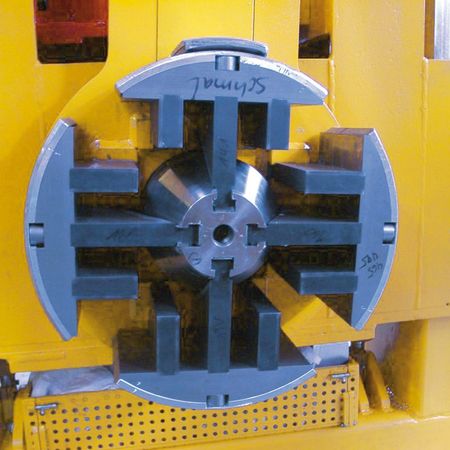

Hydraulic jaw chuck with strip end clamping
- Powerful strip clamping thanks to expandable jaw chuck
- Integrated strip end clamping for inner strip end
- Maximum process reliability during coil handling

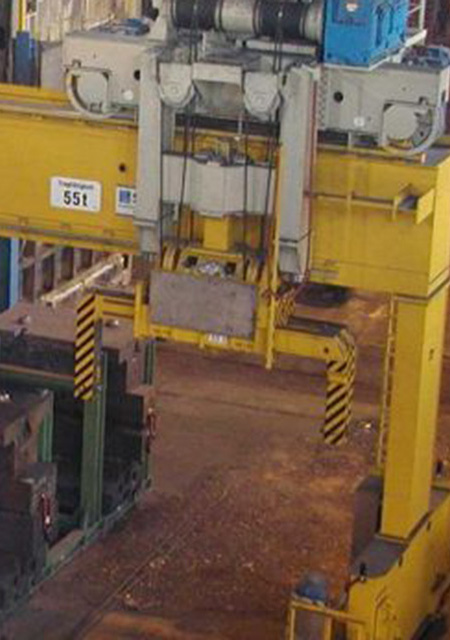

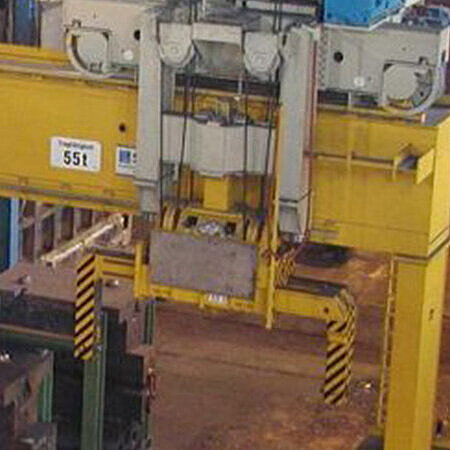

Telescopic tong for forging tolls
- Tong arms with self-locking spindle technology
- Fixation in top stroke position by centering mandrel
- Pendulum-free and precise transport

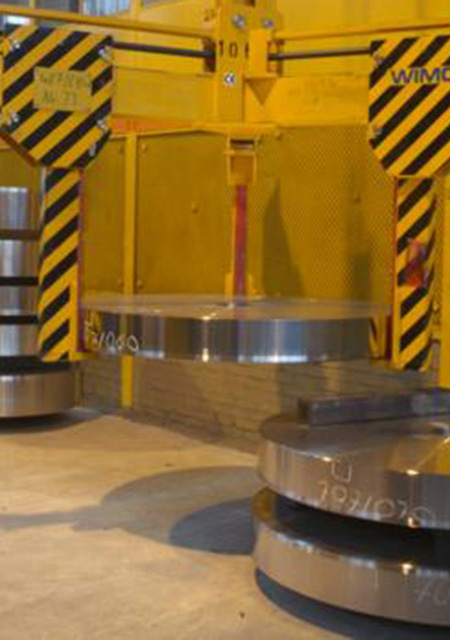

3-Arm-Tong for discs
- Manual operation via reel chain wheel and spindle drive
- Central gearbox for synchronous tong arm adjustment
- Perfect material protection thanks to replaceable plastic pads

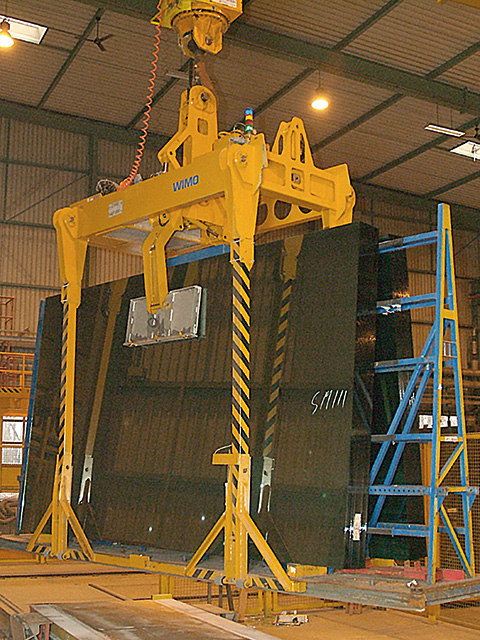

Tong for transporting frames containing glass
- Hydraulic tong arm drive with center of gravity compensation
- Safety device to prevent glass plates from tipping over
- Ideal for transporting delicate glass

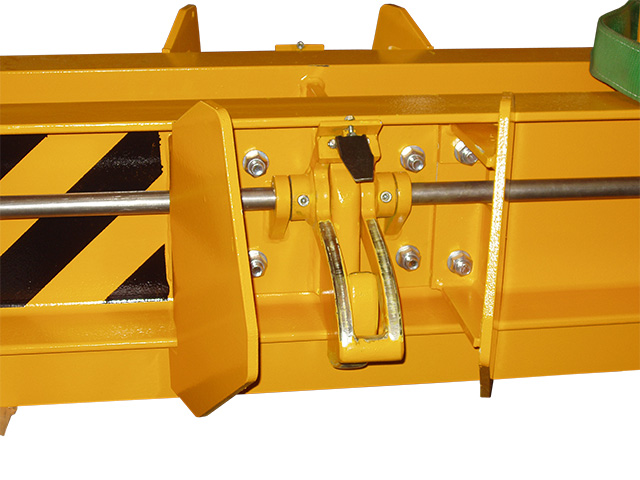

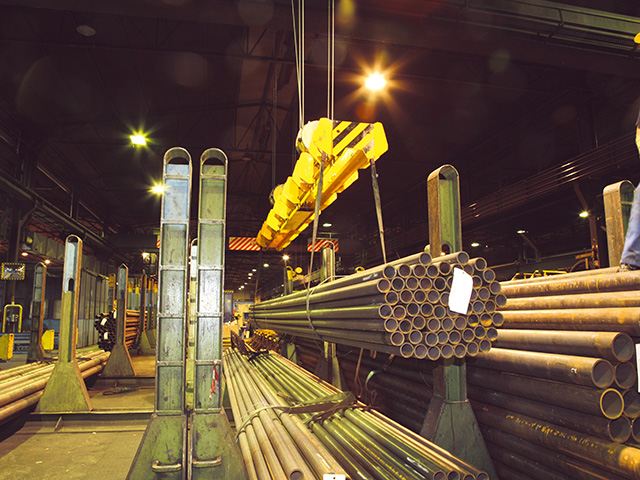

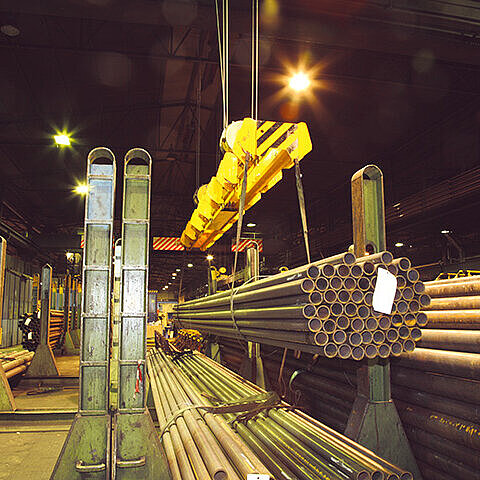

Traverse with ejection device for long goods
- Accident-proof and time-saving storage of long goods
- Optional single or double-sided ejection of slings
- Ideal for hard-to-reach storage locations or truck loading
![[Translate to English:] WIMO®-Innovation: Traverse für den unfallsicheren und rationellen Umschlag von Langgütern](/fileadmin/_processed_/e/8/csm_07_Traverse_e9a643eb12.jpg)

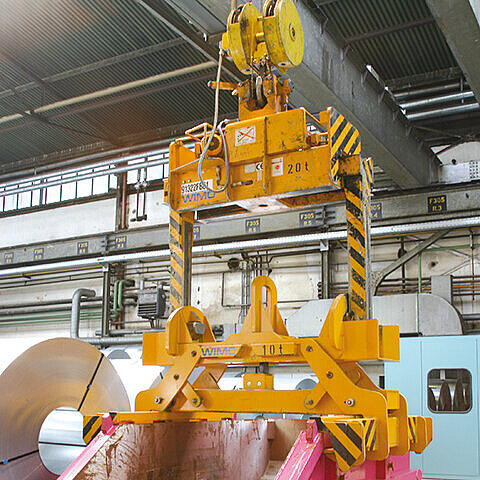

Scrap container tong with suspension adapter
- Pickup by coil tongs without manual intervention
- Time-saving thanks to adapter solution—no crane change necessary
- Ideal for frequently changing transport goods
![[Translate to English:] Schrottcontainerzange in Scherenbauweise mit Aufhängeadapter zur Aufnahme mit einer Coilzange](/fileadmin/_processed_/8/b/csm_19_Schrottcontainerzange-Scherenbauweise_696b5d98dc.jpg)

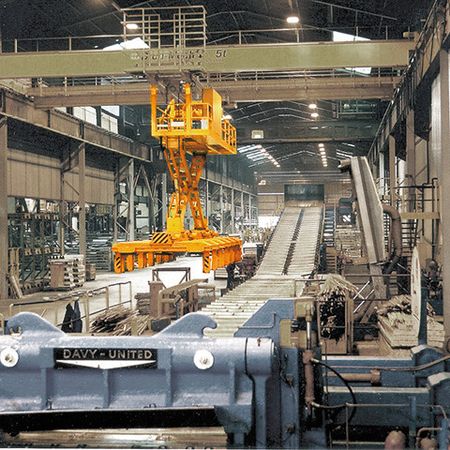

Automatic tongs for slabs and sheets
- Special design for automatic slab and sheet handling
- Precise adaptation to roller table and on-site system
- Specially designed crane connection for pendulum-free transport

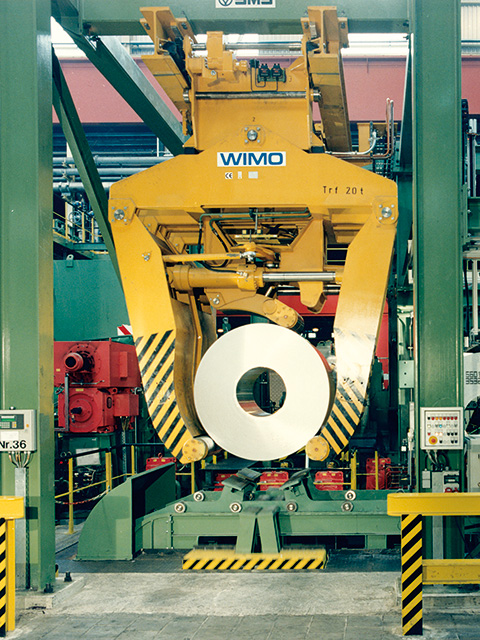

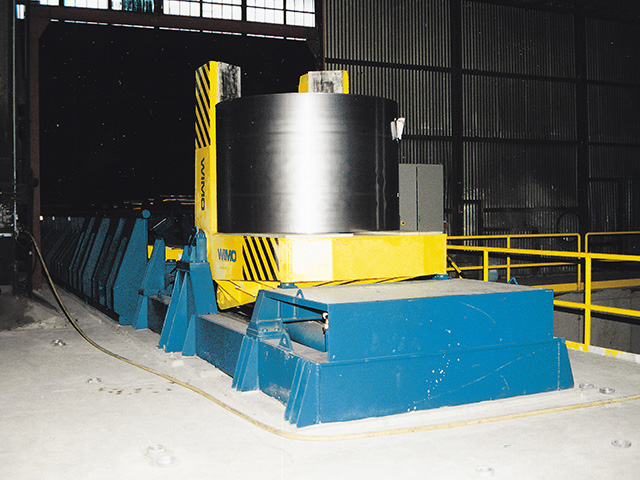

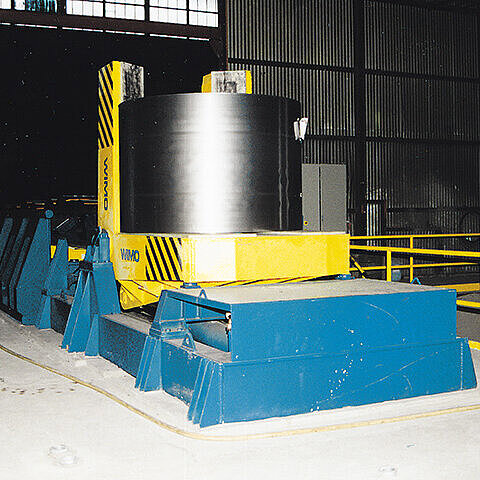

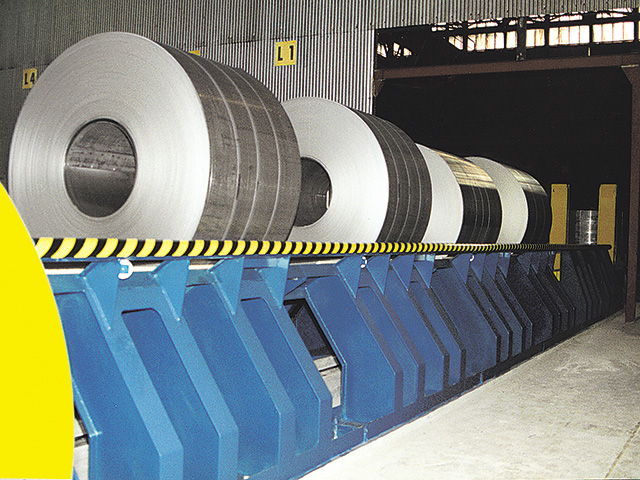

Coil tilting and transport system
- Automatic tilting of coils from vertical to horizontal
- Integrated coil lift truck for safe onward transport
- Efficient connection between annealing hall and rolling mill
![[Translate to English:] Transportanlage für den automatischen Transport und das Wenden von Coils](/fileadmin/_processed_/5/2/csm_02_Transportanlage-automatischer-Transport_827d06f0eb.jpg)

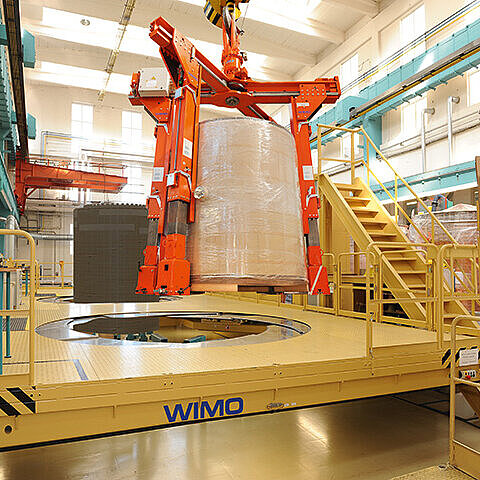

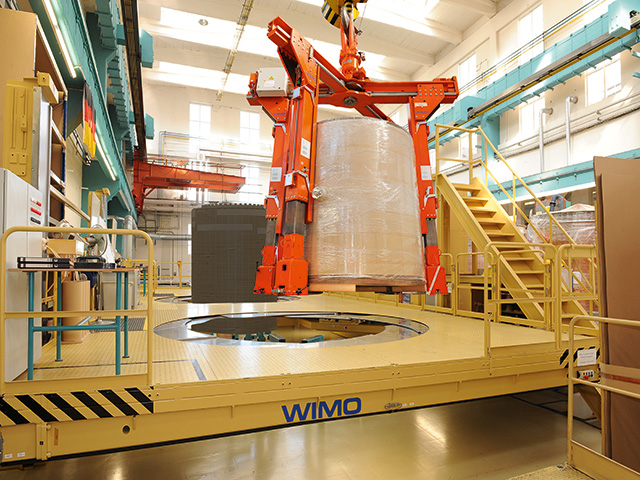

Mounting platform for transformer development
- Motor-adjustable lifting and cover units
- Minimal gap dimensions thanks to intelligent cover arrangement
- High safety and comfort factor during assembly work
In some companies, transporting heavy loads poses particular challenges. Non-standard dimensions, special material properties, or complex processes require tailor-made special solutions. WIMO® offers the perfect answer with its custom-made lifting equipment – safe, efficient, and durable.
Our special equipment ranges from coil hanging reels and automatic gripper and tong solutions to carrying crosses for transformer windings. Each product is precisely adapted to the specific application – for optimal integration into existing systems and maximum operational safety.
Typical areas of application
- Transport, positioning, and turning of goods
- Automated processes in coil handling and sheet metal processing
- Precise picking up and safe movement of transformers, containers, slabs, forged parts, and much more
Technical features (selected examples)
- Hydraulic, electromechanical, or manual drive
- Rotary, telescopic, and clamping mechanisms depending on load requirements
- Optionally available with load securing devices, contact controls, or centering mechanisms
- Integrated interfaces for crane or forklift operation
Your advantages with WIMO® special equipment
- Maximum safety for special loads
- Gentle transport of sensitive goods
- ATime savings through automation and ergonomics
- Quality and expertise from over 30 years of development experience
Do you have a special lifting requirement? Contact us—we will develop your individual special solution
