Coil hooks

Coil hooks are relatively inexpensive load-lifting devices for transporting coils. In many companies, this is still done using ropes and belts. When transporting material with coil hooks, the material does not become damaged as quickly and occupational safety for employees is also increased. Coil hooks from WIMO Hebetechnik are custom-designed for use in companies.

WIMO^® coil hooks are high-quality products that are also designed for use in heavy-duty applications. Thanks to the rounded support strips, the coils are mounted and transported with extreme care. This saves money by preventing material damage. As the load centre is labelled, it is easier for the operator to mount the coil precisely at this point. In contrast to coil hooks from many other providers, the counterweight for WIMO^® coil hooks is attached and welded to the hook block in a saddle shape – a very safe solution. The notch effect provides additional safety: The internal radii of WIMO^® coil hooks are ground without notches. Handles make it easier for the operator to mount the coils. As they are screwed in place, they are quick to replace. WIMO^® also supplies coil hooks with a patented adjustable prong pad for efficient separating of slit strips without accidents.

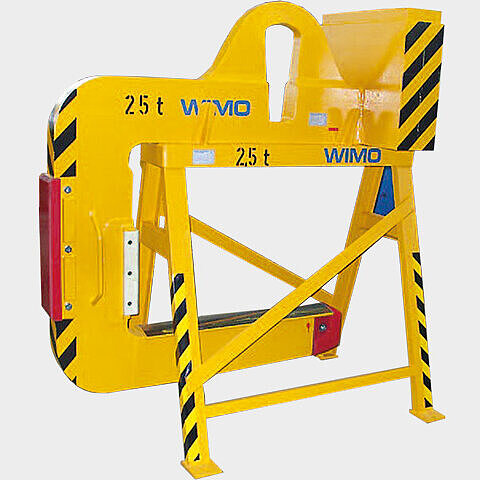

Stand

Coil hook with powered horizontal drive unit

Coil hook with counterweigth, with 3/4 prong and electromotive slewing gear for easy rotation of the coil hook around the vertical axis.

Coil hook with powered horizontal drive unit

Coil hook with counterweigth, with 3/4 prong and electromotive slewing gear for easy rotation of the coil hook around the vertical axis.

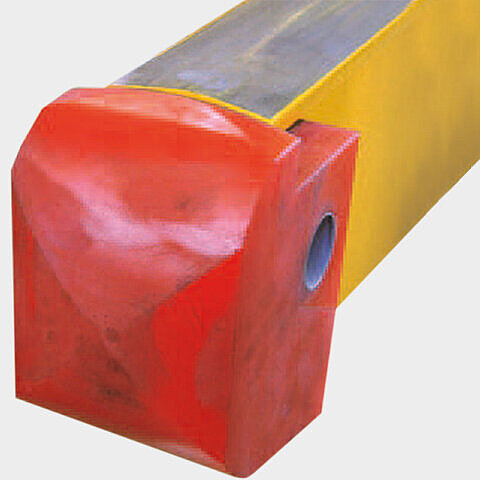

Protector at prong tip

Replaceable protective cap (protector) made of plastic at the prong tip, to protect the coil to be picked up when entering the coil eye.

Protector at prong tip

[Translate to English:] Prallschutz an Zinkenspitze

Replaceable protective cap (protector) made of plastic at the prong tip, to protect the coil to be picked up when entering the coil eye.

Safety lugs

The safety lug prevents the load from slipping off. Maximum safety during transport.

Only possible on a 4/4 prong due to the construction.

Safety lugs

The safety lug prevents the load from slipping off. Maximum safety during transport.

Only possible on a 4/4 prong due to the construction.

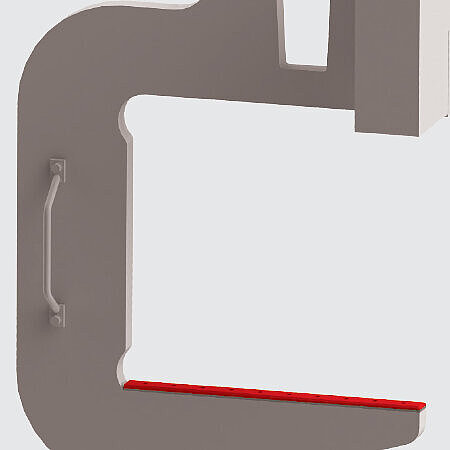

Prong layer made of synthetic material

Anti-slip prong support made of synthetic material (changeable), to protect the inner coil windings when taking up the load.

Prong layer made of synthetic material

Anti-slip prong support made of synthetic material (changeable), to protect the inner coil windings when taking up the load.

Safety lugs

The safety lug prevents the load from slipping off. Only possible on a 4/4 prong due to the construction.

Safety lug firmly welded or screwed on (changeable).

Safety lugs

The safety lug prevents the load from slipping off. Only possible on a 4/4 prong due to the construction.

Safety lug firmly welded or screwed on (changeable).

Stop plate made of synthetic material

Stop plate made of synthetic material (changeable), to protect the end face of the coil when picking up and setting down the load.

Stop plate made of synthetic material

Stop plate made of synthetic material (changeable), to protect the end face of the coil when picking up and setting down the load.

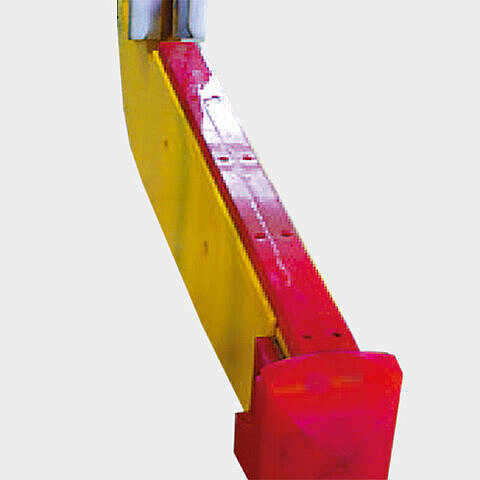

Synthetic prong support

Anti-slip prong support made of synthetic material (changeable) and plastic protective cap (protector) at the tip of the prong, to protect the inner coil windings when taking up the load.

Synthetic prong support

Anti-slip prong support made of synthetic material (changeable) and plastic protective cap (protector) at the tip of the prong, to protect the inner coil windings when taking up the load.

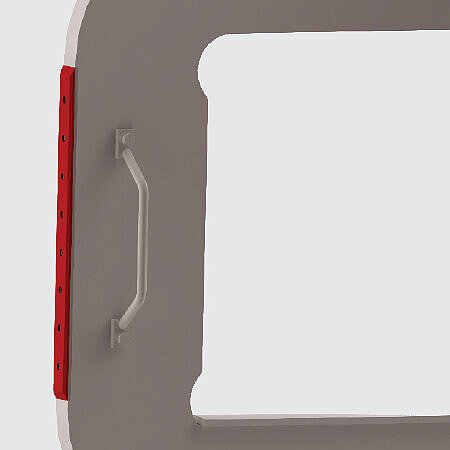

Protector on the back of the hook made of synthetic material

Plastic back protection on the outside (changeable), to protect the coils next to it.

Protector on the back of the hook made of synthetic material

Plastic back protection on the outside (changeable), to protect the coils next to it.

Hinged approching plate made of steel or synthetic

Approaching plate made of steel or synthetic on the vertical inside of the hook, hinged to the side and suspended vertically.

Optimum protection of coil sides during lifting and deposting operations.

Hinged approching plate made of steel or synthetic

Approaching plate made of steel or synthetic on the vertical inside of the hook, hinged to the side and suspended vertically.

Optimum protection of coil sides during lifting and deposting operations.

Protector on the back of the hook and the underside of the coil hook made of plastic

Outside back and underside protection made of plastic - protective coating (changeable), to protect coils lying next to it.

Protector on the back of the hook and the underside of the coil hook made of plastic

Outside back and underside protection made of plastic - protective coating (changeable), to protect coils lying next to it.

Protector on back of the hook

Plastic back protection on the outside (changeable) to protect the coils next to it.

Protector on back of the hook

Plastic back protection on the outside (changeable) to protect the coils next to it.

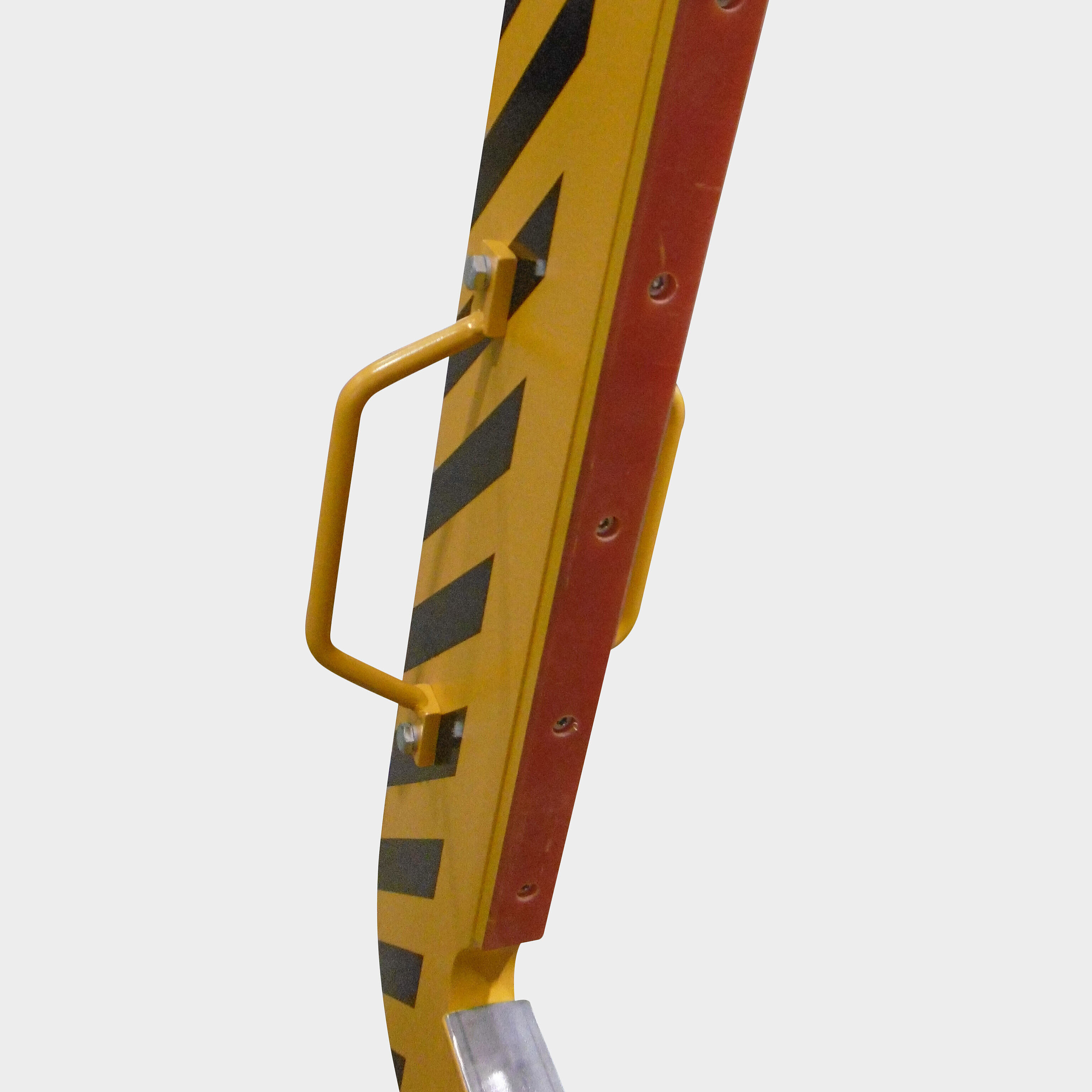

Synthetic approach plate on steel support plate

Plastic approach plate - protective coating (changeable), to protect the end face of the coil when picking up and setting down the load.

Synthetic approach plate on steel support plate

Plastic approach plate - protective coating (changeable), to protect the end face of the coil when picking up and setting down the load.
